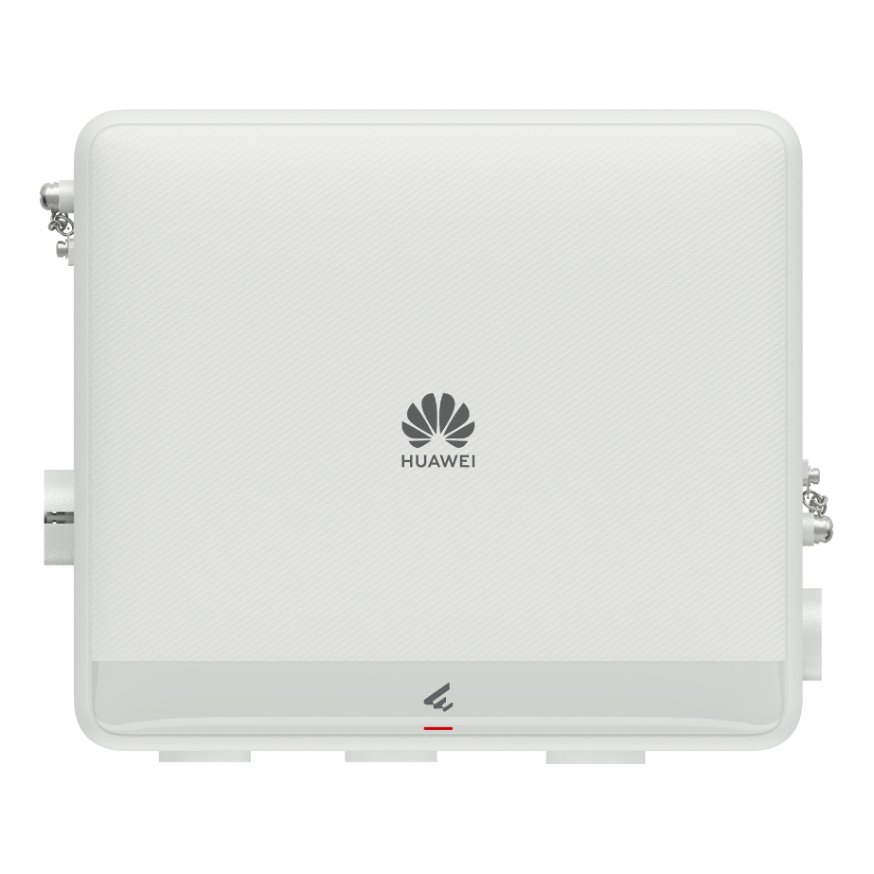

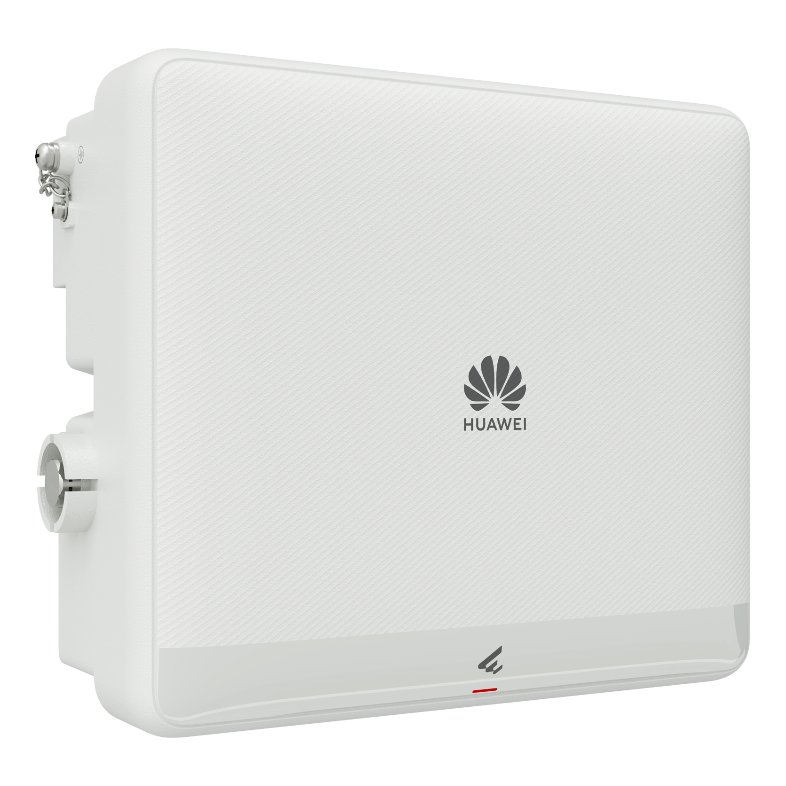

Huawei eKitEngine AP772 Outdoor Wi-Fi 7 Access Point, 6.45 Gbps
Huawei eKitEngine AP772 Outdoor Wi-Fi 7 Access Point, 6.45 Gbps من منتجات نقطة وصول لاسلكية. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
A Huawei eKit enterprise Wi-Fi access point for offices, hotels, shops, schools and outdoor areas, with cloud management through the HUAWEI eKit app.
- Outdoor AP
- Wi-Fi 7
- 6.45 Gbps device rate
- Dual-radio
- 130 access users recommended
عام
| الموديل | AP772 |
|---|
Key Features
- Outdoor AP
- Wi-Fi 7
- 6.45 Gbps device rate
- Dual-radio
- 130 access users recommended
- Max. 1024 access users
- 30 dBm transmit power
Best Fit Applications
Offices, hotels, retail, schools, clinics, warehouses and public areas.
Technical Specifications
| Model | AP772 |
|---|---|
| Part Number | 50088137 |
| Wi-Fi standard | 2.4 GHz: 802.11b/g/n/ax/be 5 GHz:802.11a/n/ac/ac Wave 2/ax/be |
| Installation Type | Wall, Pole |
| Optimal Signal Distance (m) | 140 |
| Max Number of Access Users | 1024 |
| Recommended Number of Access Users | 130 |
| Device Rate | 6.45 Gbps |
| Maximum number of physical ports on the entire device | 2.5GE (RJ45) x 1, 100M/1000M/2500M auto-sensing 10GE optical (SFP+), GE/2.5GE/10GE auto-sensing |
| Radio number | 2 |
| Maximum channel bandwidth [MHz] | Radio 0 (2.4 GHz): 40 MHz Radio 1 (5 GHz): 160 MHz |
| Maximum transmit power | 2.4 GHz: 25 dBm/chain 28 dBm (combined power) 5 GHz: 24 dBm/chain 30 dBm (combined power) |
| MIMO spatial streams | Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 4x4 |
| Maximum power consumption [W] | 20.4 (excluding USB) |
| Input voltage range [V] | DC: 43.2 V to 57.6 V PoE: 802.3bt/at/af |
| Dimensions without packaging (H x W x D) [mm(in.)] | 92 mm x 250 mm x 220 mm (3.62 in. x 9.84 in. x 8.66 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 185 mm x 555 mm x 370 mm (7.28 in. x 21.85 in. x 14.57 in.) |
| Weight without packaging [kg(lb)] | 2.89 kg (6.37 lb) |
| Weight with packaging [kg(lb)] | 5.42 kg (11.95 lb) |
| Long-term operating temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
| Long-term operating relative humidity [RH] | Operating humidity: 0% RH to 100% RH Storage humidity: 5% RH to 95% RH (non-condensing) |
| Radio interface | Built-in omnidirectional antennas |
| Antenna gain | 2.4 GHz: 5 dBi/chain (peak value) 3 dBi (combined gain) 5 GHz: 5 dBi/chain (peak value) 3 dBi (combined gain) |
| Operating frequency band | 2.4GHz, 5GHz |
| Ingress protection level (dustproof/waterproof) | IP68 |
| Power supply mode | PoE, DC power adapter |
| Rated input voltage [V] | DC: 48 V PoE: 802.3bt/at/af |
