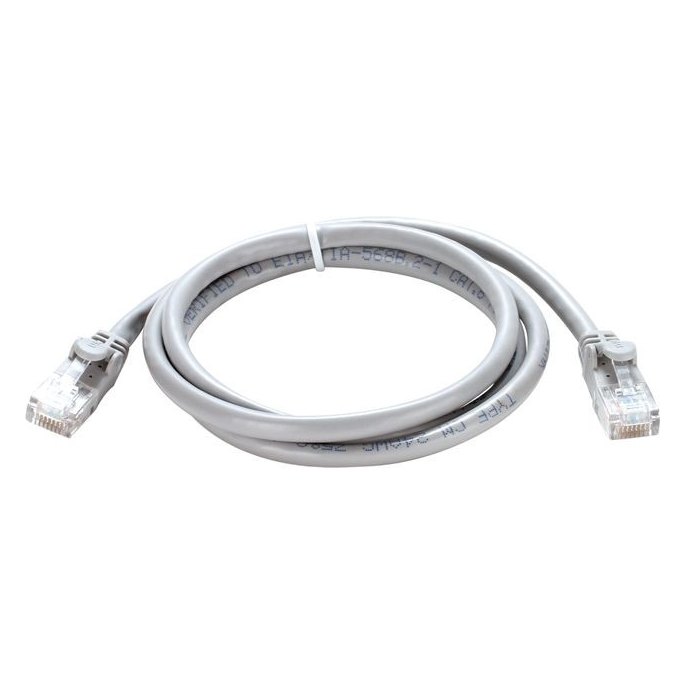

D-Link NCB-6AUGRYR1-1 UTP Patch Cord 1M CAT6A
D-Link NCB-6AUGRYR1-1 UTP Patch Cord 1M CAT6A من منتجات مكون شبكات سلبية. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
A D-Link copper patch cord for connecting network devices, patch panels and outlets.
- UTP Patch Cord 1M CAT6A
- Feature: Specification
- Category: Cat6A
- Cable Construction: 4 Pairs Unshielded Twisted Pair (UTP)
عام
| الموديل | NCB-6AUGRYR1-1 |
|---|
Key Features
- UTP Patch Cord 1M CAT6A
- Feature: Specification
- Category: Cat6A
- Cable Construction: 4 Pairs Unshielded Twisted Pair (UTP)
Best Fit Applications
Offices, homes, CCTV and network installation projects.
Technical Specifications
| Model | NCB-6AUGRYR1-1 |
|---|---|
| Feature | Specification |
| Product Type | Cat6A UTP Patch Cord |
| Category | Cat6A |
| Cable Construction | 4 Pairs Unshielded Twisted Pair (UTP) |
| Length | 1 Meter |
| Conductor | Bare Copper |
| Conductor Size | 24 AWG |
| Color | Grey |
| Insulation Material | HD-PE |
| Jacket Material | PVC |
| Connector Type | RJ-45 8P Modular Plug |
| Connector Color | Transparent |
| Contact Plating | 50U Gold Plated |
| Contact Blade | Copper Alloy |
| Operating Temperature | 10°C to 80°C |
| Dielectric Withstanding Voltage | 1000V AC |
| Insulation Resistance | 500MΩ Minimum |
| Connector Durability | 750 Matching Cycles |
| Cable-to-Plug Tensile Strength | 20 lbs (89N) Minimum |
| Plug Material | Polycarbonate (PC) UL94-V-2 |
| UL Application Rating | 125V AC, 1.5A @ 25°C |
| Standards | TIA/EIA-568B.2 / TIA/EIA-568.2-D |
![[DPE-301GI] D-Link DPE-301GI Gigabit PoE+ Injector](/web/image/product.template/2895/image_512)
![[DPE-302GE] D-Link DPE-302GE 2-Port Gigabit PoE Extender](/web/image/product.template/2896/image_512)
![[NCB-6ASGRYR1-1-LS] D-Link NCB-6ASGRYR1-1-LS Cat6A Shielded 26AWG LSZH Patch Cord 1M](/web/image/product.template/3338/image_512)
![[NCB-6AUGRYR1-3] D-Link NCB-6AUGRYR1-3 UTP Patch Cord 3M Cat6A](/web/image/product.template/3342/image_512)
![[NCB-C6UGRYR1-1] D-Link NCB-C6UGRYR1-1 0 UTP Patch Cord 10M cat6](/web/image/product.template/3351/image_512)
![[NCB-C6UGRYR1-10] D-Link NCB-C6UGRYR1-10 UTP Patch Cord 10M cat6](/web/image/product.template/3352/image_512)
![[NCB-C6UGRYR1-15] D-Link NCB-C6UGRYR1-15 UTP Patch Cord 15M cat6](/web/image/product.template/3353/image_512)

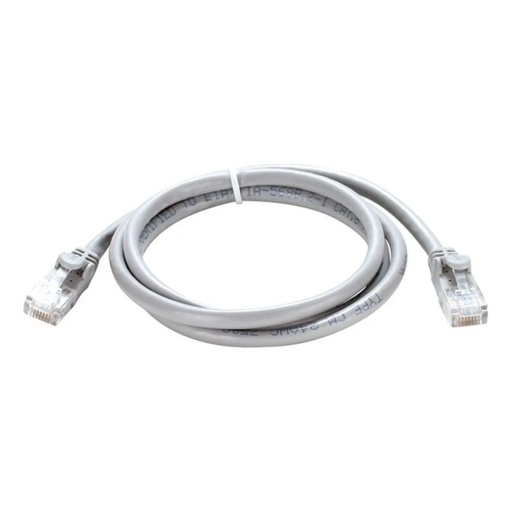

![[NCB-C6UGRYR1-2] D-Link NCB-C6UGRYR1-2 UTP Patch Cord 2M cat6](/web/image/product.template/3354/image_512)
