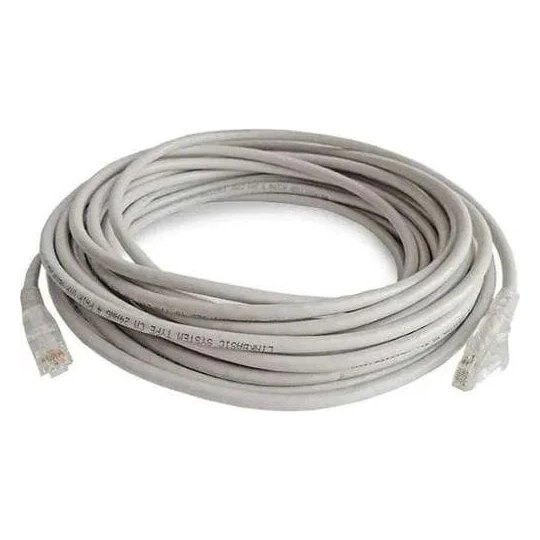

D-Link NCB-C6UGRYR1-10 UTP Patch Cord 10M cat6
D-Link NCB-C6UGRYR1-10 UTP Patch Cord 10M cat6 من منتجات مكون شبكات سلبية. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
A D-Link copper patch cord for connecting network devices, patch panels and outlets.
- UTP Patch Cord 10M cat6
- Feature: Specification
- Cable Category: Cat6
- Cable Type: UTP
عام
| الموديل | NCB-C6UGRYR1-10 |
|---|
Key Features
- UTP Patch Cord 10M cat6
- Feature: Specification
- Cable Category: Cat6
- Cable Type: UTP
Best Fit Applications
Offices, homes, CCTV and network installation projects.
Technical Specifications
| Model | NCB-C6UGRYR1-10 |
|---|---|
| Feature | Specification |
| Product Type | Cat6 UTP Patch Cord |
| Cable Category | Cat6 |
| Cable Type | UTP |
| Cable Length | 10 Meters |
| Conductor | Bare Copper |
| Conductor Size | 24AWG |
| Number of Pairs | 4 Pairs |
| Cable Construction | Unshielded Twisted Pair |
| Insulation Material | HD-PE |
| Jacket Material | PVC UL94V-0 |
| Cable Color | Gray |
| Connector Type | RJ-45 8P |
| Contact Blade | Phosphor Bronze |
| Contact Plating | 30µ” Gold Plated |
| Durability | 750 Matching Cycles |
| Cable-to-Plug Tensile Strength | 20 lbs / 89N Minimum |
| Dielectric Withstanding Voltage | 500V AC |
| Insulation Resistance | 35MΩ Maximum |
| Operating Temperature | 10°C to 80°C |
| Ethernet Support | 10BASE-T, 100BASE-TX, 1000BASE-T |
| PoE Support | Yes |
| Maximum Data Rate | 1Gbps |
