كود المنتج:
Saturn-T1000

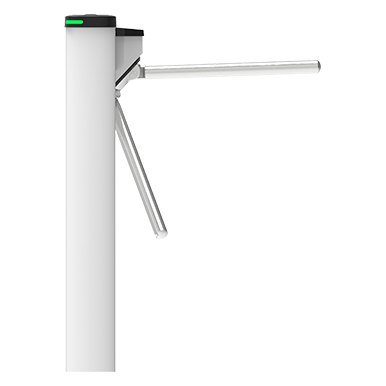

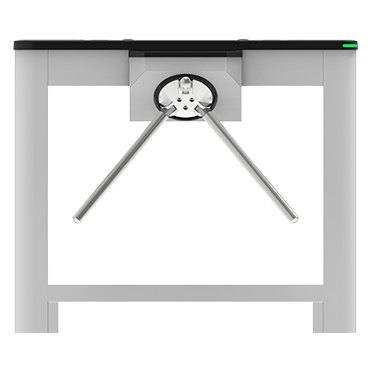

ZKTeco Saturn-T1000 Drop Arm Tripod Turnstile
ZKTeco Saturn-T1000 Drop Arm Tripod Turnstile من منتجات بوابة مرور أفراد. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
The Saturn-T1000 is a value-driven drop arm tripod turnstile designed for secure and efficient access control in public and commercial areas. Its cabinet is constructed from cold-rolled SPCC steel (GB700) with powder coating, paired with the SUS304 stainless steel tripod arm to maximize durability.
- Audio Indicator: Buzzer
- Visual Indicator: LED Indicator / Blue: Standby / Green: Access Granted / Red: Alarm / Error
- Lane Type: Single lane / (Support bi-directional entry / exit lane)
- Barrier Movement Type: Rotating (Tripod)
- Lane Width: 550 mm
عام
| الموديل | Saturn-T1000 |
|---|
Key Features
- Audio Indicator: Buzzer
- Visual Indicator: LED Indicator / Blue: Standby / Green: Access Granted / Red: Alarm / Error
- Lane Type: Single lane / (Support bi-directional entry / exit lane)
- Barrier Movement Type: Rotating (Tripod)
- Lane Width: 550 mm
- Motor: Not specified
Best Fit Applications
Factories, stadiums, schools, offices and public entrances.
Technical Specifications
| Model | Saturn-T1000 |
|---|---|
| Audio Indicator | Buzzer |
| Visual Indicator | LED Indicator / Blue: Standby / Green: Access Granted / Red: Alarm / Error |
| Lane Type | Single lane / (Support bi-directional entry / exit lane) |
| Barrier Movement Type | Rotating (Tripod) |
| Lane Width | 550 mm |
| Motor | Not specified |
| Lid Material | Polycarbonate + 2.5D tempered glass |
| Lid Options Authentication Methods | RFID / Facial Recognition / QR code (Dynamic / Static) |
| Chassis Material | Cold-rolled SPCC Steel (GB700) (with powder coating finishing) |
| Chassis Color | Pearl White (PWH) |
| Tripod Rod Materia | SUS304 Stainless Steel |
| Motherboard Function | System mode configuration. Access mode configuration |
| Motherboard Communication | Fire alarm Port (Relay)*1, RS485 port *1 |
| Controller | Access controller Options: C3, InBio series or third-party controller subject to turnstile chassis space |
| Credential Options | Post mount Facial Recognition Device: G4 Pro / Under mount QR code Reader: QR500 / Under mount RFID Reader: ProID10 |
| Flow Rate | Face: 15 Passengers per minute / RFID: 25 Passengers per minute / QR code: 25 Passengers per minute |
| Power Supply | AC 110V~220V, 50/60Hz, DC 12V |
| Power Rating | Operating: 40W, Standby: 10W |
| Fire Signal | Input for voltage-free contact |
| Noise Level | < 65 dB |
| Weight | 25 kg |
| Dimensions ( L*W*H ) | 1200 * 734 * 1020 mm |
| Dimensions of Product Parts with Packaging ( L*W*H ) | 1300 * 305 *1106 mm |
| Operating Temperature | -20°C to 70°C |
| Ingress Protection Rating | Self-laboratory test: equivalent to IPX4 |
| Operating Humidity | 20% to 80% RH (Non-condensing) |
| Supported Software | ZKBio CVAccess / ZKBio CVSecurity (Compatible with software only when connected to the control panel) |
| Safety Features | Auto drop arm during power failure and re alarm emergency |
| Security Features | Anti-tailgating |

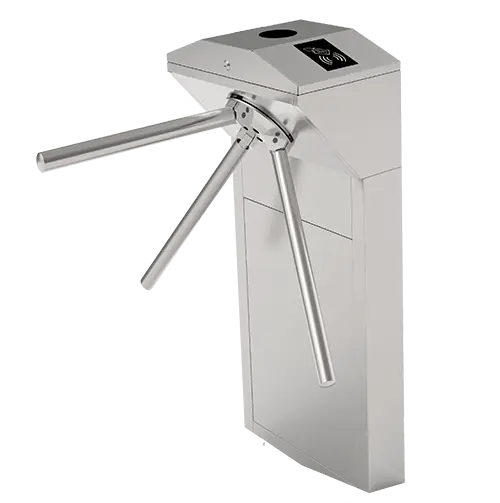

![[TS1000 Pro] ZKTeco Tripod Turnstile](/web/image/product.template/558/image_512)

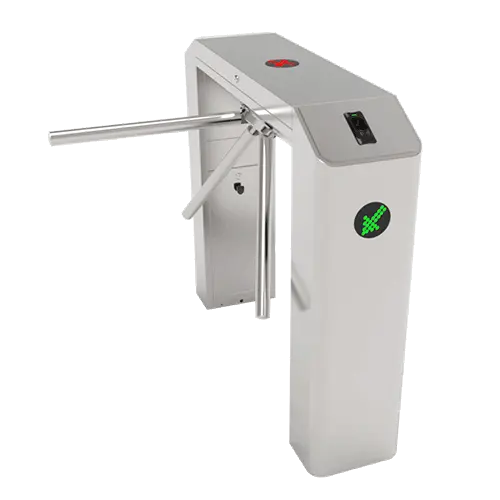

![[TS2000 Pro] ZKTeco Tripod Turnstile](/web/image/product.template/571/image_512)

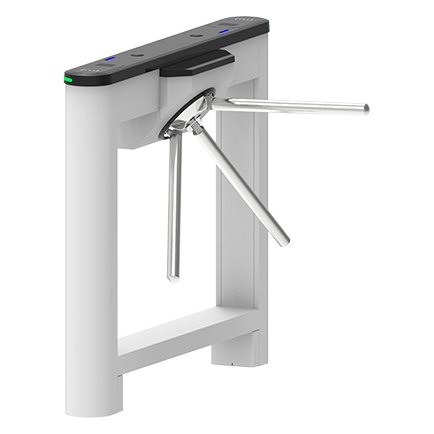

![[Saturn-T1000] ZKTeco Saturn-T1000 Drop Arm Tripod Turnstile](/web/image/product.template/3078/image_256)
