كود المنتج:
Saturn-S2200

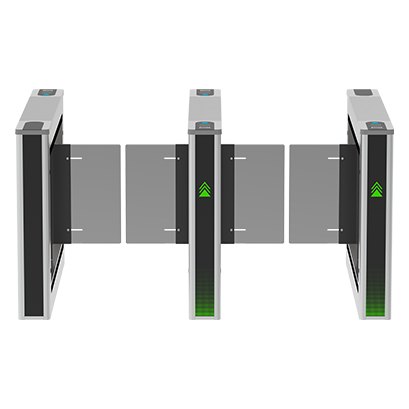

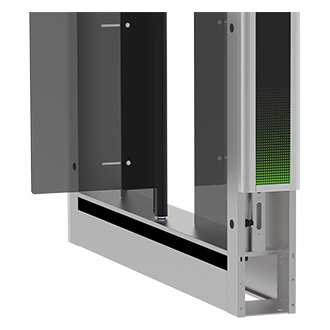

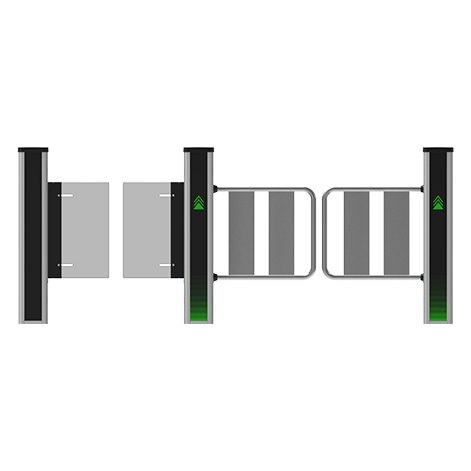

ZKTeco Saturn-S2200 Swing Barrier Turnstile (dual swing, slave for additional lane)
ZKTeco Saturn-S2200 Swing Barrier Turnstile (dual swing, slave for additional lane) من منتجات بوابة مرور أفراد. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
A ZKTeco pedestrian turnstile for fast, controlled entry with card, QR, fingerprint or face authentication.
- Audio Indicator: Internal speaker
- Lane Type: Dual Swing (for additional lane)
- Barrier Movement Type: Swing
- Motor: DC brushless motor
- Movement Speed: Average 1s per movement (Adjustable open/close timing)
عام
| الموديل | Saturn-S2200 |
|---|
Key Features
- Audio Indicator: Internal speaker
- Lane Type: Dual Swing (for additional lane)
- Barrier Movement Type: Swing
- Motor: DC brushless motor
- Movement Speed: Average 1s per movement (Adjustable open/close timing)
- Clutch: Equipped
Best Fit Applications
Office buildings, metro stations, universities, gyms, factories and lobbies.
Technical Specifications
| Model | Saturn-S2200 |
|---|---|
| Audio Indicator | Internal speaker |
| Visual Indicator | Blue=Door closed/stand by / Green=Door opening / Red=Door closing/alarm / Green=Lane available / Red=Lane unavailable |
| Lane Type | Dual Swing (for additional lane) |
| Lane Width | 600~900mm (Optional) (Acrylic) / Maximum 1200mm (Optional) (Stainless steel) (For two-wheeled motorcycle access) |
| Barrier Movement Type | Swing |
| Motor | DC brushless motor |
| Movement Speed | Average 1s per movement (Adjustable open/close timing) |
| Clutch | Equipped |
| Movement Accuracy | Middle |
| Lid Material | Stainless steel & Polycarbonate |
| Lid Options Authentication Methods | Streamlined under mount options: QR Code / RFID / Surface mount option: Facial Authentication |
| Chassis Material | Stainless steel (SUS304) (Chassis Body) / Aluminum Alloy (Gate Column) |
| Chassis Colour | Gray (Standard) |
| Barrier Material | Light gray transparent acrylic (305*555*10mm) (standard) /Light gray transparent acrylic (380*555*10mm) (optional) When the lane width is 900-1200mm, stainless steel barriers are required. |
| IR Sensors | 12 pairs (standard) ;18 pairs (Optional) |
| Motherboard Function | System configuration, access control |
| Motherboard Communication | Fire alarm port (relay)*1, RS485 port*1 |
| Controller | Compatible with C3 / InBio Series or 3rd-party controller |
| Credential Options | Under mount RFID reader: (support model: Pro ID Series, KR Series) / Under mount fingerprint reader: FR1200 / FR1500S |
| Flow Rate | Facial Authentication: 15 passengers per minute / QR Code: 30 passengers per minute / RFID: 35 passengers per minute |
| Accessibility | Adult, children (with care), Disability (with care) |
| Power Supply | 110V / 220V ±10% AC @50Hz/60Hz |
| Power Rating | 20VA (Standby) / 40VA (Operation) |
| Fire Signal | Input for voltage free contact |
| Noise Level | Less than 60dB |
| MTTR | Less than 60 minutes |
| MCBF | 5 million |
| Weight | 60Kg (Net weight); 100Kg (Gross weight) |
| Dimension (L*W*H) | 1500*180*1020mm |
