كود المنتج:
XL600-CPR-B

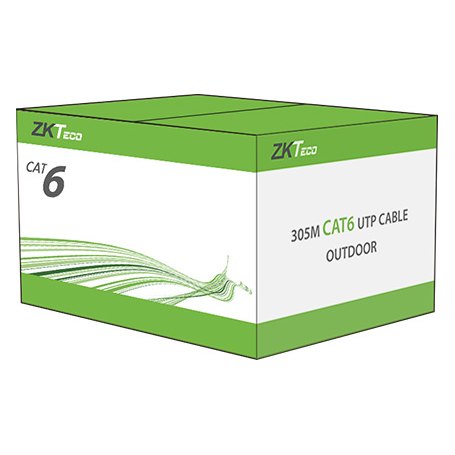

ZKTeco XL600-CPR-B CAT6 Network Cable
ZKTeco XL600-CPR-B CAT6 Network Cable من منتجات كابل شبكات. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
ZKTeco CAT6 network cable for data, IP camera and access control installations.
- Material: Oxygen-free copper (99.99% purity)
- Diameter: 1/0.56mm (0.55mm±0.01)
- American Wire Gauge: 23AWG
- Material: HDPE
- Min. Average Thickness: 0.21 mm
عام
| الموديل | XL600-CPR-B |
|---|
Key Features
- Material: Oxygen-free copper (99.99% purity)
- Diameter: 1/0.56mm (0.55mm±0.01)
- American Wire Gauge: 23AWG
- Material: HDPE
- Min. Average Thickness: 0.21 mm
- Diameter: 1mm ± 0.05 mm
Best Fit Applications
Network, CCTV and access control cabling in buildings.
Technical Specifications
| Model | XL600-CPR-B |
|---|---|
| Material | Oxygen-free copper (99.99% purity) |
| Diameter | 1/0.56mm (0.55mm±0.01) |
| American Wire Gauge | 23AWG |
| Material | HDPE |
| Min. Average Thickness | 0.21 mm |
| Diameter | 1mm ± 0.05 mm |
| Color (4 Pairs) | Blue, white / blue; orange, white / orange; green, white / green; brown, white / brown |
| Material | PE |
| Specification | Translucent 4.5×0.4 mm |
| Material | Polyester |
| Specification | 500D |
| Material | Customized water-blocking outer sheath |
| Min. Average Thickness | 0.43 mm |
| Color | Black (optional) |
| Diameter | 6.3 mm ± 0.5 mm |
| Max. DC Resistance of a Single Conductor | 9.38Ω/100 m |
| Min. Insulation Resistance | 5000MΩ·km |
| Max. DC Resistance Unbalance | ≤5% |
| Dielectric Strength | No breakdown with 1KV DC for 1 min |
| Characteristic Impedance (1-250MHz) | 100 ± 15Ω |
| Tensile Strength | Sheath≥10 MPa, insulation≥16 MPa |
| Elongation at Break | Sheath≥125%, insulation≥300% |
| Installation Bending Radius | >8 times of outer cable diameter |
| Conductor Elongation at Break | ≥10% |
| Shrinkage of Insulation | ≤5% |
| Color Migration Resistance of Insulation | No migration |
| Sheath Tensile Strength and Elongation at Break after Aging | ≥8 MPa, ≥100% |
| Low Temperature Bending Test | No cracking after the test |
| Heat Shock Test | No cracking after the test |
