كود المنتج:
ZKB101S

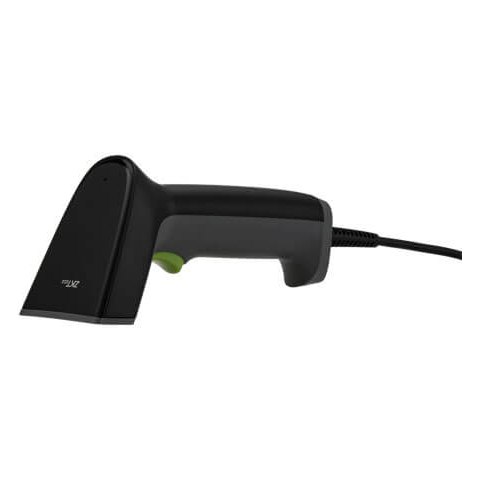

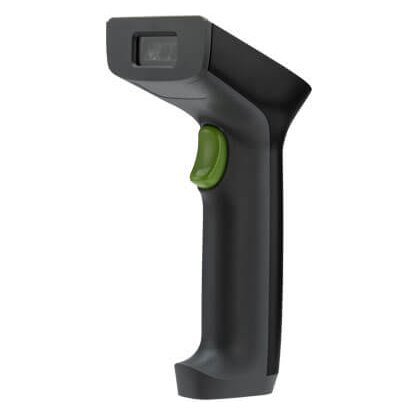

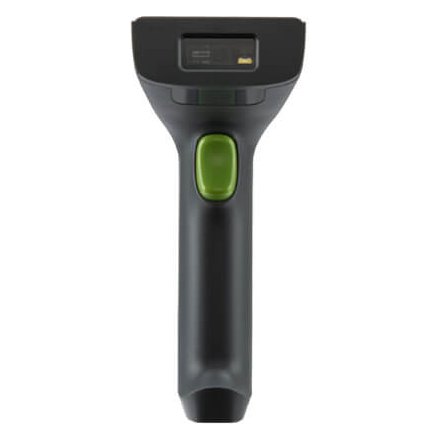

ZKTeco ZKB101S 1D Barcode Scanner
ZKTeco ZKB101S 1D Barcode Scanner من منتجات معدات نقاط البيع. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
ZKTeco retail equipment for point of sale systems in shops, restaurants and supermarkets.
- Dimension: 167.3*70.5*81.5 (mm) (L*W*H)
- Weight: 130g
- Voltage & Current: 5 VDC Operating: 90mA (Standby: 30mA)
- Color: Black and Gray (White, optional)
- User Indicators: Decode LED Indicator; Beeper(adjustable tone and volume)
عام
| الموديل | ZKB101S |
|---|
Key Features
- Dimension: 167.3*70.5*81.5 (mm) (L*W*H)
- Weight: 130g
- Voltage & Current: 5 VDC Operating: 90mA (Standby: 30mA)
- Color: Black and Gray (White, optional)
- User Indicators: Decode LED Indicator; Beeper(adjustable tone and volume)
- Scan Mode: Manual Reading Mode
Best Fit Applications
Shops, supermarkets, restaurants, cafes and pharmacies.
Technical Specifications
| Model | ZKB101S |
|---|---|
| Dimension | 167.3*70.5*81.5 (mm) (L*W*H) |
| Weight | 130g |
| Voltage & Current | 5 VDC Operating: 90mA (Standby: 30mA) |
| Color | Black and Gray (White, optional) |
| User Indicators | Decode LED Indicator; Beeper(adjustable tone and volume) |
| Scan Mode | Manual Reading Mode |
| Light Source | 620nm laser diode |
| Scan Speed | 300 scans/second Max |
| Scanning Speed | 300 scans/second Max |
| Minimum Print Contrast | 25% |
| Roll Tolerance | ±30° |
| Pitch Tolerance | ±60° |
| Skew Tolerance | ±60° |
| Decode Capability | 1D: UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, ISBT 128, Code 39, Code 93, Code 11, / Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5 (IATA), Codabar (NW-7) |
| Operating Temperature | -20°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Humidity | 5% to 95% relative humidity, non-condensing |
| Electrostatic Discharge (ESD) | ±2KV Direct; ±8KV Air |
| Ambient Light Immunity | 5000 Lux Max |
| Symbology / Resolution | Near / Far |
| Code 39: 4 mil | 3 cm to 10 cm |
| Code 39: 5 mil | 3 cm to 13 cm |
| Code 39: 13 mil | 4 cm to 30 cm |
| Code 39: 20 mil | 6 cm to 40 cm |
| EAN-13: 13 mil | 3 cm to 30 cm |
| UPC-A: 13 mil | 3 cm to 30 cm |
