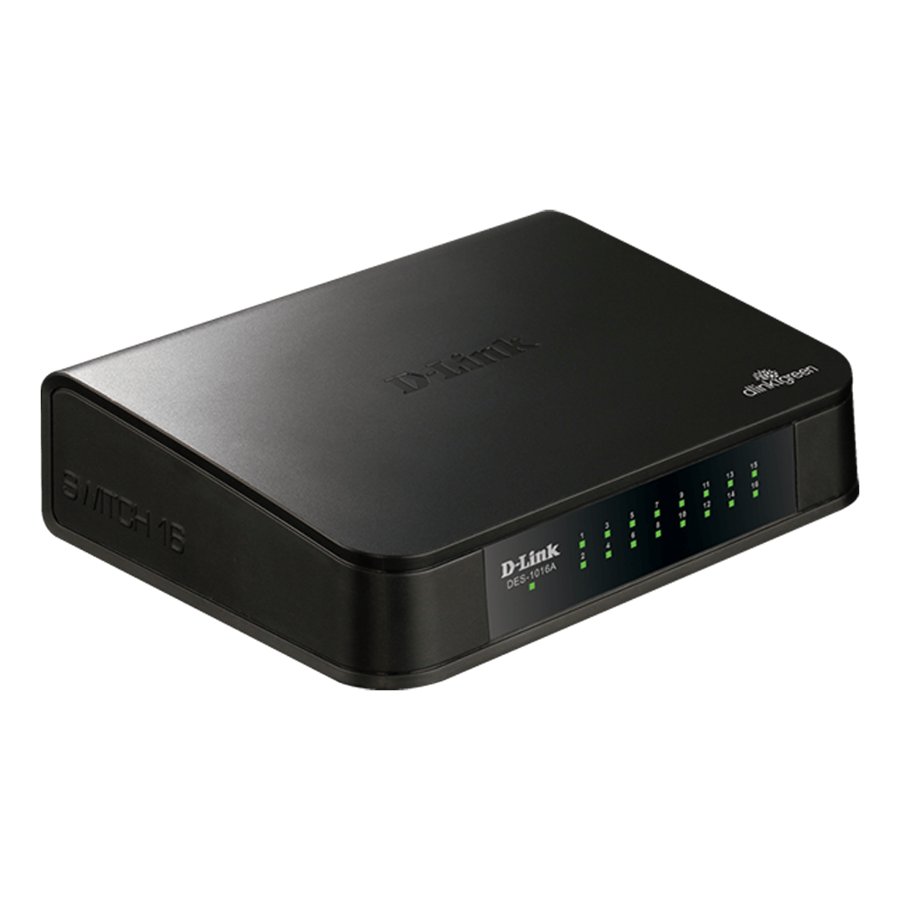

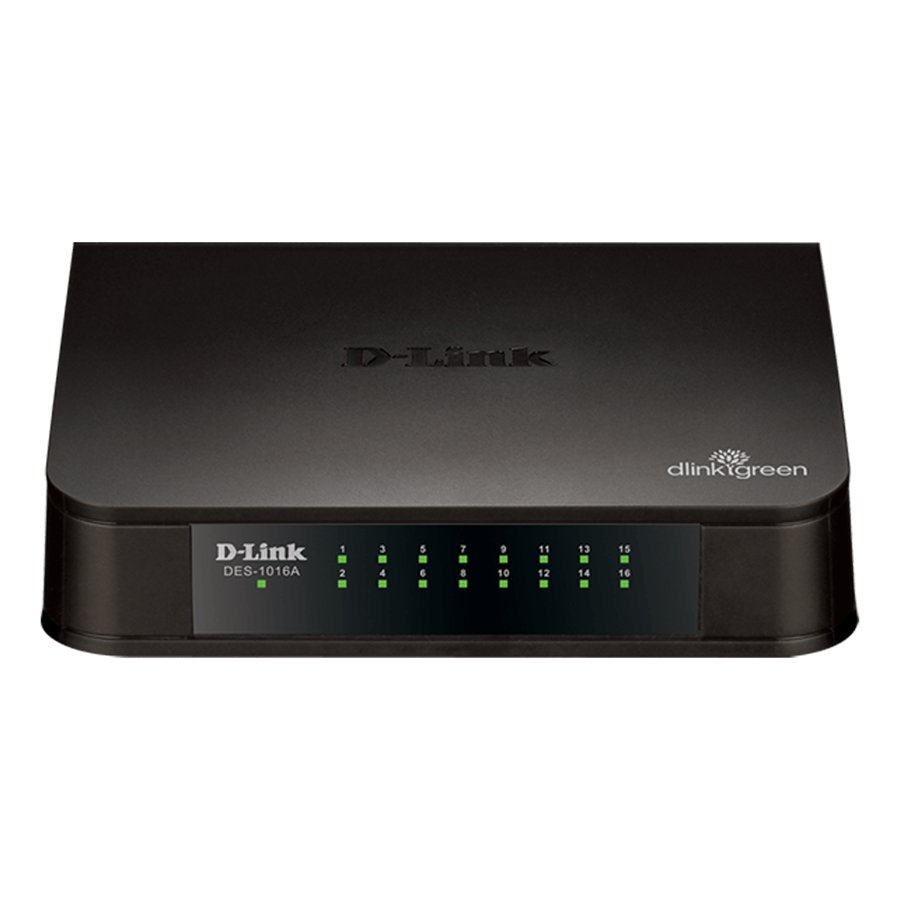

D-Link DES-1016A 16-Port Fast Ethernet Unmanaged Switch
D-Link DES-1016A 16-Port Fast Ethernet Unmanaged Switch من منتجات سويتش شبكات. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
A D-Link network switch for offices, CCTV / PoE projects and business networks.
- 16-Port Fast Ethernet Unmanaged Switch
- Interfaces: 16 x 100Base-TX Auto MDI/MDIX
- Console Port: No
- RJ-45 Management Port: No
- Alarm Port: No
عام
| الموديل | DES-1016A |
|---|
Key Features
- 16-Port Fast Ethernet Unmanaged Switch
- Interfaces: 16 x 100Base-TX Auto MDI/MDIX
- Console Port: No
- RJ-45 Management Port: No
- Alarm Port: No
Best Fit Applications
Offices, CCTV projects, shops, hotels and business networks.
Technical Specifications
| Model | DES-1016A |
|---|---|
| Interfaces | 16 x 100Base-TX Auto MDI/MDIX |
| Console Port | No |
| RJ-45 Management Port | No |
| Alarm Port | No |
| CompactFlash (CF) Card Slot | No |
| Secure Digital (SD) Card Slot | No |
| Switching Capacity | 3.2 Gbps |
| Maximum Forwarding Rate | 2.38 Mpps |
| Dimensions | 155.7 × 122 × 41 mm |
| Weight | 0.27 kg |
| Temperature | Operating: 0 ~ 40 °C Storage: - 40 ~ 70 °C |
| Humidity | Operating: 10% ~ 90% RH Storage: 5% ~ 90% RH |
| Max Power Consumption | 2.69 W |
| Power Input | 100 to 240 V AC |
| Packet Buffer Size | 2 MB |
| FAN | Fanless |
