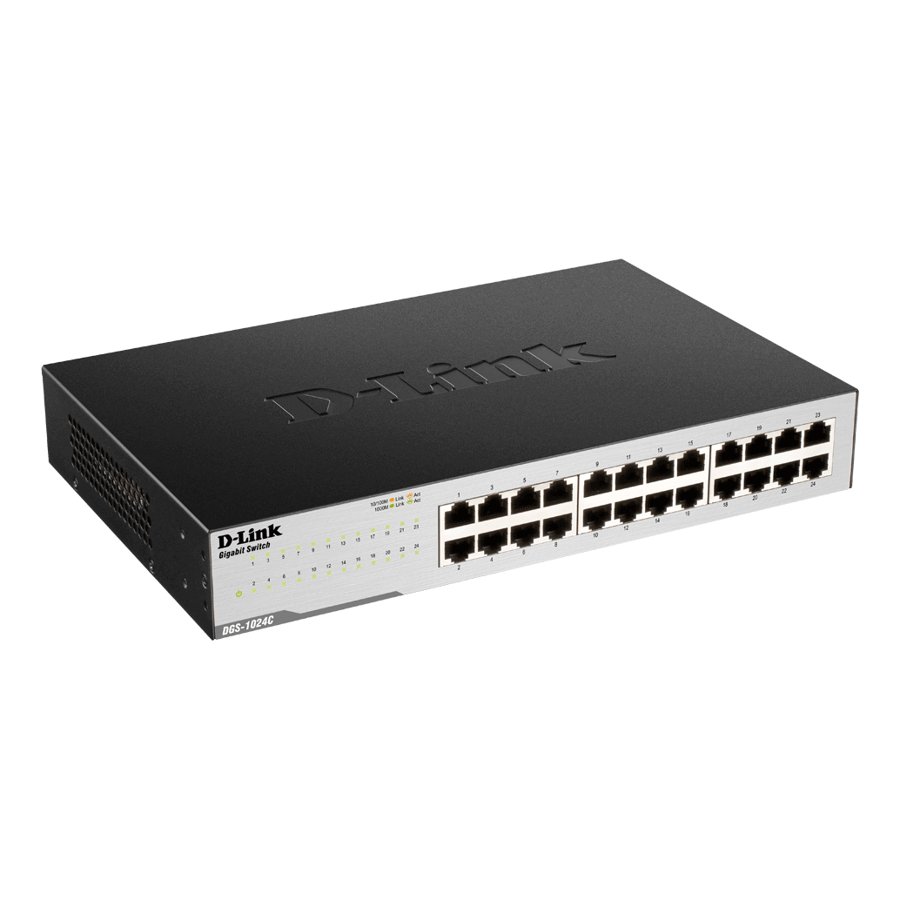

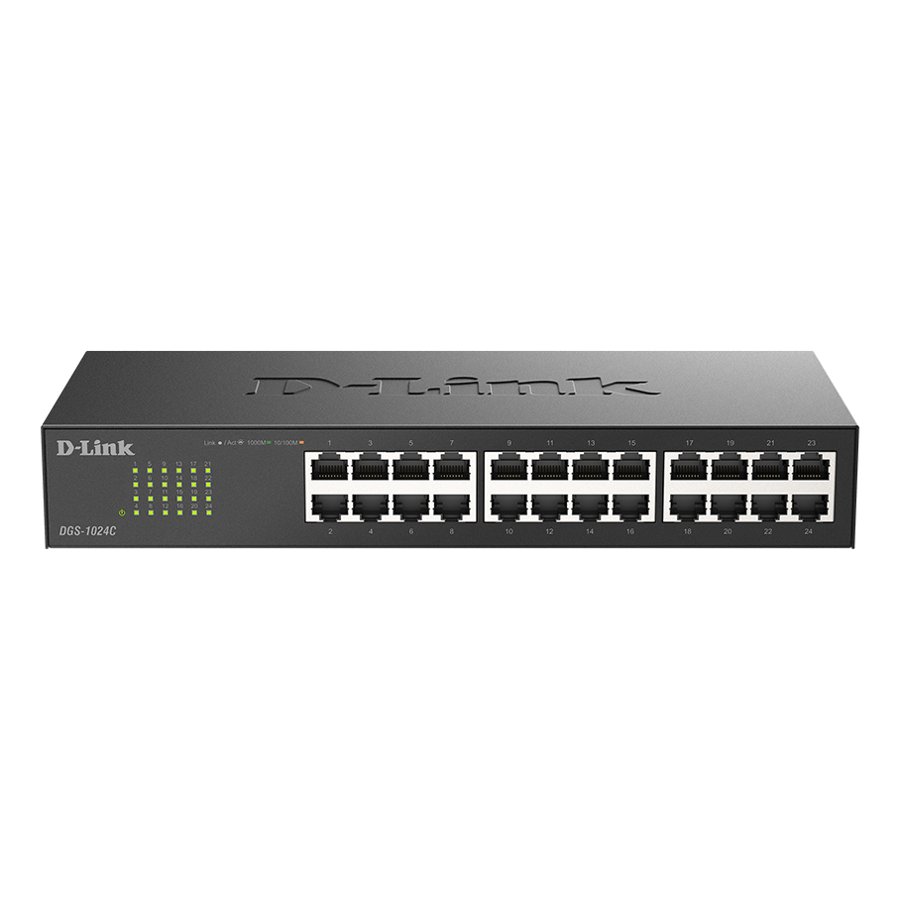

D-Link DGS-1024C 24-Port Gigabit Unmanaged Switch
D-Link DGS-1024C 24-Port Gigabit Unmanaged Switch من منتجات سويتش شبكات. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
A D-Link network switch for offices, CCTV / PoE projects and business networks.
- 24-Port Gigabit Unmanaged Switch
- Interfaces: 24 x 1000Base-T Auto MDI/MDIX 120G CXP
- Switching Capacity: 48 Gbps
- Maximum Forwarding Rate: 35.712 Mpps
- Store & Forwarding Forwading: Yes
عام
| الموديل | DGS-1024C |
|---|
Key Features
- 24-Port Gigabit Unmanaged Switch
- Interfaces: 24 x 1000Base-T Auto MDI/MDIX 120G CXP
- Switching Capacity: 48 Gbps
- Maximum Forwarding Rate: 35.712 Mpps
- Store & Forwarding Forwading: Yes
Best Fit Applications
Offices, CCTV projects, shops, hotels and business networks.
Technical Specifications
| Model | DGS-1024C |
|---|---|
| Interfaces | 24 x 1000Base-T Auto MDI/MDIX 120G CXP |
| Switching Capacity | 48 Gbps |
| Maximum Forwarding Rate | 35.712 Mpps |
| Store & Forwarding Forwading | Yes |
| Dimensions | 282.2 x 178 x 44.5 mm (11.11 in. x 7.01 in. x 1.75 in.) |
| Weight | 1.14 kgs |
| Max Power Consumption | 13.5 watts |
| Standby Power Consumption | 6.5 watts |
| Maximum Heat Dissipation | 46.035 BTU/h |
| MTBF | 247,291 hours |
| Power Input | AC:100 ~ 240 V |
| Packet Buffer Size | 512KBytes |
| FAN | Fanless |
| Comply with RoHS 6 | Yes |
| Energy Efficiency Ethernet (EEE) | Yes |
| MAC Address Table Size | 16000 |
| Control | 802.3x Flow |
| Head-of-line (HOL) Blocking Prevention | Yes |
| Jumbo Frame | 9,216 Bytes |
| Switch intelligence | Unmanaged |
| Acoustic | 0 dB |
| Humidity | Storage: 5% ~ 95% RH Operating: 10% ~ 90% RH |
| Temperature | Operating: 0 ~ 40 °C Storage: - 40 ~ 70 °C |
| Power Saving | By Link Status By Cable Length |
