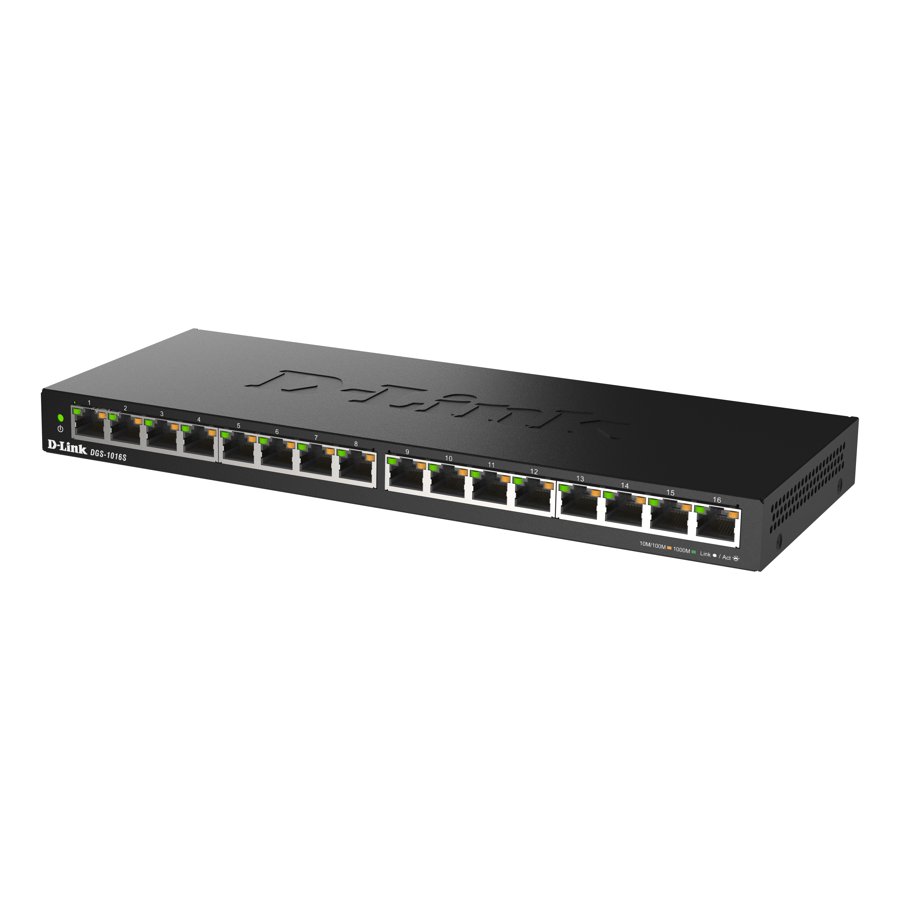

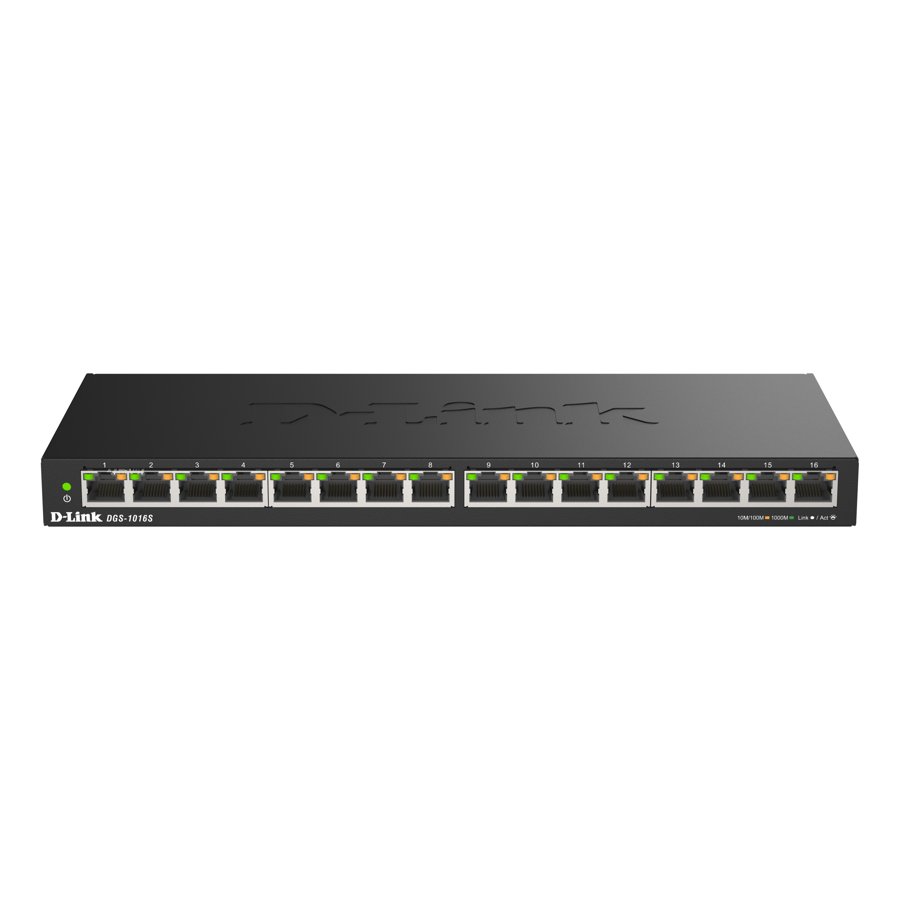

D-Link DGS-1016S 16-Port Desktop Gigabit Unmanaged Switch
D-Link DGS-1016S 16-Port Desktop Gigabit Unmanaged Switch من منتجات سويتش شبكات. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
A D-Link network switch for offices, CCTV / PoE projects and business networks.
- 16-Port Desktop Gigabit Unmanaged Switch
- Interfaces: 16 x 10/100/1000 Mbps LAN ports
- Switch Capacity: 32 Gbps
- Transmission Method: Store-and-Forward
- MAC Address Table Size: 8K entries
عام
| الموديل | DGS-1016S |
|---|
Key Features
- 16-Port Desktop Gigabit Unmanaged Switch
- Interfaces: 16 x 10/100/1000 Mbps LAN ports
- Switch Capacity: 32 Gbps
- Transmission Method: Store-and-Forward
- MAC Address Table Size: 8K entries
Best Fit Applications
Offices, CCTV projects, shops, hotels and business networks.
Technical Specifications
| Model | DGS-1016S |
|---|---|
| Interfaces | 16 x 10/100/1000 Mbps LAN ports |
| Switch Capacity | 32 Gbps |
| Transmission Method | Store-and-Forward |
| MAC Address Table Size | 8K entries |
| Maximum Forwarding Rate | 23.808 Mpps |
| Packet Buffer RAM | 512 KB per device |
| Media Interface Exchange | Auto-MDI/MDIX adjustment for all ports |
| Dimensions | 280 x 110 x 25 mm |
| Weight | 0.742 kg |
| Power Input | 12 V / 1 A |
| Temperature | Operating: 0 to 40 °C (32 to 104 °F) |
| MTBF | 647,567.92 hours |
| Power Consumption | Maximum: 9.645 W |
