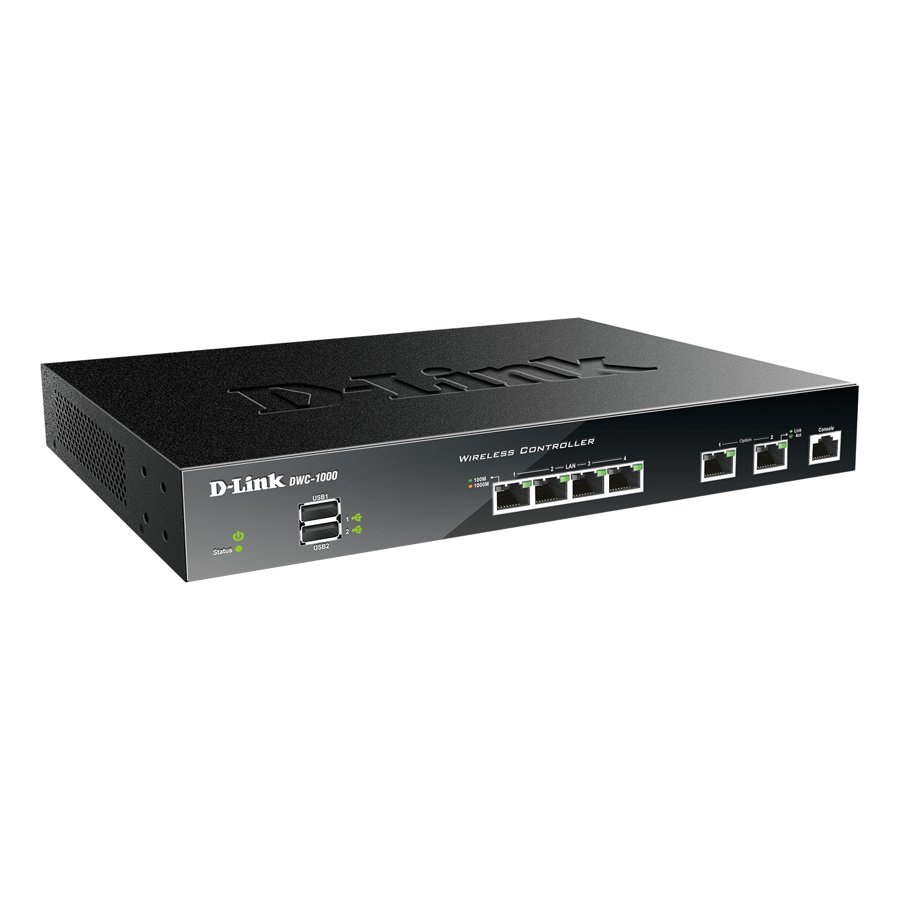

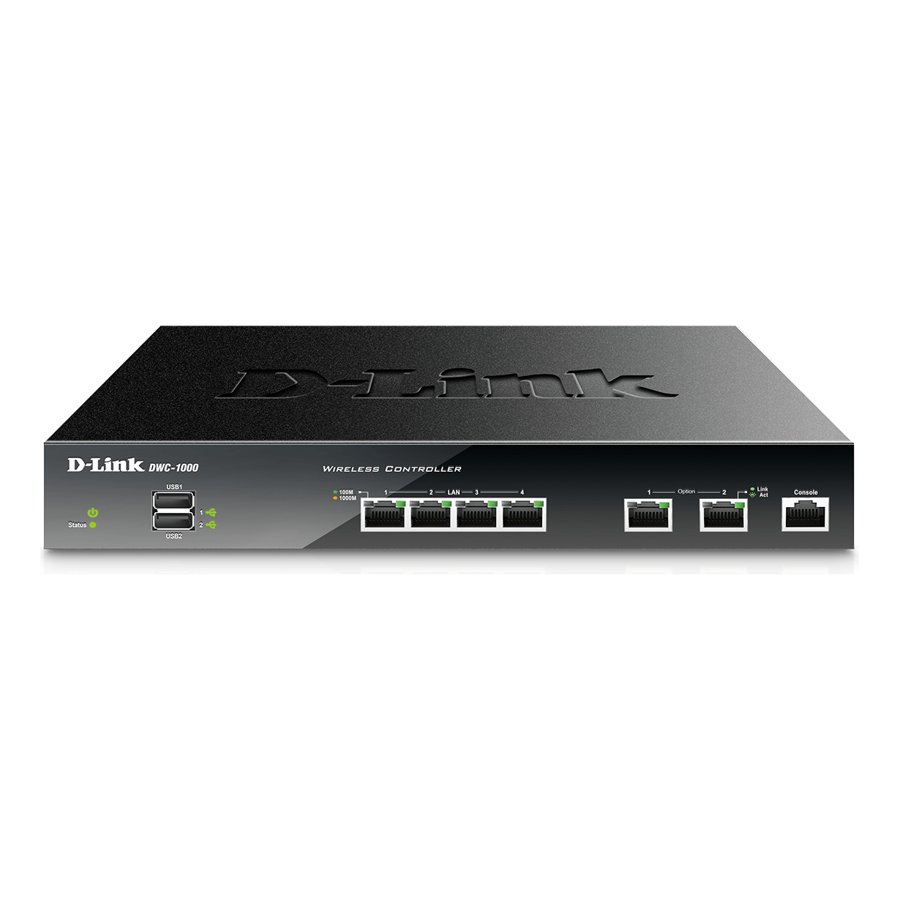

D-Link DWC-1000 Wireless Controller
D-Link DWC-1000 Wireless Controller من منتجات نقطة وصول لاسلكية. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
A D-Link wireless controller for central management of D-Link business access points.
- Wireless Controller
- Management platform: Hardware
- Supported access points: DWL-8610AP DWL-6610AP DWL-2600AP DWL-3600AP DWL-6600AP DWL-8600AP DWL-6700AP DWL-8710AP DWL-3610AP DWL-8620AP DWL-8620APE DWL-7620AP DWL-6610APE DWL-6620APS DWL-8720AP (with DWC-1000 ver. C1 only)
- Layer: Layer 3
- Number of ports: 5 to 14 ports
عام
| الموديل | DWC-1000 |
|---|
Key Features
- Wireless Controller
- Management platform: Hardware
- Supported access points: DWL-8610AP DWL-6610AP DWL-2600AP DWL-3600AP DWL-6600AP DWL-8600AP DWL-6700AP DWL-8710AP DWL-3610AP DWL-8620AP DWL-8620APE DWL-7620AP DWL-6610APE DWL-6620APS DWL-8720AP (with DWC-1000 ver. C1 only)
- Layer: Layer 3
- Number of ports: 5 to 14 ports
Best Fit Applications
Business Wi-Fi deployments with many access points.
Technical Specifications
| Model | DWC-1000 |
|---|---|
| Management platform | Hardware |
| Supported access points | DWL-8610AP DWL-6610AP DWL-2600AP DWL-3600AP DWL-6600AP DWL-8600AP DWL-6700AP DWL-8710AP DWL-3610AP DWL-8620AP DWL-8620APE DWL-7620AP DWL-6610APE DWL-6620APS DWL-8720AP (with DWC-1000 ver. C1 only) |
| Layer | Layer 3 |
| Number of ports | 5 to 14 ports |
| Main type of ports | 1000BASE-T Gigabit Ethernet |
| Type of uplink ports | 1000BASE-T Gigabit Ethernet |
| Maximum number of device clustering per group | 4 |
| AP auto discovery and monitoring | Supported |
| Auto channel and power management | Supported |
| Fast roaming | L2 |
| WPA/WPA2-personal/enterpise | Supported |
| TKIP/AES encryption | Supported |
| Rogue AP/Client detection | Supported |
| WIDS | Supported |
| VLAN group (max static) | 255 |
| VLAN type | Protocol-based Port-based MAC-based GVRP |
| Advanced VLAN | Voice VLAN Double VLAN (Q-in-Q) |
| Routing table size | 100 |
| Static route for IPv4/IPv6 | IPv4 - 100 |
| RIP v1/v2 | Supported |
| OSPF | Supported |
| Number of QoS queues per port | 4 |
| CoS based on contents | Supported |
| Bandwidth control | 64 Kbps minimum granularity |
| ACL based on packet contents | Supported |
