كود المنتج:
DS-2DF7C425IXG1-EL

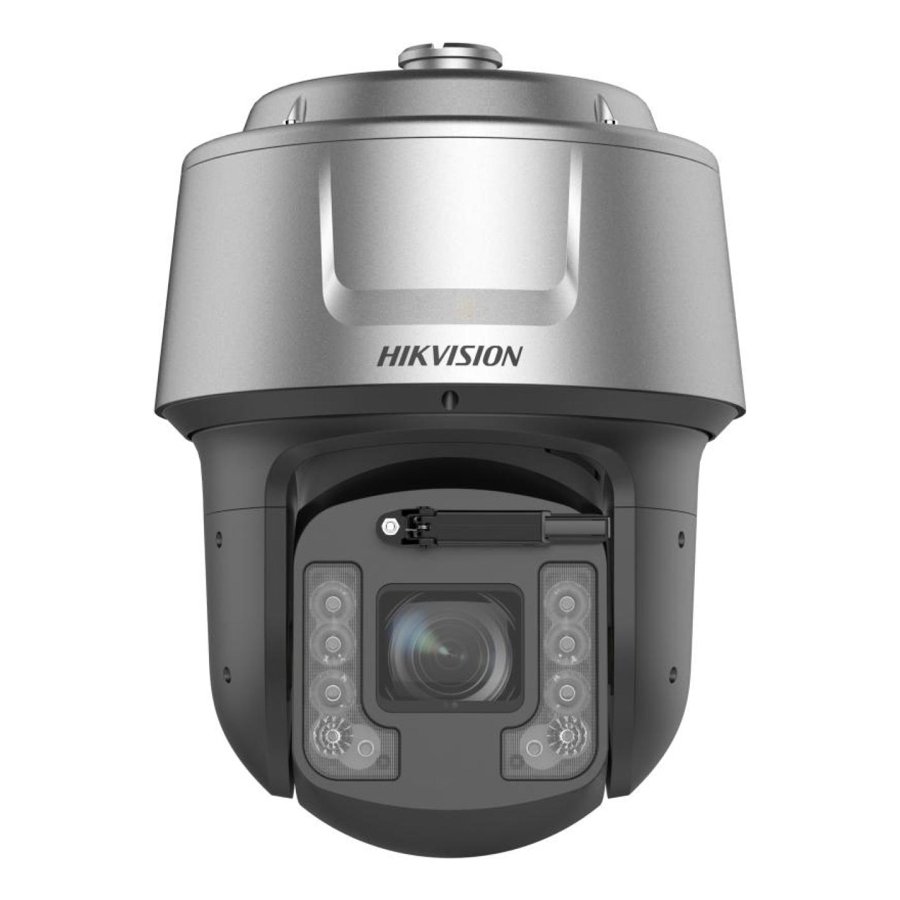

Hikvision DS-2DF7C425IXG1-EL 4 MP 25X DarkFighter IR Network Speed Dome
Hikvision DS-2DF7C425IXG1-EL 4 MP 25X DarkFighter IR Network Speed Dome من منتجات كاميرا متحركة PTZ. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
A Hikvision network PTZ camera with optical zoom, pan / tilt control and long-range night vision, for wide-area surveillance.
- 1/1.8" Progressive Scan CMOS
- High quality imaging with 4 MP resolution
- Excellent low-light performance via DarkFighter 2.0 technology
- Clear imaging against strong back light due to 150 dB AWDR technology
- 25 × optical zoom and 16 × digital zoom provide close up views over expansive areas
4MP Super HD
H.265+ Smart Codec
IR Night Vision
Low Light
PTZ Pan Tilt Zoom
PoE Power over Ethernet
| Image Sensor: 1/1.8" progressive scan CMOS |
| Min. Illumination: Color: 0.0005 Lux @ (F1.5, AGC ON), B/W: 0.0001 Lux @ (F1.5, AGC ON), 0 Lux with IR |
| Shutter Time: 1/1 s to 1/30,000 s |
| Slow Shutter: Yes |
| Day & Night: IR cut filter |
| Max. Resolution: 2688 × 1520 |
| Focal length: 5.9 mm to 147.5 mm, 25× Optical |
| Aperture: Max. F1.5 |
| Focus: Auto, semi-auto, manual, rapid focus |
| FOV: Horizontal field of view: 59.8° to 3.3° (wide-tele), Vertical field of view: 33.7° to 1.9° (wide-tele), Diagonal field of view: 65° to 3.8° (wide-tele) |
| Zoom: 25x optical, 16x digital |
| Zoom Speed: Approx. 4.8 s (optical, wide-tele) |
| Supplement Light Type: IR |
| Supplement Light Range: IR Distance: up to 400 m |
| Smart Supplement Light: Yes |
| Movement Range (Pan): 360°，Smart Pan-Tilt Correction |
| Movement Range (Tilt): -20° to 90° (auto flip)，Smart Pan-Tilt Correction |
| Pan Speed: Pan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s |
| Tilt Speed: Tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s |
| Proportional Pan: Yes |
| Presets: 300 |
| Patrol Scan: 8 patrols, up to 32 presets for each patrol |
| Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan |
| Power-off Memory: Yes |
| Park Action: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan |
| PTZ Status Display: Yes |
| Preset Freezing: Yes |
| Scheduled Task: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output |
| Video Bit Rate: 32 Kbps to 16384 Kbps |
| Video Compression: Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG |
| H.264 Type: Baseline Profile/Main Profile/High Profile |
| H.265 Type: Main Profile |
| Main Stream: 50 Hz：50 fps (2688 × 1520, 2560 × 1440), 100 fps (1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz：60 fps (2688 × 1520, 2560 × 1440), 120 fps (1920 × 1080, 1280 × 960, 1280 × 720) *High frame rate is supported under monitoring mode only. |
| Third Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Sub-Stream: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
| Scalable Video Coding (SVC): H.264 and H.265 encoding |
| Region of Interest (ROI): 8 fixed regions for each stream |
| Target Cropping: No |
| Environment Noise Filtering: Yes |
| Audio Sampling Rate: MP2L2: 16kHz, 32kHz, 48kHzAAC-LC: 16kHz, 32kHz, 48kHzPCM: 8kHz, 16kHz, 32kHz, 48kHzMP3: 8kHz, 16KHz, 32KHz, 48KHz |
| Audio Compression: G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM |
| Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2) |
| Network Storage: NAS (NFS, SMB/ CIFS), ANR |
| Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour |
| API: ISUP, ISAPI, Hikvision SDK, Open Network Video Interface (Profile S, Profile G, Profile T, Profile M)，OTAP |
| Security: Password protection,complicated password,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),watermark,IP address filter,basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for Open Network Video Interface, R |
| Simultaneous Live View: Up to 20 channels |
| User/Host: Up to 32 users. 3 levels: Administrator, Operator and User |
| Client: HikCentral, iVMS-4200, Hik-Connect |
| Web Browser: IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+ |
| Smooth Streaming: Yes |
| Wide Dynamic Range (WDR): 150 dB WDR |
| Image Enhancement: BLC, HLC, 3D DNR |
| Day/Night Switch: Day, night, auto, scheduled-switch |
| Image Parameters Switch: Yes |
| Image Settings: Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| SNR: ≥ 52 dB |
| Privacy Mask: Up to 24 masks, polygon region, mosaic mask, mask color configurable |
| Image Stabilization: Yes. Built-in gyroscope to improve EIS performance. |
| Defog: Digital defog |
| Regional Exposure: Yes |
| Regional Focus: Yes |
| Audio: 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω |
| Alarm: 7 inputs, 2 outputs |
| Video Output: 1.0V[p-p]/75Ω, PAL, NTSC, BNC connector |
| On-Board Storage: Built-in memory card slot, support MicroSD/MicroSDHC/MicroSDXC, up to 1 TB |
| Reset Key: Yes |
| Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port |
| RS-485: Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive |
| Basic Event: Motion detection,video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error),alarm input and output,vandal-proof alam,audio exception detection,unattended baggage detection, object removal detection |
| Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,and PTZ actions (such as preset, patrol scan, pattern scan) |
| Face Capture: Detects up to 30 faces simultaneously, Uploads face with background and closed-up face pictures,Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture |
| Perimeter Protection: Line crossing detection, region entrance detection, intrusion detection, region exiting detection |
| Multi-Target-Type Detection: Supports simultaneous detection and capture of human body, face and vehicle, Gets 7 face features, 14 human body features and 8 vehicle features |
| Face Comparison: Up to 10 face libraries. 30000 faces for each library. 150000 faces in total, Recognizes face identity via face modeling, grading and comparing to those in face library, Supports face library encryption |
| Startup and Operating Conditions: Temperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95% |
| Power: 36 VDC± 25%, max. 60 W (Max. 50 W, including max. 10 W for IR and max. 8 W for heater) PoE 802.3bt, type3, class6, max. 60W (Max. 50 W, including max. 10 W for IR and max. 8 W for heater) |
| Dimension: Ø 260 mm × 336.4 mm (Ø 10.24" × 13.24") |
| Weight: Approx. 6.7 kg (14.77 lb.) |
| Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Tradition |
| Heater: Yes |
| Road Traffic and Vehicle Detection: Smart Function: Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario) Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc. Support vehicle and non-vehicle counting Bl |
| Gyroscope: Yes |
| Satellite Positioning: No |
| Compass: No |
| Smart Tracking: Manual tracking, auto-tracking 3.0 |
| Object Tracking: Support person arming. When the device detects the armed face or human body in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.Support v |
| Vandal-proof Alarm: No |
| Wiper: Yes |
| De-icing: No |
| Demist: Yes |
عام
| الموديل | DS-2DF7C425IXG1-EL |
|---|
Key Features
- 1/1.8" Progressive Scan CMOS
- High quality imaging with 4 MP resolution
- Excellent low-light performance via DarkFighter 2.0 technology
- Clear imaging against strong back light due to 150 dB AWDR technology
- 25 × optical zoom and 16 × digital zoom provide close up views over expansive areas
- Expansive night view with up to 400 m IR distance
- Water and dust resistant (IP67) and vandal proof (IK10) excluding glass window
Best Fit Applications
Parking lots, compounds, factories, ports, city streets, large yards and building perimeters.
Technical Specifications
| Model | DS-2DF7C425IXG1-EL |
| Camera | |
| Image Sensor | 1/1.8" progressive scan CMOS |
| Min. Illumination | Color: 0.0005 Lux @ (F1.5, AGC ON), B/W: 0.0001 Lux @ (F1.5, AGC ON), 0 Lux with IR |
| Shutter Time | 1/1 s to 1/30,000 s |
| Slow Shutter | Yes |
| Day & Night | IR cut filter |
| Max. Resolution | 2688 × 1520 |
| Lens | |
| Zoom | 25x optical, 16x digital |
| Focus | Auto, semi-auto, manual, rapid focus |
| Focal Length | 5.9 mm to 147.5 mm, 25× Optical |
| Zoom Speed | Approx. 4.8 s (optical, wide-tele) |
| FOV | Horizontal field of view: 59.8° to 3.3° (wide-tele), Vertical field of view: 33.7° to 1.9° (wide-tele), Diagonal field of view: 65° to 3.8° (wide-tele) |
| Aperture | Max. F1.5 |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | IR Distance: up to 400 m |
| Smart Supplement Light | Yes |
| PTZ | |
| Movement Range (Pan) | 360°，Smart Pan-Tilt Correction |
| Movement Range (Tilt) | -20° to 90° (auto flip)，Smart Pan-Tilt Correction |
| Pan Speed | Pan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s |
| Tilt Speed | Tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s |
| Proportional Pan | Yes |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans, record time over 10 minutes for each scan |
| Power-off Memory | Yes |
| Park Action | Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan |
| PTZ Status Display | Yes |
| Preset Freezing | Yes |
| Scheduled Task | Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output |
| Video | |
| Main Stream | 50 Hz：50 fps (2688 × 1520, 2560 × 1440), 100 fps (1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz：60 fps (2688 × 1520, 2560 × 1440), 120 fps (1920 × 1080, 1280 × 960, 1280 × 720) *High frame rate is supported under monitoring mode only. |
| Sub-Stream | 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
| Third Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16384 Kbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 8 fixed regions for each stream |
| Target Cropping | No |
| Audio | |
| Audio Compression | G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM |
| Audio Bit Rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2) |
| Audio Sampling Rate | MP2L2: 16kHz, 32kHz, 48kHzAAC-LC: 16kHz, 32kHz, 48kHzPCM: 8kHz, 16kHz, 32kHz, 48kHzMP3: 8kHz, 16KHz, 32KHz, 48KHz |
| Environment Noise Filtering | Yes |
| Network | |
| Smooth Streaming | Yes |
| Security | Password protection,complicated password,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),watermark,IP address filter,basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for Open Network Video Interface, R |
| Network Storage | NAS (NFS, SMB/ CIFS), ANR |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour |
| API | ISUP, ISAPI, Hikvision SDK, Open Network Video Interface (Profile S, Profile G, Profile T, Profile M)，OTAP |
| Simultaneous Live View | Up to 20 channels |
| User/Host | Up to 32 users. 3 levels: Administrator, Operator and User |
| Client | HikCentral, iVMS-4200, Hik-Connect |
| Web Browser | IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+ |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| Day/Night Switch | Day, night, auto, scheduled-switch |
| Image Enhancement | BLC, HLC, 3D DNR |
| Wide Dynamic Range (WDR) | 150 dB WDR |
| Defog | Digital defog |
| Image Stabilization | Yes. Built-in gyroscope to improve EIS performance. |
| Regional Exposure | Yes |
| Regional Focus | Yes |
| Privacy Mask | Up to 24 masks, polygon region, mosaic mask, mask color configurable |
| SNR | ≥ 52 dB |
| Interface | |
| Reset Key | Yes |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support MicroSD/MicroSDHC/MicroSDXC, up to 1 TB |
| Alarm | 7 inputs, 2 outputs |
| Audio | 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω |
| Video Output | 1.0V[p-p]/75Ω, PAL, NTSC, BNC connector |
| RS-485 | Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive |
| Event | |
| Basic Event | Motion detection,video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error),alarm input and output,vandal-proof alam,audio exception detection,unattended baggage detection, object removal detection |
| Linkage | Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,and PTZ actions (such as preset, patrol scan, pattern scan) |
| Deep Learning Function | |
| Perimeter Protection | Line crossing detection, region entrance detection, intrusion detection, region exiting detection |
| Multi-Target-Type Detection | Supports simultaneous detection and capture of human body, face and vehicle, Gets 7 face features, 14 human body features and 8 vehicle features |
| Face Capture | Detects up to 30 faces simultaneously, Uploads face with background and closed-up face pictures,Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture |
| Face Comparison | Up to 10 face libraries. 30000 faces for each library. 150000 faces in total, Recognizes face identity via face modeling, grading and comparing to those in face library, Supports face library encryption |
| General | |
| Gyroscope | Yes |
| Satellite Positioning | No |
| Compass | No |
| Road Traffic and Vehicle Detection | Smart Function: Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario) Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc. Support vehicle and non-vehicle counting Bl |
| Smart Tracking | Manual tracking, auto-tracking 3.0 |
| Object Tracking | Support person arming. When the device detects the armed face or human body in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.Support v |
| Vandal-proof Alarm | No |
| Heater | Yes |
| Wiper | Yes |
| De-icing | No |
| Demist | Yes |
| Power | 36 VDC± 25%, max. 60 W (Max. 50 W, including max. 10 W for IR and max. 8 W for heater) PoE 802.3bt, type3, class6, max. 60W (Max. 50 W, including max. 10 W for IR and max. 8 W for heater) |
| Startup and Operating Conditions | Temperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95% |
| Dimension | Ø 260 mm × 336.4 mm (Ø 10.24" × 13.24") |
| Weight | Approx. 6.7 kg (14.77 lb.) |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Tradition |
الخصائص
| Image Sensor | 1/1.8" progressive scan CMOS |
|---|---|
| Min. Illumination | Color: 0.0005 Lux @ (F1.5, AGC ON), B/W: 0.0001 Lux @ (F1.5, AGC ON), 0 Lux with IR |
| Shutter Time | 1/1 s to 1/30,000 s |
| Slow Shutter | Yes |
| Day & Night | IR cut filter |
| Max. Resolution | 2688 × 1520 |
| Focal length | 5.9 mm to 147.5 mm, 25× Optical |
| Aperture | Max. F1.5 |
| Focus | Auto, semi-auto, manual, rapid focus |
| FOV | Horizontal field of view: 59.8° to 3.3° (wide-tele), Vertical field of view: 33.7° to 1.9° (wide-tele), Diagonal field of view: 65° to 3.8° (wide-tele) |
| Zoom | 25x optical, 16x digital |
| Zoom Speed | Approx. 4.8 s (optical, wide-tele) |
| Supplement Light Type | IR |
| Supplement Light Range | IR Distance: up to 400 m |
| Smart Supplement Light | Yes |
| Movement Range (Pan) | 360°，Smart Pan-Tilt Correction |
| Movement Range (Tilt) | -20° to 90° (auto flip)，Smart Pan-Tilt Correction |
| Pan Speed | Pan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s |
| Tilt Speed | Tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s |
| Proportional Pan | Yes |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans, record time over 10 minutes for each scan |
| Power-off Memory | Yes |
| Park Action | Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan |
| PTZ Status Display | Yes |
| Preset Freezing | Yes |
| Scheduled Task | Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output |
| Video Bit Rate | 32 Kbps to 16384 Kbps |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Main Stream | 50 Hz：50 fps (2688 × 1520, 2560 × 1440), 100 fps (1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz：60 fps (2688 × 1520, 2560 × 1440), 120 fps (1920 × 1080, 1280 × 960, 1280 × 720) *High frame rate is supported under monitoring mode only. |
| Third Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Sub-Stream | 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 8 fixed regions for each stream |
| Target Cropping | No |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | MP2L2: 16kHz, 32kHz, 48kHzAAC-LC: 16kHz, 32kHz, 48kHzPCM: 8kHz, 16kHz, 32kHz, 48kHzMP3: 8kHz, 16KHz, 32KHz, 48KHz |
| Audio Compression | G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM |
| Audio Bit Rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2) |
| Network Storage | NAS (NFS, SMB/ CIFS), ANR |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour |
| API | ISUP, ISAPI, Hikvision SDK, Open Network Video Interface (Profile S, Profile G, Profile T, Profile M)，OTAP |
| Security | Password protection,complicated password,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),watermark,IP address filter,basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for Open Network Video Interface, R |
| Simultaneous Live View | Up to 20 channels |
| User/Host | Up to 32 users. 3 levels: Administrator, Operator and User |
| Client | HikCentral, iVMS-4200, Hik-Connect |
| Web Browser | IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+ |
| Smooth Streaming | Yes |
| Wide Dynamic Range (WDR) | 150 dB WDR |
| Image Enhancement | BLC, HLC, 3D DNR |
| Day/Night Switch | Day, night, auto, scheduled-switch |
| Image Parameters Switch | Yes |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| SNR | ≥ 52 dB |
| Privacy Mask | Up to 24 masks, polygon region, mosaic mask, mask color configurable |
| Image Stabilization | Yes. Built-in gyroscope to improve EIS performance. |
| Defog | Digital defog |
| Regional Exposure | Yes |
| Regional Focus | Yes |
| Audio | 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω |
| Alarm | 7 inputs, 2 outputs |
| Video Output | 1.0V[p-p]/75Ω, PAL, NTSC, BNC connector |
| On-Board Storage | Built-in memory card slot, support MicroSD/MicroSDHC/MicroSDXC, up to 1 TB |
| Reset Key | Yes |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| RS-485 | Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive |
| Basic Event | Motion detection,video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error),alarm input and output,vandal-proof alam,audio exception detection,unattended baggage detection, object removal detection |
| Linkage | Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,and PTZ actions (such as preset, patrol scan, pattern scan) |
| Face Capture | Detects up to 30 faces simultaneously, Uploads face with background and closed-up face pictures,Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture |
| Perimeter Protection | Line crossing detection, region entrance detection, intrusion detection, region exiting detection |
| Multi-Target-Type Detection | Supports simultaneous detection and capture of human body, face and vehicle, Gets 7 face features, 14 human body features and 8 vehicle features |
| Face Comparison | Up to 10 face libraries. 30000 faces for each library. 150000 faces in total, Recognizes face identity via face modeling, grading and comparing to those in face library, Supports face library encryption |
| Startup and Operating Conditions | Temperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95% |
| Power | 36 VDC± 25%, max. 60 W (Max. 50 W, including max. 10 W for IR and max. 8 W for heater) PoE 802.3bt, type3, class6, max. 60W (Max. 50 W, including max. 10 W for IR and max. 8 W for heater) |
| Dimension | Ø 260 mm × 336.4 mm (Ø 10.24" × 13.24") |
| Weight | Approx. 6.7 kg (14.77 lb.) |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Tradition |
| Heater | Yes |
| Road Traffic and Vehicle Detection | Smart Function: Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario) Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc. Support vehicle and non-vehicle counting Bl |
| Gyroscope | Yes |
| Satellite Positioning | No |
| Compass | No |
| Smart Tracking | Manual tracking, auto-tracking 3.0 |
| Object Tracking | Support person arming. When the device detects the armed face or human body in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.Support v |
| Vandal-proof Alarm | No |
| Wiper | Yes |
| De-icing | No |
| Demist | Yes |
![[DS-2CD2087G3-LIY] Hikvision DS-2CD2087G3-LIY 8 MP Smart Hybrid Light with ColorVu Fixed Mini Bullet Network Camera](/web/image/product.template/2982/image_512)
![[DS-2CD2347G2H-LI] Hikvision DS-2CD2347G2H-LI 4 MP Smart Hybrid Light with ColorVu Fixed Turret Network Camera](/web/image/product.template/2963/image_512)
![[DS-2CD2367G2P-LSU/SL] Hikvision DS-2CD2367G2P-LSU/SL 6 MP Panoramic Fixed Turret Network Camera](/web/image/product.template/2959/image_512)
![[DS-2CD2625FHWD-IZS] Hikvision DS-2CD2625FHWD-IZS 2 MP IR Varifocal Bullet Network Camera](/web/image/product.template/2955/image_512)
![[DS-2CD2665G0-IZS] Hikvision DS-2CD2665G0-IZS 6 MP IR Varifocal Bullet Network Camera](/web/image/product.template/2954/image_512)
![[DS-2CD2T83G2-2I] Hikvision DS-2CD2T83G2-2I 8 MP AcuSense Fixed Bullet Network Camera](/web/image/product.template/2956/image_512)
![[DS-2CD3043G2-IU] Hikvision DS-2CD3043G2-IU 4 MP WDR Fixed Bullet Network Camera](/web/image/product.template/2989/image_512)
![[DS-2CD3051G0-I] Hikvision DS-2CD3051G0-I 5 MP IR Fixed Bullet Network Camera](/web/image/product.template/2991/image_512)
![[DS-2DF7C425IXG1-EL] Hikvision DS-2DF7C425IXG1-EL 4 MP 25X DarkFighter IR Network Speed Dome](/web/image/product.template/2966/image_256)
هل تحتاج مساعدة في الاختيار؟
هل تريد معرفة المزيد؟
تحدث مع مختص من Do Link لتحديد المواصفات المناسبة، والتكامل، والدعم الميداني.
