كود المنتج:
DS-7732NXI-K4/VPro

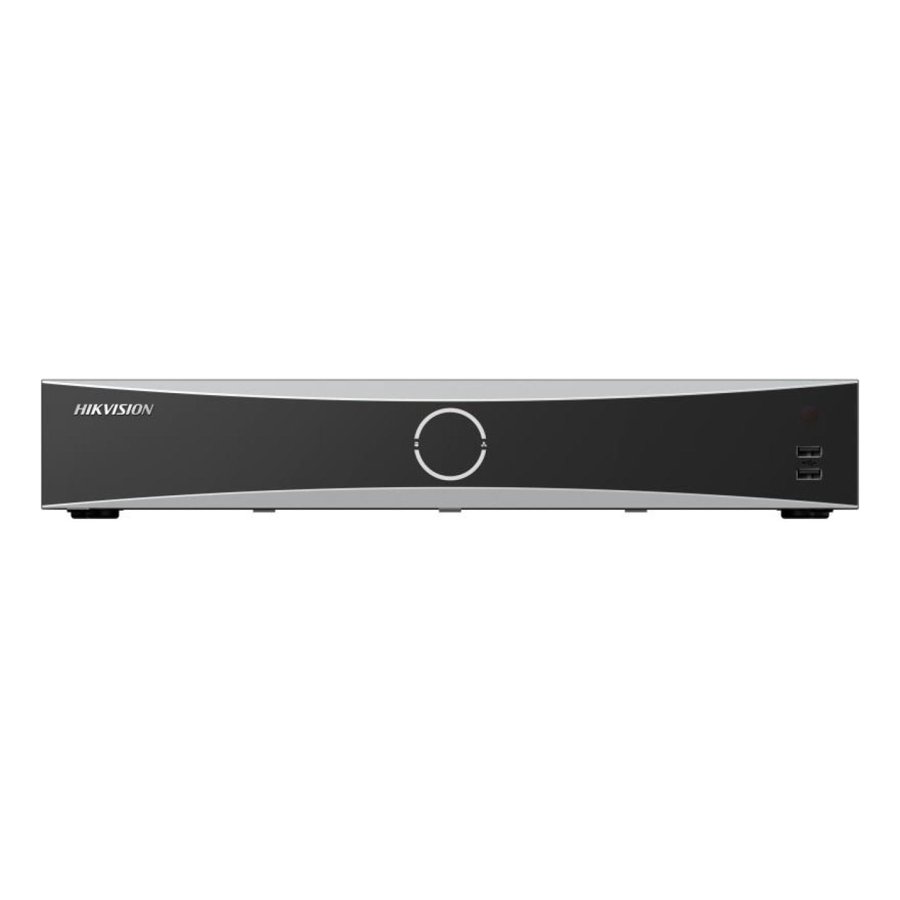

Hikvision DS-7732NXI-K4/VPro 32-ch 1.5U AcuSense K VPro NVR
Hikvision DS-7732NXI-K4/VPro 32-ch 1.5U AcuSense K VPro NVR من منتجات جهاز تسجيل شبكي NVR. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
A Hikvision network video recorder for recording, playback and remote viewing of IP cameras, with HDD storage and Hik-Connect support.
- Up to 32-ch AcuSeek and AcuSearch function
- Adopt Hikvision AcuSense technology to minimize manual effort and security costs
- Accurate perimeter protection effectively reduces false alarms
- Automatic cameras connection and configuration
- Up to 4-ch@12 MP or 6-ch@8 MP or 12-ch@4 MP or 24-ch@2 MP decoding capacity
عام
| الموديل | DS-7732NXI-K4/VPro |
|---|
Key Features
- Up to 32-ch AcuSeek and AcuSearch function
- Adopt Hikvision AcuSense technology to minimize manual effort and security costs
- Accurate perimeter protection effectively reduces false alarms
- Automatic cameras connection and configuration
- Up to 4-ch@12 MP or 6-ch@8 MP or 12-ch@4 MP or 24-ch@2 MP decoding capacity
- Up to 32-ch IP camera inputs
- H.265+/H.265/H.264+/H.264 video formats
Best Fit Applications
CCTV systems for offices, shops, warehouses, factories, hotels, hospitals, schools and compounds.
Technical Specifications
| Model | DS-7732NXI-K4/VPro |
|---|---|
| Facial Detection and Analytics | Face picture comparison, human face capture, face picture search |
| Face Picture Library | Up to 16 face picture libraries, with up to 50,000 face pictures in total (each picture ≤ 1 MB, total capacity ≤ 800 MB) |
| Facial Detection and Analytics Performance | Up to 4 MP: 2-ch; 5 MP to 8 MP: 1-ch |
| Face Picture Comparison | 8-ch |
| IP Video Input | 32-ch |
| Incoming Bandwidth | 256 Mbps |
| Outgoing Bandwidth | 100 Mbps |
| IP Speaker Input | 4-ch |
| HDMI Output | 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| VGA Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| Video Output Mode | HDMI/VGA independent output |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Audio Input | Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
| Decoding Format | H.265, H.265+, H.264, H264+ |
| Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 16-ch |
| Decoding Capability | AI on: 2-channel 12 MP@30 fps, 3-channel 8 MP@30 fps, 4-channel 6 MP@30 fps, 6-channel 4 MP@30 fps, 8-channel 3 MP@30fps, 12-channel 2 MP@30fps AI off: 4-channel 12 MP@30 fps, 6-channel 8 MP@30 fps, 8-channel 6 MP@30 fps, 12-channel 4 MP@30 fps, 16-channel 3 MP@30fps, 24-channel 2 MP@30fps |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2 |
| Remote Connection | 128 |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
| Network Interface | 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces |
| SATA | 4 SATA interfaces |
| Capacity | Up to 16 TB capacity for each HDD |
| Serial Interface | 2 RS-485 (half-duplex), 1 RS-232 |
| Alarm In/Out | 16/4 |
| USB Interface | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Power Supply | 100 to 240 VAC, 50 to 60Hz |
| Consumption | ≤ 50 W (without HDD) |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |

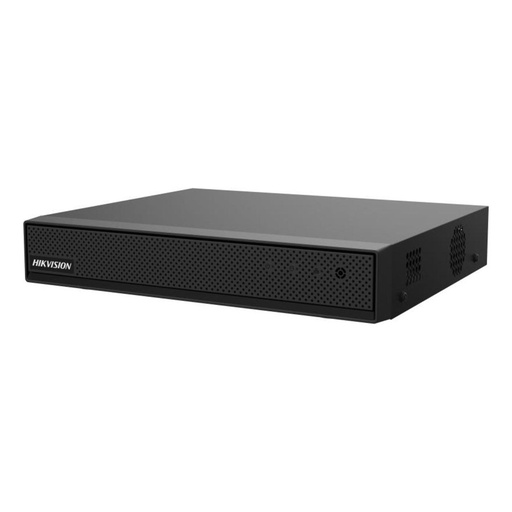

![[DS-7608NI-K1/8P] Hikvision DS-7608NI-K1/8P 8-ch 1U 8 PoE K/C Series 4K NVR](/web/image/product.template/2978/image_512)

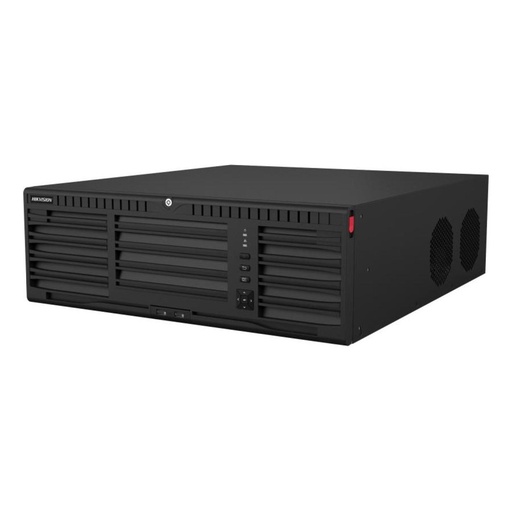

![[DS-9664NI-M16/R] Hikvision DS-9664NI-M16/R 64-ch 2U 8K NVR (Redundant Power)](/web/image/product.template/2993/image_512)
![[DS-9664NXI-I8/S] Hikvision DS-9664NXI-I8/S 64-ch 2U 4K AcuSense NVR](/web/image/product.template/2974/image_512)

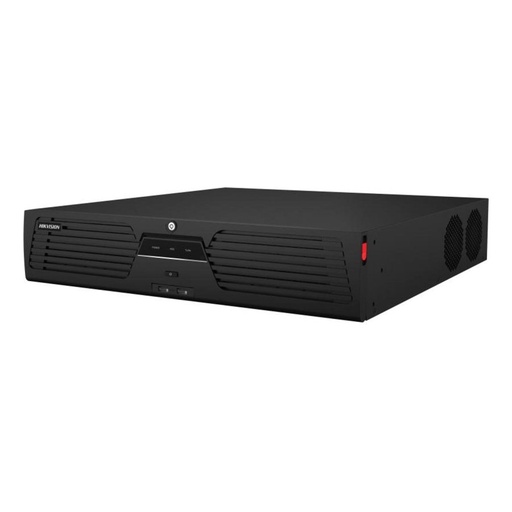

![[DS-9664NXI-I8/VPro] Hikvision DS-9664NXI-I8/VPro 64-ch 2U 4K AcuSense VPro NVR](/web/image/product.template/2975/image_512)

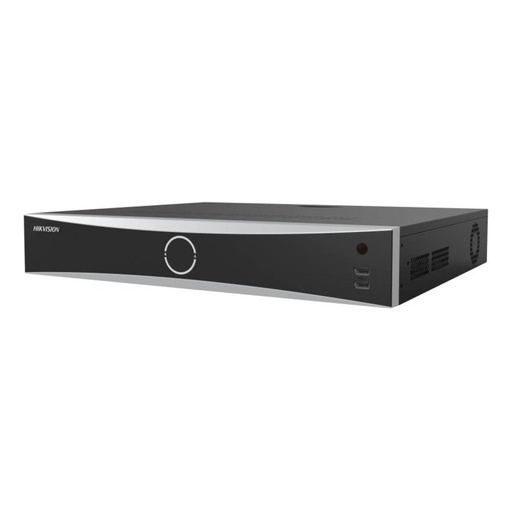

![[iDS-7716NXI-I4/X] Hikvision iDS-7716NXI-I4/X 16-ch 1.5U 4K DeepinMind NVR](/web/image/product.template/2979/image_512)
