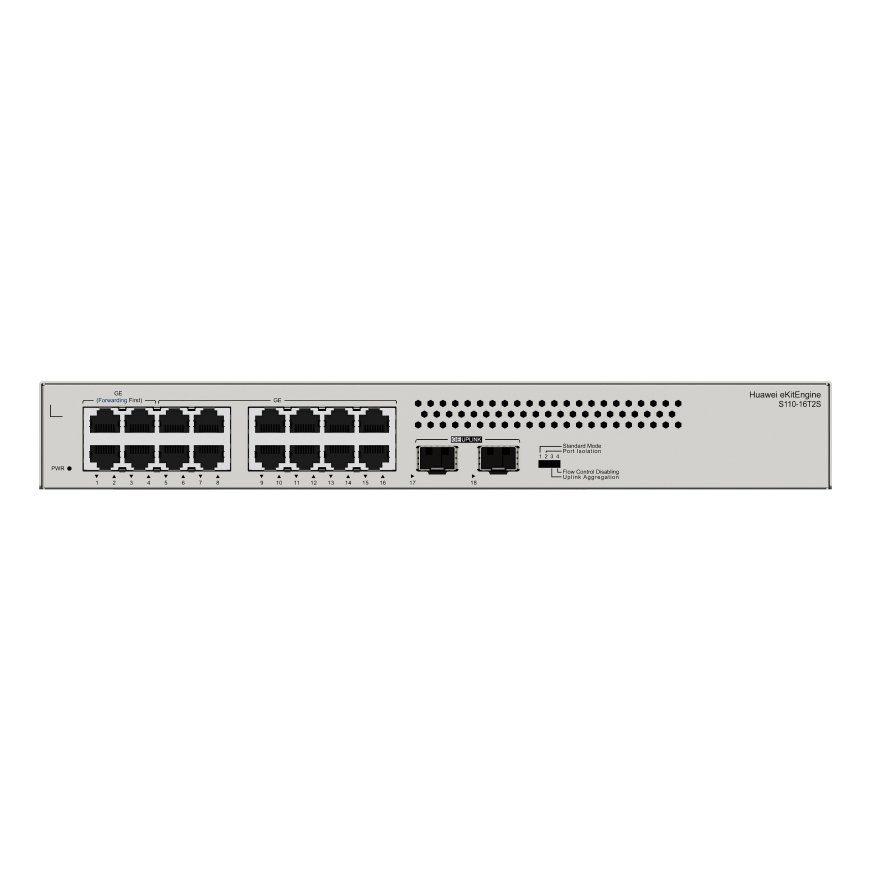

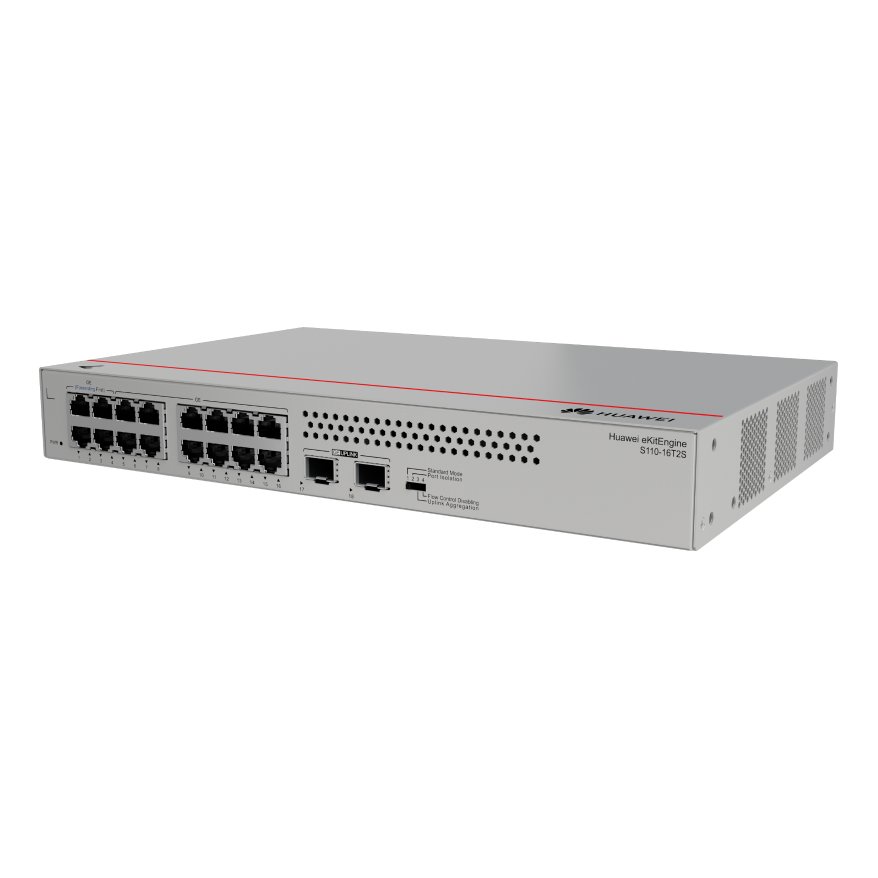

Huawei eKitEngine S110-16T2S Unmanaged Switch, 16 x GE, 2 x GE SFP
Huawei eKitEngine S110-16T2S Unmanaged Switch, 16 x GE, 2 x GE SFP من منتجات سويتش شبكات. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
A Huawei eKit enterprise switch for reliable wired networks in offices, CCTV and Wi-Fi projects, hotels and campuses.
- 16 x 10/100/1000BASE-T ports, 2 x GE SFP ports
- Packet forwarding rate: 26.78 Mpps
- Switching capacity: 36 Gbit/s
عام
| الموديل | S110-16T2S |
|---|
Key Features
- 16 x 10/100/1000BASE-T ports, 2 x GE SFP ports
- Packet forwarding rate: 26.78 Mpps
- Switching capacity: 36 Gbit/s
Best Fit Applications
Access and aggregation layers for offices, CCTV projects, hotels and campuses.
Technical Specifications
| Model | S110-16T2S |
|---|---|
| Part Number | 98012200 |
| Switching capacity | 36 Gbit/s |
| Packet forwarding rate | 26.78 Mpps |
| GE RJ45 | 16 (1G/100M/10M) |
| Certification | EMC certification Safety certification Manufacturing certification |
| Chassis material | Metal |
| Static power consumption [W] | 3 |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 320.0 mm x 210.0 mm (1.72 in. x 12.6 in. x 8.27 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x… |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 460.0 mm x 280.0 mm (3.54 in. x 18.11 in. x 11.02 in.) |
| Installation type | Rack mounting, Desk mounting, Wall mounting |
| Weight without packaging [kg(lb)] | 1.74 (3.84) |
| Weight with packaging [kg(lb)] | 2.30 kg (5.07 lb) |
| Typical power consumption [W] | 11.0 |
| Maximum power consumption [W] | 12 |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Power supply mode | AC built-in |
| Input voltage range [V] | AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz |
| Power supply surge protection [kV] | ±2 kV in differential mode, ±4 kV in common mode |
| Heat dissipation mode | Natural heat dissipation |
