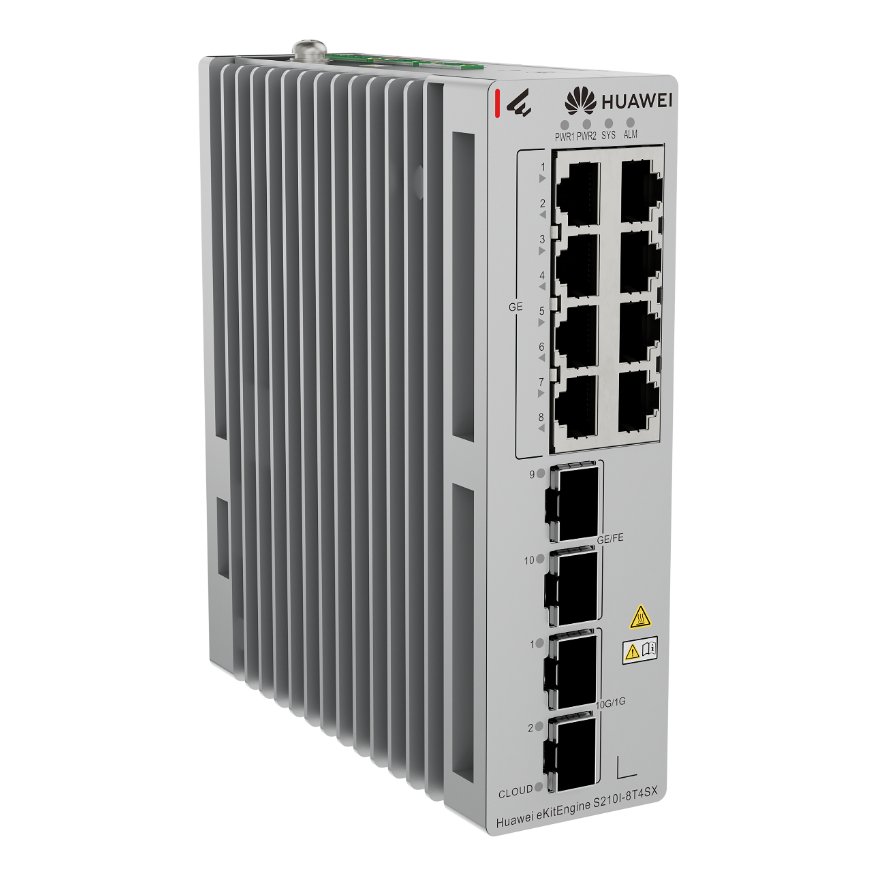

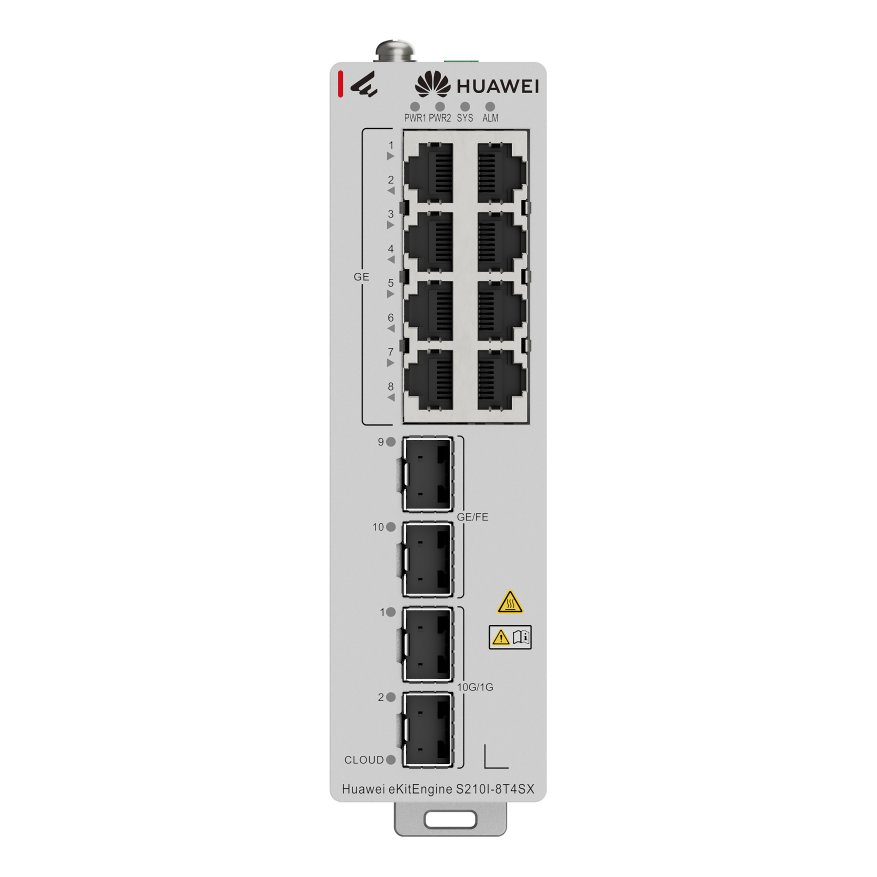

Huawei eKitEngine S210I-8T4SX Industrial Managed Switch, 8*GE, 2*GE SFP, 2*10GE SFP+
Huawei eKitEngine S210I-8T4SX Industrial Managed Switch, 8*GE, 2*GE SFP, 2*10GE SFP+ من منتجات سويتش شبكات. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
A Huawei eKit enterprise switch for reliable wired networks in offices, CCTV and Wi-Fi projects, hotels and campuses.
- S210I-8T4SX (8*10/100/1000BASE-T ports, 2*GE SFP ports, 2*10GE SFP+ ports, DIN Rail Mounting, Dual redundant 9.6 to 60V DC supply, Fanless, Without power…
عام
| الموديل | S210I-8T4SX |
|---|
Key Features
- S210I-8T4SX (8*10/100/1000BASE-T ports, 2*GE SFP ports, 2*10GE SFP+ ports, DIN Rail Mounting, Dual redundant 9.6 to 60V DC supply, Fanless, Without power…
Best Fit Applications
Access and aggregation layers for offices, CCTV projects, hotels and campuses.
Technical Specifications
| Model | S210I-8T4SX |
|---|---|
| Part Number | 98012931-001 |
| Switching capacity | 60Gbps |
| Packet forwarding rate | 44.6Mpps |
| GE RJ45 | 8 (1G/100M/10M) |
| GE SFP | 2 (1G/100M) |
| 10G SFP+ | 2 (10G/1G) |
| Certification | EMC certification Safety certification Manufacturing certification |
| Chassis material | Metal |
| Static power consumption [W] | 5.64 |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 150.0 mm x 44.0 mm x 133.0 mm (5.91 in. x 1.73 in. x 5.24 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 162.0 mm… |
| Dimensions with packaging (H x W x D) [mm(in.)] | 113.0 mm x 235.0 mm x 188.0 mm (4.45 in. x 9.25 in. x 7.40 in.) |
| Installation type | Rack mounting, DIN rail |
| Weight without packaging [kg(lb)] | 0.975 kg (2.15 lb) |
| Weight with packaging [kg(lb)] | 1.34 kg (2.95 lb) |
| Typical power consumption [W] | 12.48 |
| Maximum power consumption [W] | 16.2 W @ 60 V 13.2 W @ 12 V |
| Long-term operating temperature [°C(°F)] | 0–1800 m (0–5906 ft.) altitude, industrial optical modules: - Sealed cabinet: –40°C to +65°C (–40°F to +149°F) - Vented cabinet (≥ 40 LFM): –40°C to +70°C (–40°F to +158°F) - Blower-equipped cabinet (≥ 200 LFM): –40°C to +75°C (–40°F to +167°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Power supply mode | DC external |
| Input voltage range [V] | DC input: 9.6 V DC to 60 V DC |
| Power supply surge protection [kV] | DC power: ±2 kV in common mode and ±1 kV in differential mode |
| Heat dissipation mode | Natural heat dissipation |
| Chassis height [U] | 3.65 |
| Redundant power supply | 1+1 |
| Service port surge protection [kV] | Common mode: ±6 kV |
