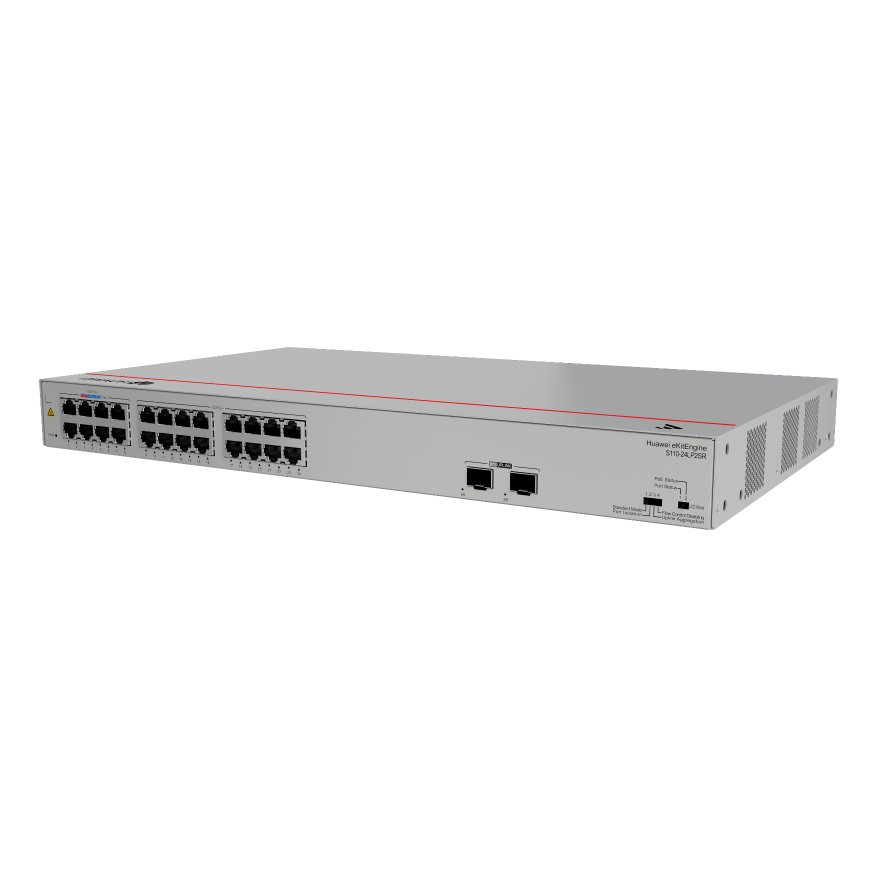

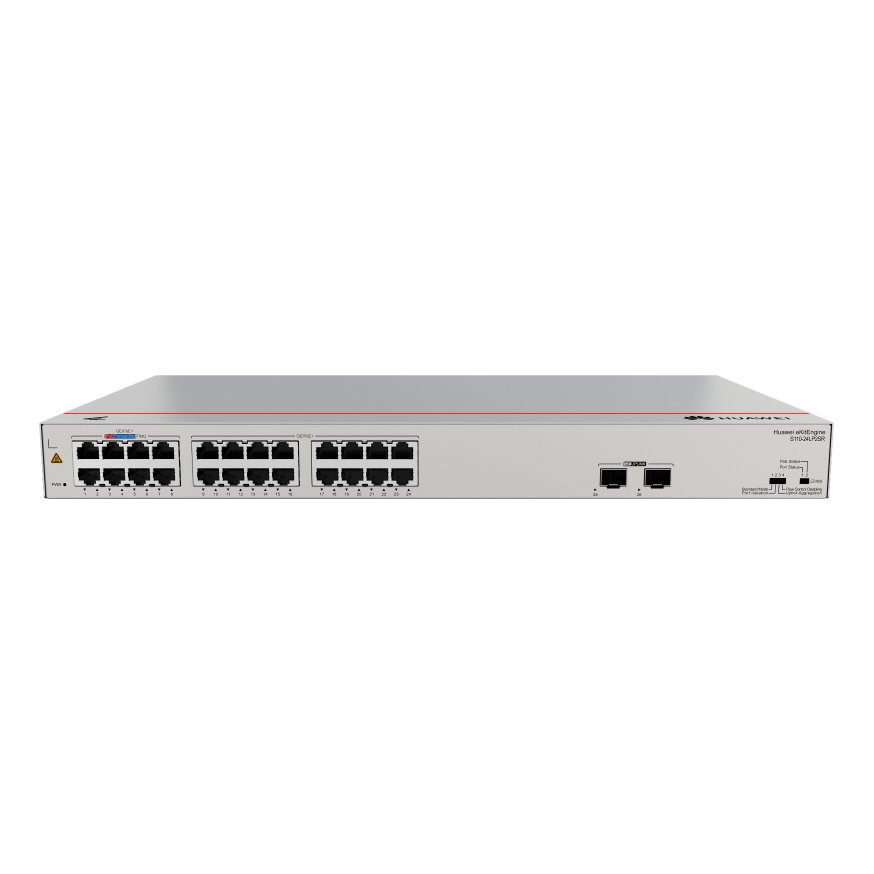

Huawei eKitEngine S110-24LP2SR Unmanaged Switch, 24 x GE, 2 x GE SFP, PoE+
Huawei eKitEngine S110-24LP2SR Unmanaged Switch, 24 x GE, 2 x GE SFP, PoE+ من منتجات سويتش شبكات. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
A Huawei eKit enterprise switch for reliable wired networks in offices, CCTV and Wi-Fi projects, hotels and campuses.
- 24 x 10/100/1000BASE-T ports, 2 x GE SFP ports
- PoE+
- Packet forwarding rate: 38.69 Mpps
- Switching capacity: 52 Gbit/s
عام
| الموديل | S110-24LP2SR |
|---|
Key Features
- 24 x 10/100/1000BASE-T ports, 2 x GE SFP ports
- PoE+
- Packet forwarding rate: 38.69 Mpps
- Switching capacity: 52 Gbit/s
Best Fit Applications
Access and aggregation layers for offices, CCTV projects, hotels and campuses.
Technical Specifications
| Model | S110-24LP2SR |
|---|---|
| Part Number | 98012198 |
| Switching capacity | 52 Gbit/s |
| Packet forwarding rate | 38.69 Mpps |
| GE RJ45 | 24 (PoE+) (1G/100M/10M) |
| PoE | Supported |
| Maximum PoE power consumption [W] | 124 |
| Certification | EMC certification Safety certification Manufacturing certification |
| Chassis material | Metal |
| Static power consumption [W] | 13 |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 260.0 mm (1.72 in. x 17.40 in. x 10.24 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm… |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 555.0 mm x 400.0 mm (3.54 in. x 21.85 in. x 15.75 in.) |
| Installation type | Rack mounting, Desk mounting, Wall mounting |
| Weight without packaging [kg(lb)] | 3.2 kg (7.1 lb) |
| Weight with packaging [kg(lb)] | 3.7 kg (8.16 lb) |
| Typical power consumption [W] | 24 |
| Maximum power consumption [W] | Without PoE: 24 W Full PoE load: 165 W (PoE: 124 W) |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Power supply mode | AC built-in |
| Input voltage range [V] | AC input: 90 V AC to 300 V AC; 47 Hz to 63 Hz |
| Power supply surge protection [kV] | Differential mode: ±6 kV; common mode: ±6 kV |
| Heat dissipation mode | Natural heat dissipation |
