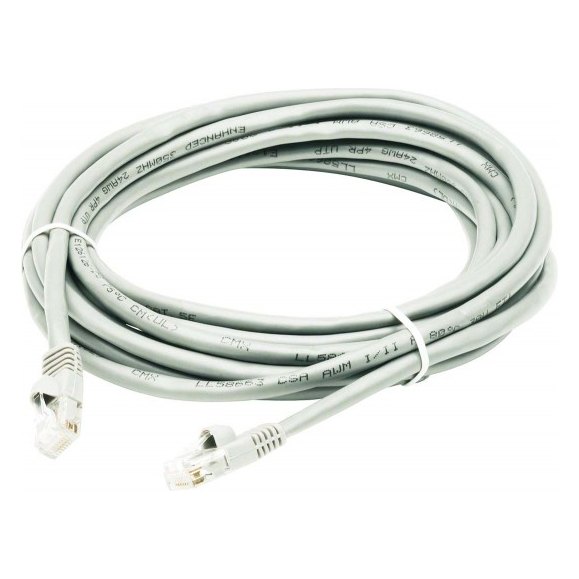

D-Link NCB-C6UGRYR1-5 UTP Patch Cord 5M cat6
D-Link NCB-C6UGRYR1-5 UTP Patch Cord 5M cat6 من منتجات مكون شبكات سلبية. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
A D-Link copper patch cord for connecting network devices, patch panels and outlets.
- Cat6 UTP patch cord
- 5-meter length
- 4-pair unshielded twisted pair construction
- 24 AWG bare copper conductors
- Grey color
عام
| الموديل | NCB-C6UGRYR1-5 |
|---|
Key Features
- Cat6 UTP patch cord
- 5-meter length
- 4-pair unshielded twisted pair construction
- 24 AWG bare copper conductors
- Grey color
- PVC UL94V-0 jacket
Best Fit Applications
Offices, homes, CCTV and network installation projects.
Technical Specifications
| Model | NCB-C6UGRYR1-5 |
|---|---|
| Feature | Specification |
| Product Type | Cat6 UTP Patch Cord |
| Cable Category | Cat6 |
| Cable Type | UTP |
| Length | 5 meters |
| Color | Grey |
| Conductor Material | Bare Copper |
| Conductor Size | 24 AWG |
| Pair Count | 4 Pairs |
| Jacket Material | PVC UL94V-0 |
| Insulation Material | HD-PE |
| Connector | RJ45 8P |
| Contact Material | Phosphor Bronze |
| Contact Plating | 30µ-inch Gold Plated |
| Heat Resistance | 75°C minimum |
| Temperature Range | 20°C to 80°C |
| Dielectric Withstanding Voltage | 500V AC |
| Insulation Resistance | 35 MΩ maximum |
| Connector Durability | 750 Matching Cycles |
| Cable-to-Plug Tensile Strength | 20 lbs / 89 N minimum |
| Application | Ethernet Networking |
| Suitable Network | Gigabit Ethernet |
