كود المنتج:
INBIO-160

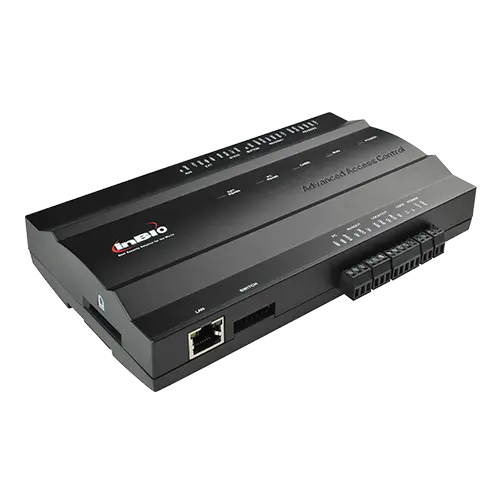

ZkTeco 1-Door IP-based Biometric Door Access Control Panel (inBio Series)
ZkTeco 1-Door IP-based Biometric Door Access Control Panel (inBio Series) (INBIO-160) من منتجات جهاز تحكم في الدخول. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
INBIO-160

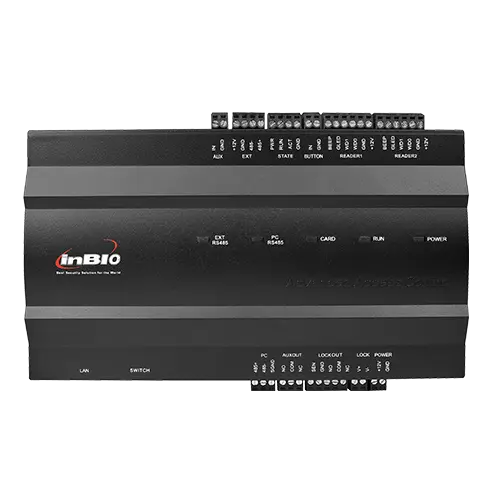

The ZKTeco inBio160 is an IP-based biometric access control panel designed to manage a single door. It is available in several versions, including the standard InBio160, the InBio160 Pro, and the InBio160 Pro Plus, which have varying capacities and features.
Features and capabilities
The InBio160 panel is centered on biometric verification, though it also supports standard RFID card readers and passwords. The panel handles the fingerprint matching process locally, with readers transmitting fingerprint templates via RS485 for quick and accurate authentication.
- Advanced access control: The firmware includes features such as Anti-Passback, First-Card Opening, Multi-Card Opening, Duress Password Entry, and auxiliary input/output linkages.
- Networking: The controller can be easily installed on a network and supports both TCP/IP and RS-485 communication. The "Pro Plus" series also supports HTTP/HTTPS communication for added security.
- Expansion: The InBio160 Pro Plus is capable of connecting to up to eight IO expansion boards, which allow for a greater number of inputs and outputs.
- Data integrity: An SD card on the panel can provide real-time backup for data, ensuring it is preserved even in the event of a power loss or interrupted network connection.
Specifications by model
The specifications vary between the standard InBio160, the InBio160 Pro, and the InBio160 Pro Plus.
| Feature | InBio160 (Standard) | InBio160 Pro | InBio160 Pro Plus |
|---|---|---|---|
| Doors controlled | 1 | 1 | 1 |
| Users | 30,000 cards | 60,000 cards | 100,000 users |
| Fingerprint templates | 3,000 (up to 20,000 optional) | 20,000 | 20,000 |
| Face templates | Not supported | Not supported | 3,000 |
| Transaction log | 100,000 | 100,000 | 500,000 |
| Supported readers | 4 (2 RS-485, 2 Wiegand) | 4 (2 RS-485, 2 Wiegand) | 4 (2 RS-485, 2 Wiegand/OSDP) |
| Communication | TCP/IP, RS-485 | TCP/IP | TCP/IP, RS-485 |
| CPU | 32 bit 400MHz | 32-bit 1.2GHz | Single Core @1.0GHz |
| Operating system | N/A | N/A | Linux OS |
Supported software
The InBio160 controllers are managed by ZKTeco's software platforms:
- ZKBioSecurity: The recommended web-based platform for managing the "Pro" series, it provides a full-featured biometric security solution.
- ZKBioAccess IVS: Compatible with the InBio series, it offers advanced access control features.
- SDK: ZKTeco provides a free Software Development Kit (SDK) for integrators and OEMs who need to integrate the InBio controller with their own security or personnel management applications.
عام
| الموديل | INBIO-160 |
|---|
المواصفات الفنية
| الموديل | INBIO-160 |
| المواصفات | |
| عدد الأبواب | باب واحد |
| عدد القارئات المدعومة | 4 (2 قارئ RS-485، 2 قارئ Wiegand 26/34-bit) |
| أنواع القارئات المدعومة | 26 / 34-bit Wiegand وقارئات RS485 سلسلة FR |
| عدد المداخل | 3 (زر الخروج وحالة الباب، و 1 AUX) |
| عدد المخارج | 2 (ريلاي Form C للقفل وريلاي Form C لخرج إضافي) |
| سعة حاملي الكروت | 30,000 |
| سعة البصمات (اختياري) | 3,000 |
| سعة سجل الأحداث | 100,000 |
| الاتصال | TCP / IP |
| الأبعاد (طول × عرض × ارتفاع) | 185x106x36 mm |
| الوزن الصافي | 0.82 Kg |
| الطاقة | 9.6V-14.4V DC |
| درجة حرارة التشغيل | 0 - 45 °C |
| رطوبة التشغيل | 20% to 80% RH |
| طريقة التركيب | تركيب على الحائط (علبة معدن) |
| الشهادات | ISO9001, ISO14001, CE, FCC |
| البرامج المدعومة | ZKBio Access IVS |
