كود المنتج:
C3-400 Plus

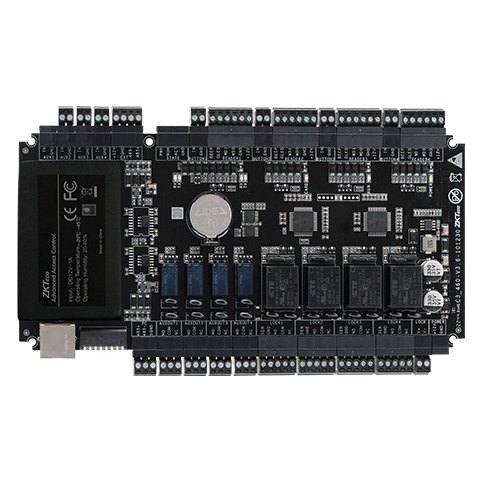

ZKTeco C3-400 Plus 4-Door IP Access Control Panel
ZKTeco C3-400 Plus 4-Door IP Access Control Panel من منتجات جهاز تحكم في الدخول. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
A ZKTeco access control product for secure door entry with biometric / card authentication and ZKTeco software support.
- Operation System: Linux OS
- Hardware: CPU: Single Core @ 1.0GHz / RAM: 128MB; ROM: 256MB
- Authentication Method: Card / Password / QR Code
- Access Point Capacity: 4 Access Points
- Reader Capacity: 8 * RS-485 Readers (ZKTeco RS-485 / OSDP), 4*26 / 34 / 66-bit Wiegand Readers
عام
| الموديل | C3-400 Plus |
|---|
Key Features
- Operation System: Linux OS
- Hardware: CPU: Single Core @ 1.0GHz / RAM: 128MB; ROM: 256MB
- Authentication Method: Card / Password / QR Code
- Access Point Capacity: 4 Access Points
- Reader Capacity: 8 * RS-485 Readers (ZKTeco RS-485 / OSDP), 4*26 / 34 / 66-bit Wiegand Readers
- IO Expansion Board Capacity: 8pcs EX0808 (RS-485 connection)
Best Fit Applications
Offices, companies, factories, schools, hospitals, residential buildings and server rooms.
Technical Specifications
| Model | C3-400 Plus |
|---|---|
| Operation System | Linux OS |
| Hardware | CPU: Single Core @ 1.0GHz / RAM: 128MB; ROM: 256MB |
| Authentication Method | Card / Password / QR Code |
| Access Point Capacity | 4 Access Points |
| Reader Capacity | 8 * RS-485 Readers (ZKTeco RS-485 / OSDP), 4*26 / 34 / 66-bit Wiegand Readers |
| IO Expansion Board Capacity | 8pcs EX0808 (RS-485 connection) |
| User Capacity | 100,000 |
| Card Capacity | 100,000 (1:N) (Standard) |
| QR Code Capacity | 100,000 (Static QR Code / Dynamic QR Code) |
| Transaction Capacity | 500,000 (Standard) |
| Number of Inputs | 4 * Exit Button, 4 * DoorStatus, 4 * AUX Inputs or 64 (with 8pcs of EX0808 IO expansion board) / Noted: Using RS485 connecting EX0808l0 IO expanison board. |
| Number of Outputs | 4 * Form C Relay orLock, 4 * Form C Relay for Aux Output or 64 (with 8pcs of EX0808 IO expansion board) / Noted: Using RS485 connecting EX0808l0 IO expanison board. |
| Max. Card Length | Supports up to 66 bits Card Length |
| QR Code | QR code, PDF417, Data Matrix, MicroPDF417, Aztec scanning in third-party development projects.Dynamic QR codes on the ZKBio CVAccess mobile application. |
| Communication | TCP / IP * 1; RS-485: ZKTeco RS-485 / OSDP *1; Wiegand (Input) * 4; USB: Type A (USB Drive Only) * 1; Aux Inputs * 4; Aux Outputs * 4; Electric Lock * 4, Door Sensor * 4; Exit Button * 4; Alarm * 4 |
| Standard Functions | Webserver, Upto 14-digit User ID, Access Levels, Access Groups, Holidays, Anti-passback, Anti-tailgating, Linkage, Global Linkage, Multiple Verification Methods |
| Access Control Interface | Wiegand (Card Reader) / RS-485 ( RS-485 Card Reader / QR Code Reader) |
| Power Supply | 9.6V - 14.4V DC |
| Operating Temperature | 0℃ to 45℃ |
| Operating Humidity | 20% to 80% RH (Non-condensing) |
| Dimensions (mm) | 215.88 mm*99.14 mm*19.3 mm(L*W*H) |
| Net Weight | 0.252 Kg |
| Supported Software | ZKBio CVAccess |
| Installation | Supported Wall-mount with Metal Enclosure (Optional) |
| Enclosure (Optional) | Size: 350 mm*90 mm*300 mm (L*W*H); Material: SPCC steel; Power Supply Unit: input 110V~240V AC, output 12V 4A+1A DC; Backup Battery: Space reserved [Recommended Backup Battery size: 151 x 94 x 65 mm (L*W*H)] ; Gross Weight: 3.35Kg / Size: 350 mm*90 mm*300 mm (L*W*H); Material: SPCC steel; Power Supply Unit: input 110V~240V AC, output 12V 4A+1A DC; Backup Battery: Space reserved [Recommended Backup |
| Factory ID | AC02-C14H-U10 |
