كود المنتج:
F35

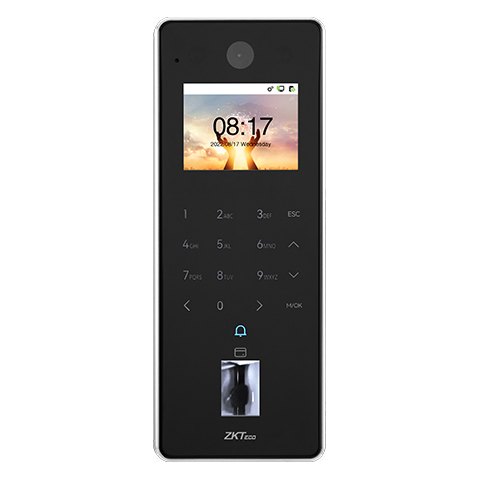

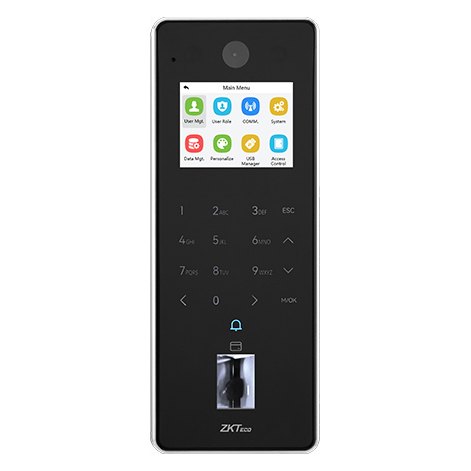

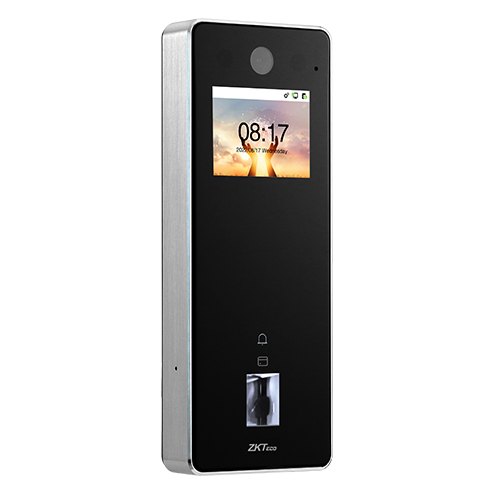

ZKTeco F35 Fingerprint Access Control Terminal with Video Intercom
ZKTeco F35 Fingerprint Access Control Terminal with Video Intercom من منتجات جهاز تحكم في الدخول. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
F35 from ZKTeco is a standalone access control terminal featuring a video intercom function. F35 adopts in-glass fingerprint verification, offering secure biometric authentication without a dedicated button.
- Display: 2.4"@ TFT Color LCD Screen (720*1280)
- Camera: Camera @ 2MP
- Field of View: Diagonal: 145° / Horizontal: 118° / Vertical: 62°
- Operation System: Linux
- Authentication Method: Fingerprint / Card / Password (Physical Touch Keypad )
عام
| الموديل | F35 |
|---|
Key Features
- Display: 2.4"@ TFT Color LCD Screen (720*1280)
- Camera: Camera @ 2MP
- Field of View: Diagonal: 145° / Horizontal: 118° / Vertical: 62°
- Operation System: Linux
- Authentication Method: Fingerprint / Card / Password (Physical Touch Keypad )
- User Capacity: 10,000 (1:N)
Best Fit Applications
Offices, companies, factories, schools, hospitals, residential buildings and server rooms.
Technical Specifications
| Model | F35 |
|---|---|
| Display | 2.4"@ TFT Color LCD Screen (720*1280) |
| Camera | Camera @ 2MP |
| Field of View | Diagonal: 145° / Horizontal: 118° / Vertical: 62° |
| Operation System | Linux |
| Hardware | CPU: 1.2GHz Dual Core / RAM: 256MB; ROM: 512MB / Speaker: 8ohms±20% @1.0W / Microphone: *1 (Sensitivity: -29 to -35 dB / Omni-directional / Signal-to-Noise Ratio: 58 dB / Impedance: 2.2 kΩ / Fingerprint Sensor: In-Glass Fingerprint (Z-ID) |
| Authentication Method | Fingerprint / Card / Password (Physical Touch Keypad ) |
| User Capacity | 10,000 (1:N) |
| Card Capacity | 10,000 (1:N) |
| Fingerprint Template Capacity | 10,000 (1:N) |
| Transaction Capacity | 500,000 |
| Max. User Password Length | 6 to 8 Digits |
| Biometric Verification Speed | less than 0.3 sec (Fingerprint) |
| False Acceptance Rate (FAR) % | FAR ≦ 0.0001% (ZKFingerprint V10.0) |
| False Rejection Rate (FRR) % | FRR ≦ 0.01% (ZKFingerprint V10.0) |
| Biometric Algorithm | ZKFingerprint V10.0 |
| Support Card Type | ID Card@125 kHz (Standard) / Optional Multi-Tech Module: / Module1: ID & IC & DESFire EV1 / EV2; (125 kHz & 13.56 MHz Dual Frequency) / Module 2: ID & IC & DESFire EV1 / EV 2 & FeliCa & Legic & HID Prox (125 kHz & 13.56 MHz Dual Frequency) / Module 3: ID & IC & DESFire EV1 / EV2 & FeliCa & Legic & HID Prox & HID iClass (125 kHz & 13.56 MHz Dual Frequency) / Module 4: ID & IC & DESFire Encrypted; ( |
| Communication | TCP/IP*1 / Wi-Fi (IEEE802.11a/g/n) @ 2.4 GHz / Wiegand (Input & Output)*1 / RS485: ZKTeco RS485 *1 / Aux Inputs *1, Aux Outputs *1, Electric Lock*1, Door Sensor*1, Exit Button*1, Alarm*1, Doorbell*1 |
| Standard Functions | Webserver, ADMS, DST, Photo Capture, Event Photo Capture, Up to 14-digit User ID, Access Levels, Groups, Holidays, Anti Passback, Record Query, Tamper Switch Alarm, Multiple Verification Methods Video Door Phone, ONVIF (Compatible with Profile S, Profile T, Profile G, Profile C, Profile Q & Profile A), AC Push and TA Push, Protocol Switch, HTTPS / SSH Backend Access, T9 Keyboard / (Input) |
| Optional Functions | ZSmart, SIP Client (Ver2.0), Wi-Fi, IC Card, Multi-Tech Module: Module 1 / Module2 / Module3 / Module 4, Wireless Doorbell |
| Access Control Interface | RS485 (DM10 Controller 1 Door Expansion (Coming soon) / RS485 Card Reader / Fingerprint Reader) |
| Power Supply | DC 12V 3A |
| Operating Temperature | -5℃ to 55℃ (23 ℉ to 131 ℉ ) |
| Operating Humidity | 10% to 90% RH (Non-condensing) |
| Dimensions | 195 mm*75 mm*25.35 mm (L*W*H) |
| Net Weight | 0.52 Kg |
| Supported Software | Software: ZKBio CVAccess / ZKBioTime / Mobile App: ZSmart |
| Installation | Wall-mount (Compatible with Asian Gang-box / Single Gang-Box / European Gang-Box) |
| Housing Material | Aluminium Alloy |
| Ingress Protection Rating | IP65 (waterproof and dustproof ) / IK04 (Vandal Resistant) |
