ZkTeco Fingerprint T&A and Access Control Terminal with Wi-Fi
ZkTeco Fingerprint T&A and Access Control Terminal with Wi-Fi (F22) مناسب لمشروعات Access Control التي تحتاج إلى مواصفات واضحة وتوافق عملي مع أنظمة المراقبة أو الشبكات أو التحكم في الدخول، مع دعم دو لينك في مصر.
F22

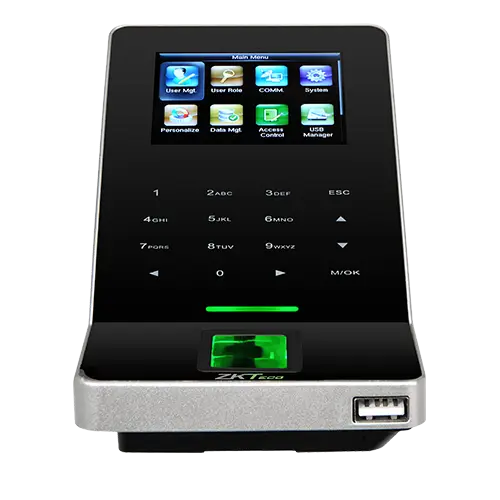

The ZKTeco F22 is an ultra-thin, biometric terminal used for time attendance and access control. It features a BioID fingerprint sensor, a 2.4-inch color LCD screen, and a touch keypad. The device is designed for easy installation and is suitable for various applications, including offices, factories, and other institutions.
Features and functions
- Sensor: High-performance, high-image quality infrared detection fingerprint sensor. It uses an advanced algorithm for fast, precise, and reliable matching speed.
- Communication: Connects via Wi-Fi, TCP/IP, USB host, or RS485.

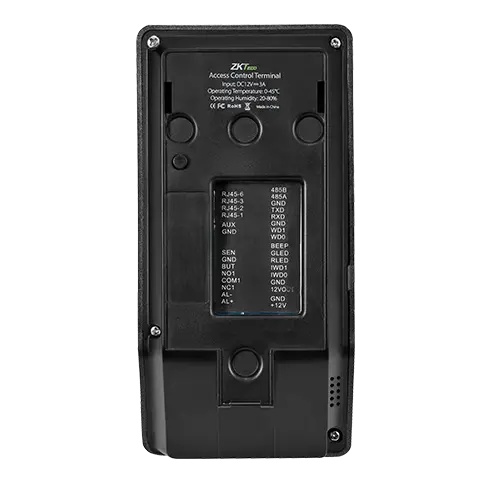

- Access control: Includes a full range of access control features such as an anti-passback function and an interface to connect with a third-party electric lock, door sensor, exit button, or alarm. It can operate as a standalone device or be connected to a separate access control panel that supports a standard Wiegand signal.
- Time attendance: Records employee attendance via fingerprint or optional RFID/IC cards. The device's capabilities include an automatic status switch, scheduled bell, and record query.
- Software: Compatible with ZKTeco's ZKBioAccess software, which can generate reports for time attendance, including work shifts, overtime, and late arrivals.
- Display: Features a 2.4-inch TFT LCD color screen and sensitive touch keypad for a superior user experience.
Specifications
According to the official specifications provided by ZKTeco:
- Dimensions: 158.5 x 78.0 x 19.4 mm (L x W x H).
- Fingerprint capacity: 3,000 templates.
- Card capacity: 5,000 (optional ID or IC cards).
- Transaction capacity: 30,000 logs.
- Power supply: 12V DC, 3A.
- Operating temperature: 0 °C to 45 °C.
- Operating humidity: 20% to 80%.
![[F22] ZkTeco Fingerprint T&A and Access Control Terminal with Wi-Fi](/web/image/product.template/325/image_256)
