كود المنتج:
TLEB101
ZkTeco Touchless Exit Button
ZkTeco Touchless Exit Button (TLEB101) من منتجات جهاز تحكم في الدخول. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
TLEB101
The ZKTeco TLEB101 is a touchless exit button that uses infrared technology for hands-free and contactless operation. The device is designed to be a hygienic and convenient "request to exit" (REX) solution for access control systems.
Key features
- Touchless infrared sensor: The button uses an infrared sensor to detect a hand wave from a short distance, triggering the door release.
- Material: The shell is constructed from SUS304 stainless steel, which is durable and resistant to corrosion.
- LED indicators: Two LED indicators show the status of the button:
- Blue: The button is on standby.
- Red: The button has been approached within its detection range.
- Ideal for sterile environments: Its contactless operation makes it suitable for sterile or hygienic environments like hospitals, food processing plants, and laboratories.
- User-friendly: It's a convenient option for elderly or handicap users, as they don't need to physically press a button to exit.
Technical specifications
- Switching voltage: DC 9–16V
- Rated current: 2A
- Operating temperature: -20°C to +50°C
- Operating humidity: 10%–90%
- Distance range of IR sensor: 2–10 cm
- Dimensions (LWH): 86mm * 86mm * 38mm

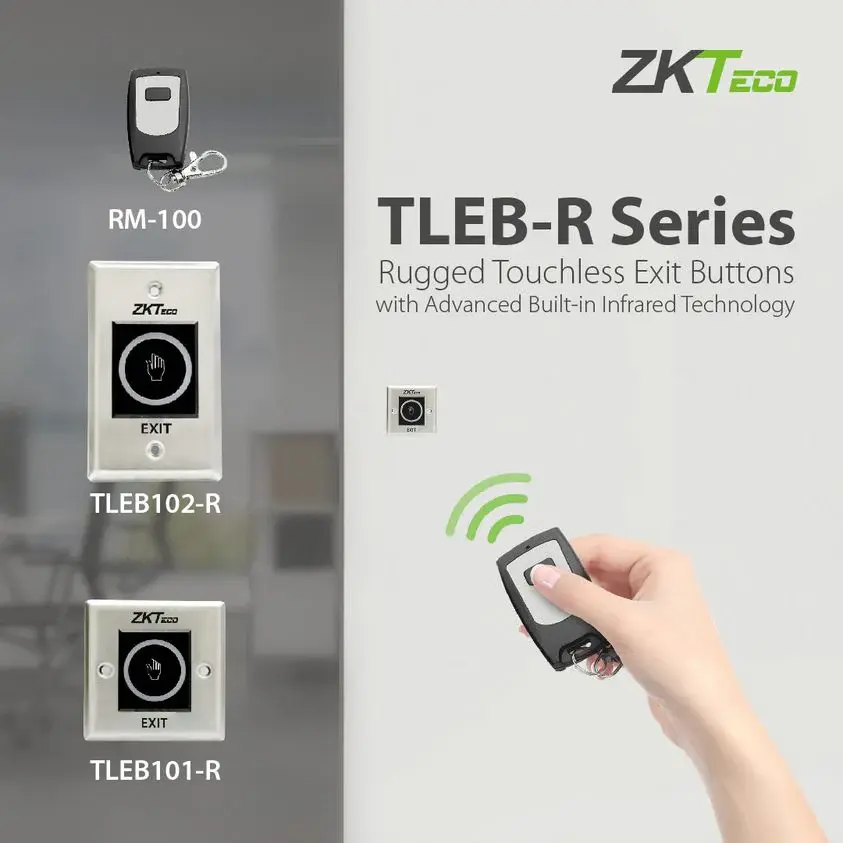

Related model: TLEB101-R
The TLEB101-R is a variant of the touchless exit button that features additional functionality. According to the manual on manuals.plus, the TLEB-R series offers the following:
- IP rating: IP65 ingress protection, making it resistant to dust and water.
- Remote control: It can be activated via an RM-100 remote key, which has a sensing range of up to 10 meters.
- Higher sensing range: The infrared detection distance is 10–25 cm.
- Relay output: A high-capacity dry contact relay (3A/AC120V, DC30V) allows for connection to other devices like alarms.
- Dimensions: 86mm x 86mm x 25mm.
عام
| الموديل | TLEB101 |
|---|
المواصفات الفنية
| الموديل | TLEB101 |
| المواصفات | |
| جهد التحويل | DC 9 ~ 16V |
| التيار المقنن | 2A |
| درجة حرارة التشغيل | -20°C ~ +50°C |
| درجة حرارة التخزين | -20°C ~ +65°C |
| رطوبة التشغيل | 10% - 90% |
| خامة الجسم | ستانلس ستيل SUS304 |
| مدى حساس IR | 2 - 10cm |
| الأبعاد | 86mm * 86mm * 38mm (L*W*H) |
