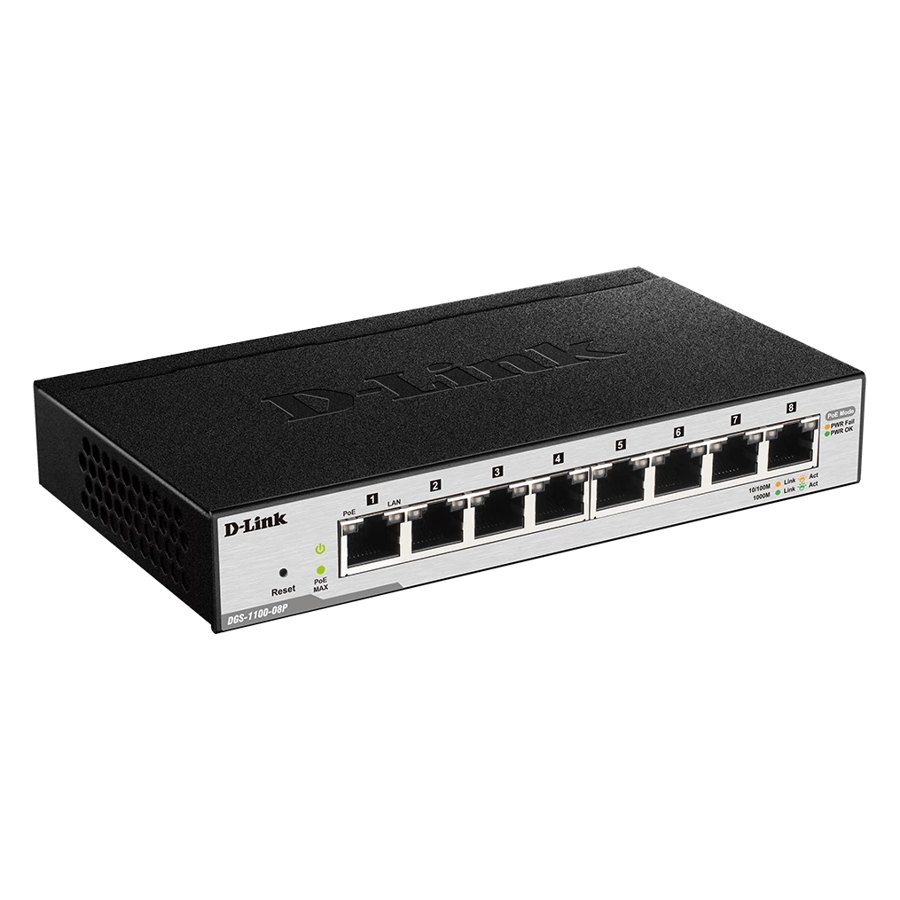

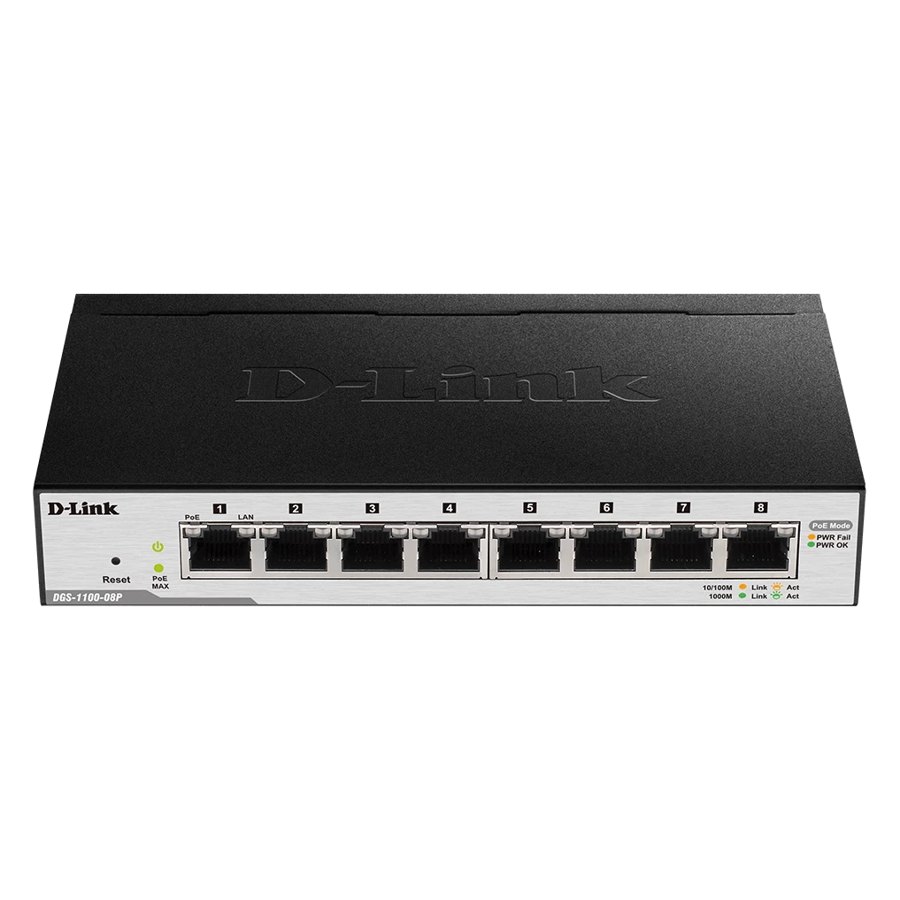

D-Link DGS-1100-08P Switch
D-Link DGS-1100-08P Switch من منتجات سويتش شبكات. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
A D-Link network switch for offices, CCTV / PoE projects and business networks.
- Switch
- Port-based Bandwidth Control: Yes
- Class of Service (CoS): Yes
- 802.3x Flow Control: Yes
- Head-of-line (HOL) Blocking Prevention: Yes
عام
| الموديل | DGS-1100-08P |
|---|
Key Features
- Switch
- Port-based Bandwidth Control: Yes
- Class of Service (CoS): Yes
- 802.3x Flow Control: Yes
- Head-of-line (HOL) Blocking Prevention: Yes
Best Fit Applications
Offices, CCTV projects, shops, hotels and business networks.
Technical Specifications
| Model | DGS-1100-08P |
|---|---|
| Port-based Bandwidth Control | Yes |
| Class of Service (CoS) | Yes |
| 802.3x Flow Control | Yes |
| Head-of-line (HOL) Blocking Prevention | Yes |
| Store-and-Forwarding | Yes |
| Comply with RoHS 6 | Yes |
| Energy Efficiency Ethernet (EEE) | Yes |
| 1000Base-T PoE Interface | 8 |
| Auto MDI/MDIX | Yes |
| 10/100/1000BASE-T PoE ports | 8 |
| DRAM Size | 48K Bytes |
| CPU Speed | 62.5 MHz |
| Flash Memory Size | 2 MB |
| Packet Buffer Size | 1.5 Mbits |
| FAN | Fanless |
| Jumbo Frame | 9216 bytes |
| Loopback Detection (LBD) | Yes |
| MAC Address Table Size | 4160 |
| IGMP Snooping | Yes |
| Max IGMP Snooping Groups | 128 |
| Link Aggregation Group Per Device | 2 (static port trunk) |
| Max Port Per Link Aggregation Group | 4 (static port trunk) Only port 1-4 for group 1 Only port 5-8 for group 2 |
| Web-based GUI | Yes |

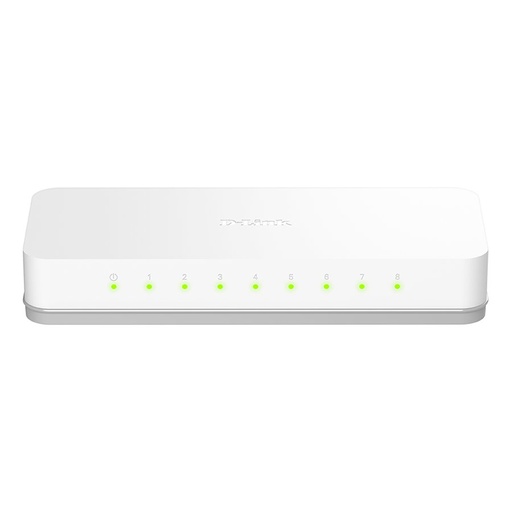

![[DES-1008A] D-Link DES-1008A 8-Port Fast Ethernet Unmanaged Switch](/web/image/product.template/3289/image_512)
