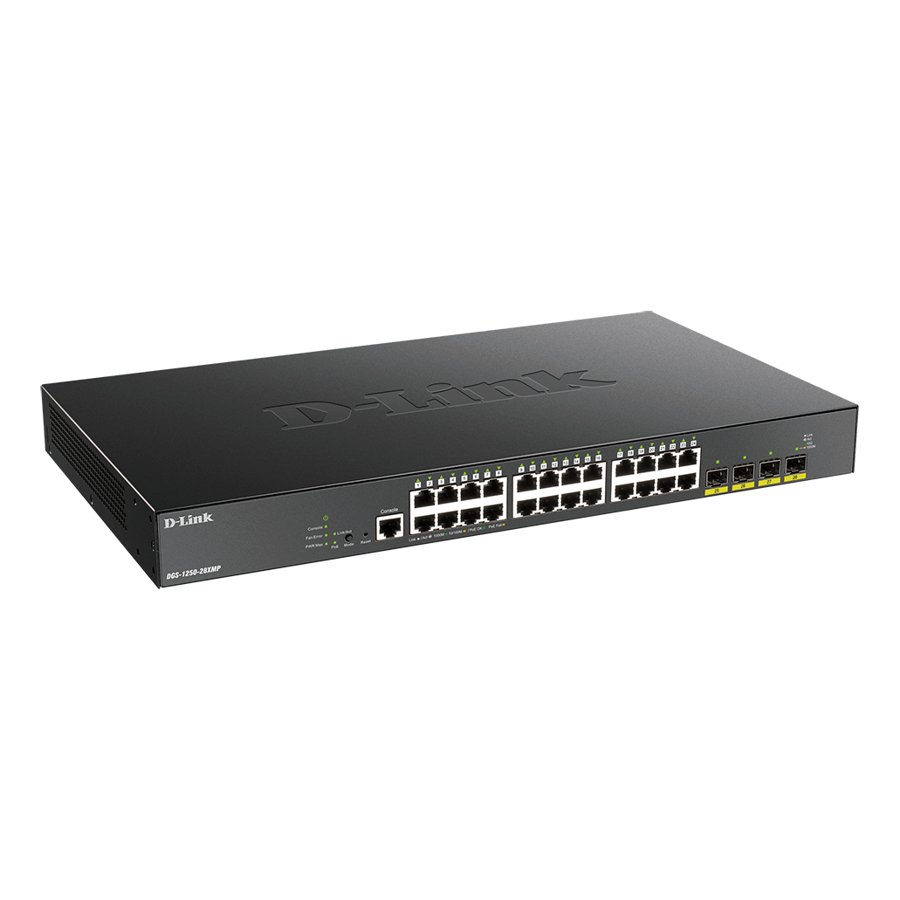

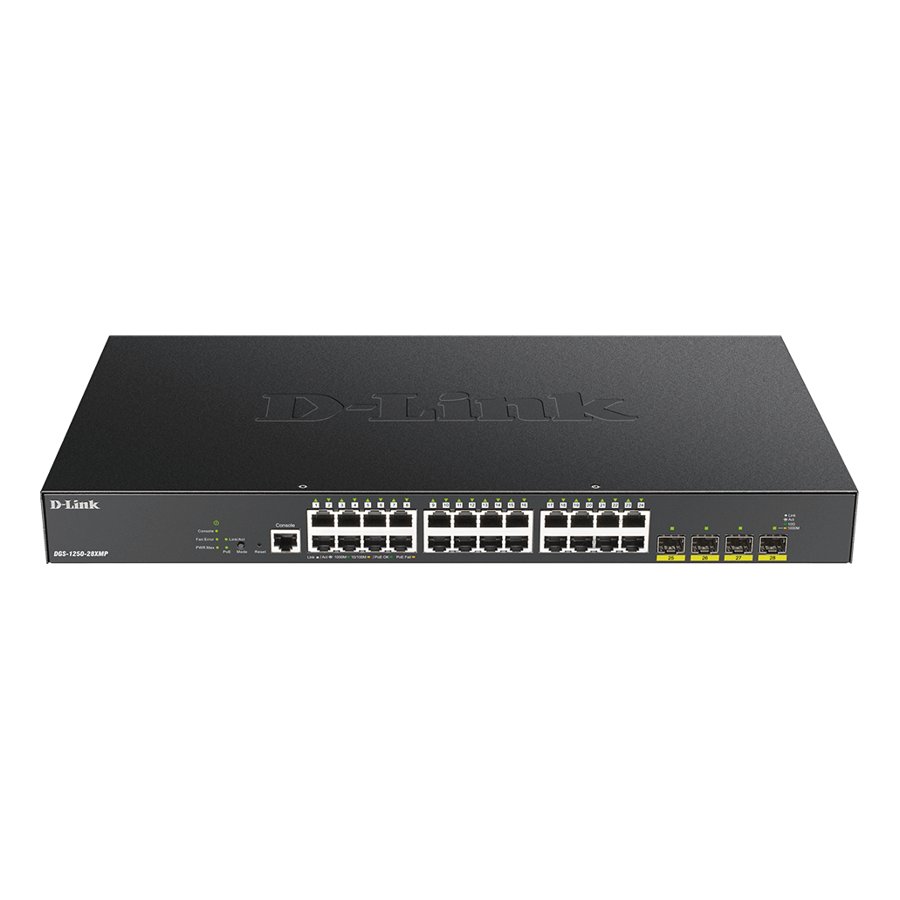

D-Link DGS-1250-28XMP 28-Port 10-Gigabit Smart Managed PoE Switch
D-Link DGS-1250-28XMP 28-Port 10-Gigabit Smart Managed PoE Switch من منتجات سويتش شبكات. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
A D-Link network switch for offices, CCTV / PoE projects and business networks.
- 28-Port 10-Gigabit Smart Managed PoE Switch
- Interfaces: 24 x 10/100/1000BASE-T ports 4 x 10G SFP+ ports
- Switch Capacity: 128 Gbps
- PoE Power Budget: 370 W
- Max. Packet Forwarding Rate: 95.24 Mpps
عام
| الموديل | DGS-1250-28XMP |
|---|
Key Features
- 28-Port 10-Gigabit Smart Managed PoE Switch
- Interfaces: 24 x 10/100/1000BASE-T ports 4 x 10G SFP+ ports
- Switch Capacity: 128 Gbps
- PoE Power Budget: 370 W
- Max. Packet Forwarding Rate: 95.24 Mpps
Best Fit Applications
Offices, CCTV projects, shops, hotels and business networks.
Technical Specifications
| Model | DGS-1250-28XMP |
|---|---|
| Interfaces | 24 x 10/100/1000BASE-T ports 4 x 10G SFP+ ports |
| Switch Capacity | 128 Gbps |
| PoE Power Budget | 370 W |
| Max. Packet Forwarding Rate | 95.24 Mpps |
| Maximum Heat Dissipation | PoE ON: 1551.891 BTU/hr (100 V) 1471.415 BTU/hr (240 V) PoE Off: 131.626 BTU/hr (100 V) 133.331 BTU/hr (240 V) |
| Max Power Consumption | PoE ON: 455.1 W/100 V 431.5 W/240 V PoE Off: 38.6 W/100 V 39.1 W/240 V |
| MTBF | 463,430.16 hours |
| Power Input | 100 to 240 V AC |
| CPU Speed | 800MHz |
| Packet Buffer Size | 12 Mbits |
| FAN | Smart Fan |
| Flash Memory Size | 64MB |
| DRAM Size | DDR3 2G |
| Operating Altitude | 1500 m |
| Humidity | Operating: 0% - 95% RH Storage: 0% - 95% RH |
| Temperature | Operating: -5 to 50° C (23 to 122° F) Storage -20 - 70°C |
| Dimensions | 440mm x 250mm x 44mm |
| Weight | 3.46 kg |
