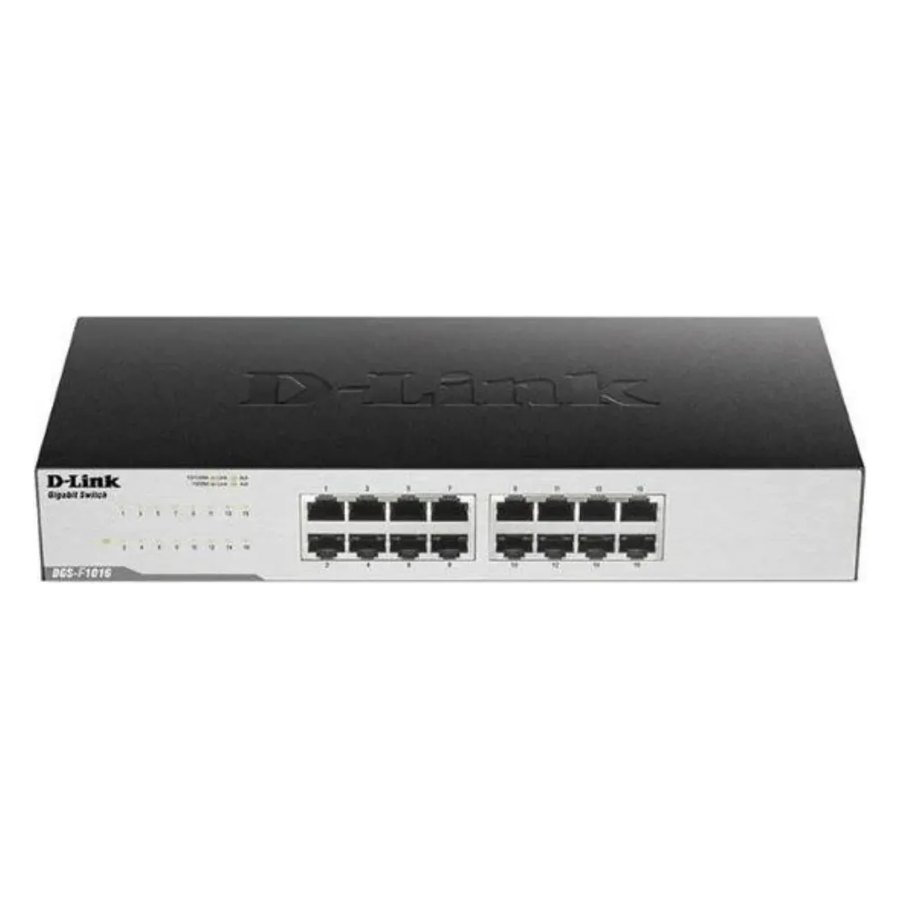

D-Link DGS-F1016 16 Port Gigabit Rackmount Switch
D-Link DGS-F1016 16 Port Gigabit Rackmount Switch من منتجات سويتش شبكات. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
A D-Link network switch for offices, CCTV / PoE projects and business networks.
- 16 Port Gigabit Rackmount Switch
- Feature: Specification
- Number of Ports: 16
- Port Type: 10/100/1000Mbps Gigabit Ethernet
عام
| الموديل | DGS-F1016 |
|---|
Key Features
- 16 Port Gigabit Rackmount Switch
- Feature: Specification
- Number of Ports: 16
- Port Type: 10/100/1000Mbps Gigabit Ethernet
Best Fit Applications
Offices, CCTV projects, shops, hotels and business networks.
Technical Specifications
| Model | DGS-F1016 |
|---|---|
| Feature | Specification |
| Product Type | Unmanaged Gigabit Switch |
| Number of Ports | 16 |
| Port Type | 10/100/1000Mbps Gigabit Ethernet |
| Switching Capacity | 32Gbps |
| Forwarding Rate | 23.81Mpps |
| Data Transfer Rate | Up to 2000Mbps Full Duplex |
| Switching Method | Store-and-Forward |
| Auto MDI/MDIX | Yes |
| Auto-Negotiation | Yes |
| IEEE 802.3x Flow Control | Yes |
| IEEE 802.1p QoS | Yes |
| QoS Queues | 8 |
| IEEE 802.3az EEE | Yes |
| Cable Length Power Saving | Yes |
| Link Status Power Saving | Yes |
| Cable Diagnostics | Yes |
| Jumbo Frame | 9,216 Bytes |
| MAC Address Table | 8,000 Entries |
| Packet Buffer | 512KB |
| Housing | Metal |
| Rackmount | Yes |
| Rack Brackets | Included |
