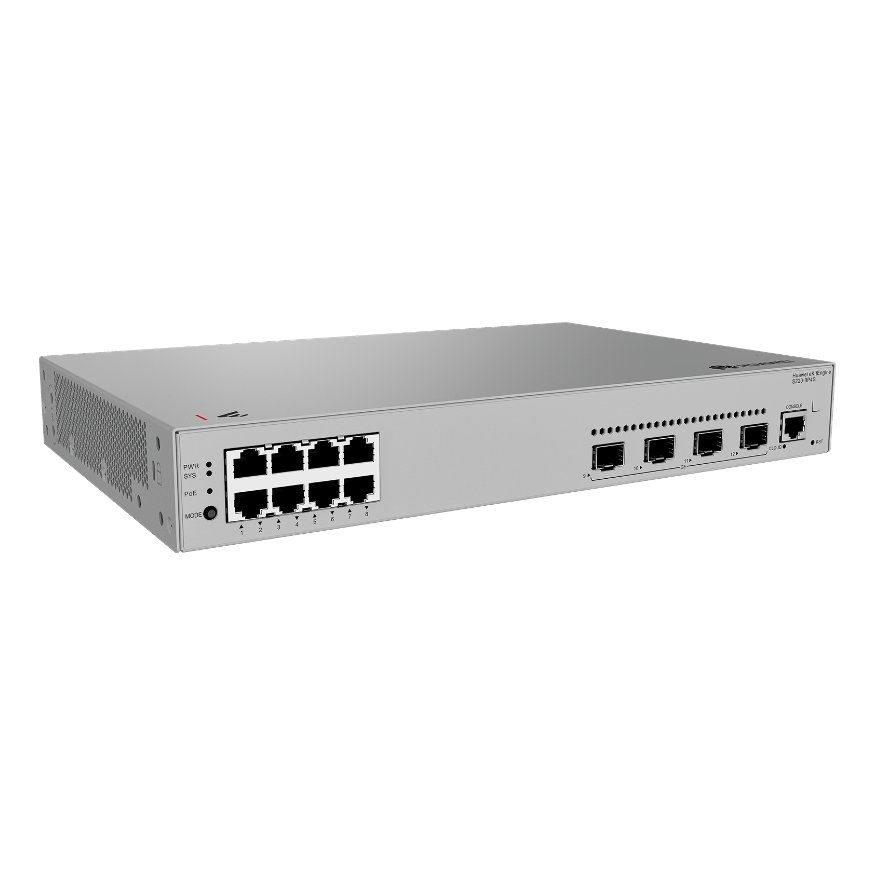

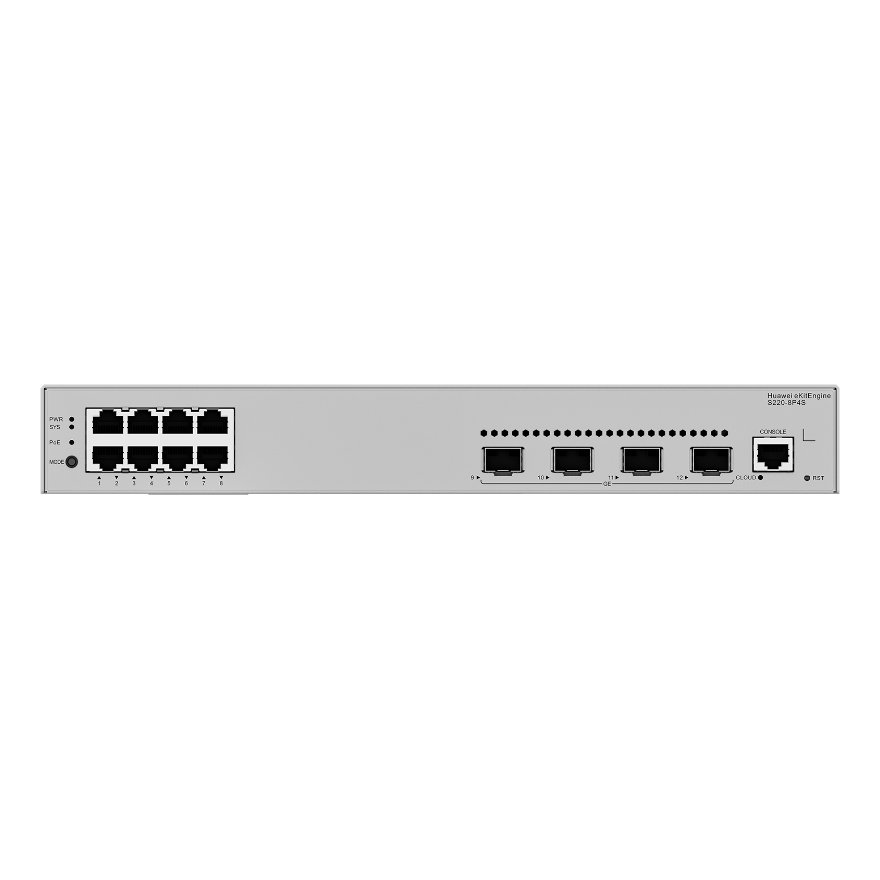

Huawei eKitEngine S220-8P4S Smart Managed Switch, 8 x GE, 4 x GE SFP, PoE+
Huawei eKitEngine S220-8P4S Smart Managed Switch, 8 x GE, 4 x GE SFP, PoE+ من منتجات سويتش شبكات. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
A Huawei eKit enterprise switch for reliable wired networks in offices, CCTV and Wi-Fi projects, hotels and campuses.
- 8 x 10/100/1000BASE-T, 4 x GE SFP ports ports
- 125W PoE+
- built-in AC power
- Packet forwarding rate: 18 Mpps
- Switching capacity: 24 Gbit/s
عام
| الموديل | S220-8P4S |
|---|
Key Features
- 8 x 10/100/1000BASE-T, 4 x GE SFP ports ports
- 125W PoE+
- built-in AC power
- Packet forwarding rate: 18 Mpps
- Switching capacity: 24 Gbit/s
Best Fit Applications
Access and aggregation layers for offices, CCTV projects, hotels and campuses.
Technical Specifications
| Model | S220-8P4S |
|---|---|
| Part Number | 98012552 |
| Switching capacity | 24 Gbit/s |
| Packet forwarding rate | 18 Mpps |
| GE RJ45 | 8 (PoE+) (1G/100M/10M) |
| GE SFP | 4 (1G) |
| Certification | EMC certification Safety certification Manufacturing certification |
| Chassis material | Metal |
| Static power consumption [W] | 17.19 |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 320.0 mm x 210.0 mm (1.72 in. x 12.6 in. x 8.27 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x… |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 465.0 mm x 380.0 mm (3.54 in. x 18.31 in. x 14.96 in.) |
| Installation type | Rack mounting, Desk mounting, Wall mounting |
| Weight without packaging [kg(lb)] | 2.5 (5.51) |
| Weight with packaging [kg(lb)] | 3.05 kg (6.72 lb) |
| Typical power consumption [W] | 19.99 |
| Maximum power consumption [W] | - Without PoE: 25.09 W - Full PoE load: 166.65 W (PoE: 125 W) |
| Number of fans modules | 1 |
| Long-term operating temperature [°C(°F)] | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Power supply mode | AC built-in |
| Input voltage range [V] | AC input: 90 V AC to 300 V AC; 47 Hz to 63 Hz |
| Power supply surge protection [kV] | Differential mode: ±6 kV; common mode: ±6 kV |
| Types of fans | Built-in |
| Heat dissipation mode | Air cooling for heat dissipation, intelligent fan speed adjustment |
| Airflow direction | Air intake from left and front, air exhaustion from right |
