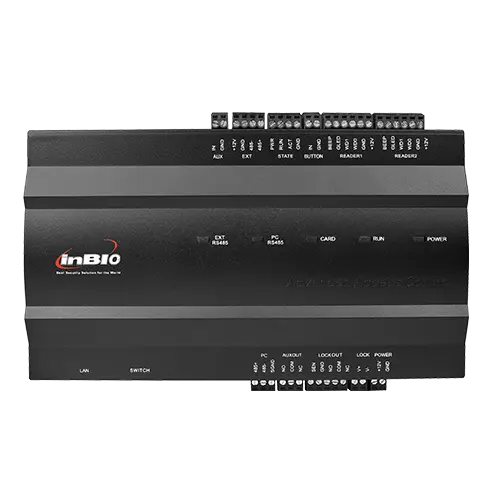

ZkTeco 1-Door IP-based Biometric Door Access Control Panel (inBio Series)
ZkTeco 1-Door IP-based Biometric Door Access Control Panel (inBio Series) (INBIO-260) من منتجات جهاز تحكم في الدخول. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
INBIO-260
The ZKTeco inBio-260 is a two-door IP-based biometric access control panel. It is part of the ZKTeco inBio series, designed for advanced security and access management. There are also newer "Pro" and "Pro Plus" versions of this panel with updated features.
Key features
- Capacity: Supports up to 3,000 fingerprint templates, 30,000 card users, and 100,000 event transactions. Newer Pro Plus models may offer increased capacity.
- Biometric integration: Capable of matching fingerprints directly on the panel when used with ZKTeco's FR Series of RS485 readers.
- Reader support: Features Wiegand inputs for traditional RFID readers, along with RS485 for biometric readers.
- Communication: Installs easily on a network using both TCP/IP and RS-485 communication.
- Advanced access control: The controller's firmware includes features like anti-passback, first-card opening, and multi-card opening.
- Auxiliary relays: Offers additional control and interface for auxiliary relays, which can be configured for lights, alarms, or intrusion detection.
- Data integrity: Preserves data even in the event of a power loss. The panel can also continue to operate if the network connection is interrupted.
Software integration
The inBio series can be integrated with security management platforms like ZKTeco's ZKBioSecurity software. An SDK is also available for developers to integrate the panel with their own applications.
عام
| الموديل | INBIO-260 |
|---|
المواصفات الفنية
| الموديل | INBIO-260 |
| المواصفات | |
| عدد الأبواب | 2 باب |
| عدد القارئات المدعومة | 8 (4 قارئ RS-485، 4 قارئ Wiegand 26/34-bit) |
| أنواع القارئات المدعومة | 26 / 34-bit Wiegand وقارئات RS485 سلسلة FR |
| عدد المداخل | 6 (2 جهاز خروج، 2 حالة باب، 2 AUX) |
| عدد المخارج | 4 (2 ريلاي Form C للقفل و2 ريلاي Form C لخرج إضافي) |
| سعة حاملي الكروت | 30,000 |
| سعة البصمات (اختياري) | 3,000 |
| سعة سجل الأحداث | 100,000 |
| الاتصال | TCP / IP |
| الأبعاد (طول × عرض × ارتفاع) | 185x106x36 mm |
| الوزن الصافي | 0.93 Kg |
| الطاقة | 9.6V-14.4V DC |
| درجة حرارة التشغيل | 0 - 45 °C |
| رطوبة التشغيل | 20% to 80% RH |
| طريقة التركيب | تركيب على الحائط (علبة معدن) |
| الشهادات | ISO9001, ISO14001, CE, FCC |
| البرامج المدعومة | ZKBio Access IVS |
