كود المنتج:
InBioPC-800

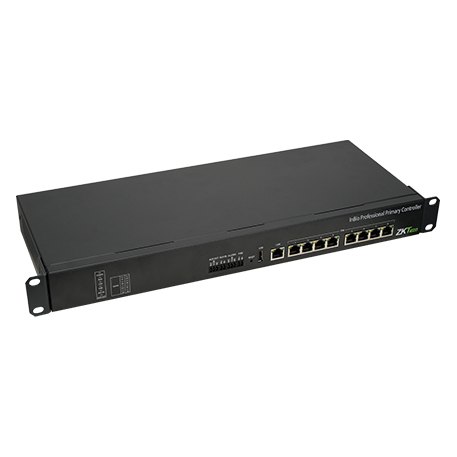

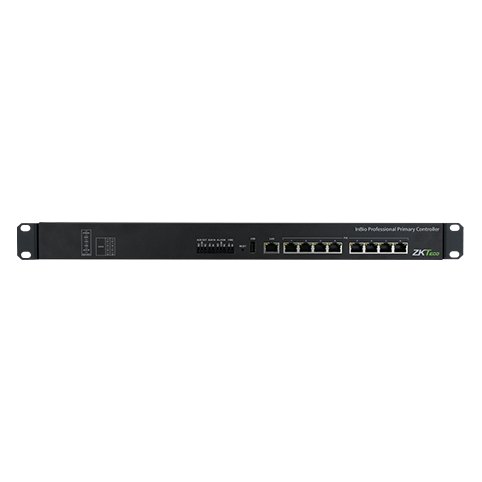

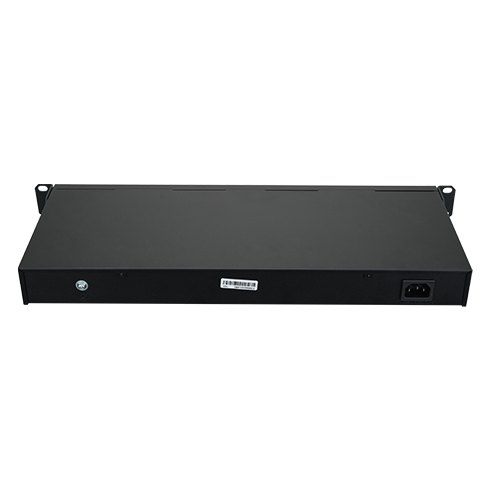

ZKTeco InBioPC-800 IP Access Control Main Controller (up to 8 doors with DE10)
ZKTeco InBioPC-800 IP Access Control Main Controller (up to 8 doors with DE10) من منتجات جهاز تحكم في الدخول. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
A ZKTeco access control product for secure door entry with biometric / card authentication and ZKTeco software support.
- Operation System: Linux
- Hardware: CPU: Dual Core@1.0GHz / RAM: 128MB; / ROM: 256MB
- Authentication Method: Card / Password / Fingerprint / QR code
- Access Point Capacity: Onboard Access Point: 0; Max Access Point: 8 (with DE10 Door Unit)
- Fingerprint Template Capacity: 4,000 (1:N) (Standard)
عام
| الموديل | InBioPC-800 |
|---|
Key Features
- Operation System: Linux
- Hardware: CPU: Dual Core@1.0GHz / RAM: 128MB; / ROM: 256MB
- Authentication Method: Card / Password / Fingerprint / QR code
- Access Point Capacity: Onboard Access Point: 0; Max Access Point: 8 (with DE10 Door Unit)
- Fingerprint Template Capacity: 4,000 (1:N) (Standard)
- Card Capacity: 40,000 (1:N) (Standard)
Best Fit Applications
Offices, companies, factories, schools, hospitals, residential buildings and server rooms.
Technical Specifications
| Model | InBioPC-800 |
|---|---|
| Onboard Visual Indicator | POWER (RED): ON - Power Normal,OFF - No Power; / RUN (GREEN): Slow Flashing - Normal Use, Flashing - Host not connected, OFF - No Power; / LAN (GREEN): Steady on - No data interaction, Flashing - Data in Interaction,OFF - Network Connection Abnormal; / FIRE (RED): Flashing - In Fire Alarm, OFF - No Fire Alarm; / AUX IN (RED): Flashing - In Alarm, OFF - No Alarm; / DOOR (GREEN): Steady ON - Door Cl |
| Operation System | Linux |
| Hardware | CPU: Dual Core@1.0GHz / RAM: 128MB; / ROM: 256MB |
| Authentication Method | Card / Password / Fingerprint / QR code |
| Access Point Capacity | Onboard Access Point: 0; Max Access Point: 8 (with DE10 Door Unit) |
| Fingerprint Template Capacity | 4,000 (1:N) (Standard) |
| Card Capacity | 40,000 (1:N) (Standard) |
| QR Code Capacity | 40,000 (QR Code and Dynamic QR Code) |
| Supported Biometric Algorithm | ZKFingerprint V10.0 |
| Max. Card Length | Supports up to 66 bits Card Length |
| User Capacity | 40,000 |
| QR Code | Dynamic QR codes on the ZKBio Zexus Mobile APP; Static QR Code (Data Matrix, PDF417, GS1 Databar, Code 128 / EAN128, UPC / EAN, Codabar, Code 39 / 93) |
| Transaction Capacity | 200,000 (Standard) |
| Communication | TCP/IP*1 Wi-Fi (IEEE802.11b/g/n/, 1T1R @ 2.4 GHz) (Wi-Fi only for webserver access) |
| Number of Inputs | 1*AUX Inputs, 1*FIRE |
| Number of Outputs | 1*Form C Relay for Aux Output / 1*Form C Relay for Alarm |
| Standard Functions | Webserver, Upto 14-digit User ID, Access Levels, Access Groups, Holidays, Anti-passback, Anti-tailgating, Linkage, Global Linkage, Multiple Verification Methods |
| Verification Speed | Less than 0.3 sec (Fingerprint) |
| Power Supply | Power Input: AC 100V~240V; Power Ouput: PoE (IEEE802.3at PSE@30W output) *8 |
| Operating Temperature | 0°C to 45°C |
| Operating Humidity | 20% to 80% RH (Non-condensing) |
| Dimensions (L * W * H) | 440mm*180mm*45mm (Standard 1U Server Rack Size) |
| Net Weight | 2.179Kg |
| Supported Software | Software: ZKBio CVSecurity ; Mobile APP: ZKBio Zexus |
| Installation | Supported Rack-mount (Compatabile with Standard Server Rack) / Wall-mount / Desktop |
| Housing Material | SGCC Steel (Steel Galvanized Cold Commercial) |
| Factory ID | AC02-CB608H-16 |
