كود المنتج:
KR901

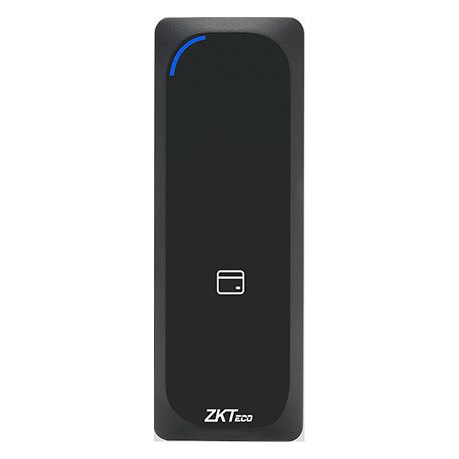

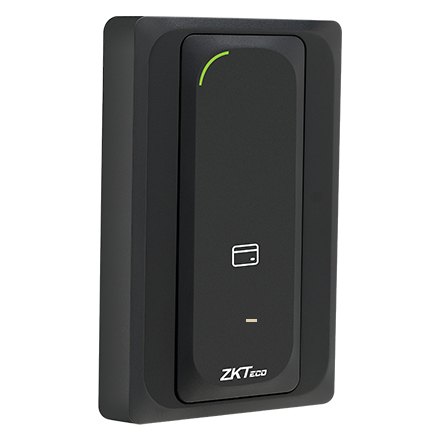

ZKTeco KR901 Multi-tech RFID Card Reader
ZKTeco KR901 Multi-tech RFID Card Reader من منتجات جهاز تحكم في الدخول. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
A ZKTeco access control product for secure door entry with biometric / card authentication and ZKTeco software support.
- Authentication Method: Card / Card
- Card Type: ID Card@125kHz & IC Card@13.56MHz (Standard)
- Verification Method: ＜0.3s @ Card
- Recognition Distance: ＜4cm @ Card
- Audio Indicator: Buzzer
عام
| الموديل | KR901 |
|---|
Key Features
- Authentication Method: Card / Card
- Card Type: ID Card@125kHz & IC Card@13.56MHz (Standard)
- Verification Method: ＜0.3s @ Card
- Recognition Distance: ＜4cm @ Card
- Audio Indicator: Buzzer
- Tamper Switch: Support
Best Fit Applications
Offices, companies, factories, schools, hospitals, residential buildings and server rooms.
Technical Specifications
| Model | KR901 |
|---|---|
| Hardware | Physical Keypad: N/A; RFID Module: ID & IC; Tamper Switch: Support / Physical Keypad: N/A; RFID Module: ID & IC; Tamper Switch: Support |
| Authentication Method | Card / Card |
| Card Type | ID Card@125kHz & IC Card@13.56MHz (Standard) |
| Verification Method | ＜0.3s @ Card |
| Recognition Distance | ＜4cm @ Card |
| Communication | Wiegand output only (W34 / 66) Or RS485 (ZK-RS485) & Wiegand output (W34 / 66) / Note: Support Wiegand format switching (Default: W34) |
| Visual Indicator | LED Indicators Power On: Blue = Standby / Status: Green = Verification successful Red = Verification failed |
| Audio Indicator | Buzzer |
| Tamper Switch | Support |
| Operating Environment | Indoor / Outdoor |
| Power Supply | 9V~12V DC |
| Working Temperature | -20℃ to 60℃ |
| Working Humidity | 10% - 90% RH (Non-condensing) |
| Dimension(L*W*H) | 111*44.5*21 mm / 124*77*20.9 mm |
| Net Weight | 0.13 Kg / 0.16 Kg |
| Installation | Compatible with mullion mount or flat surface mounting / Wall-mount (Compatible with Single gang box / Eurpean gang box) or flat surface mounting |
| Ingress Protection Rating | IP65 (water & dust proof ) |
| Factory ID | AC03-KR91H-01 / AC03-KR91H-01 |
