كود المنتج:
ZK-D3180

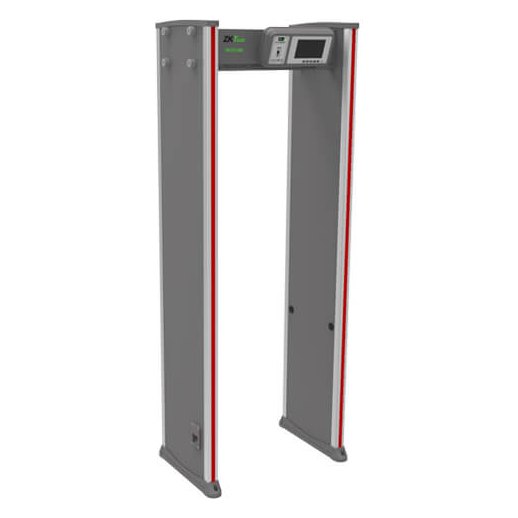

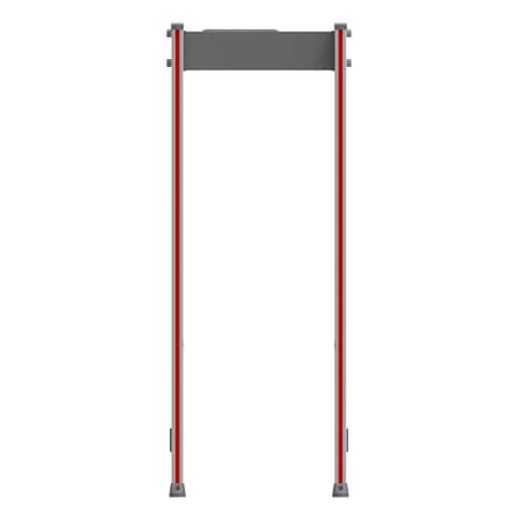

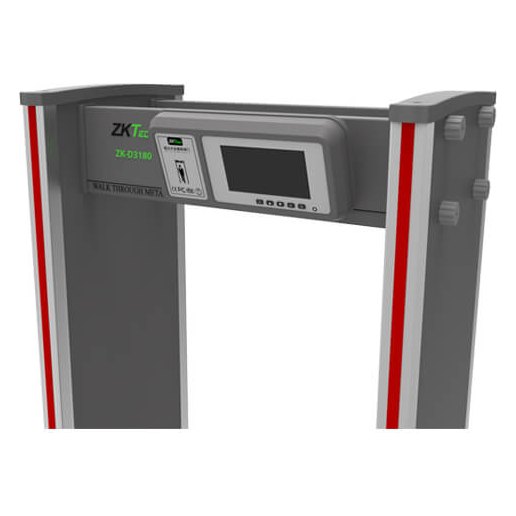

ZKTeco ZK-D3180 Walk Through Metal Detector, 33 Zones
ZKTeco ZK-D3180 Walk Through Metal Detector, 33 Zones من منتجات جهاز كشف المعادن. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
A ZKTeco security inspection product for detecting metal objects and contraband at entrances and checkpoints.
- Display: 7'' TFT Color Screen
- Physical Keypad: 5 keys
- Detection Zone: 1 / 6 / 12 / 18 / 33 zones mode adjustable
- Sensitivity Level: 500 levels
- Channel: 100
عام
| الموديل | ZK-D3180 |
|---|
Key Features
- Display: 7'' TFT Color Screen
- Physical Keypad: 5 keys
- Detection Zone: 1 / 6 / 12 / 18 / 33 zones mode adjustable
- Sensitivity Level: 500 levels
- Channel: 100
- Smallest Metal Objects Detected: Φ22.25*T1.85 mm(Steel-nickel Alloy)
Best Fit Applications
Government buildings, airports, malls, hotels, events, factories, schools and checkpoints.
Technical Specifications
| Model | ZK-D3180 |
|---|---|
| Display | 7'' TFT Color Screen |
| Physical Keypad | 5 keys |
| Detection Zone | 1 / 6 / 12 / 18 / 33 zones mode adjustable |
| Sensitivity Level | 500 levels |
| Channel | 100 |
| Smallest Metal Objects Detected | Φ22.25*T1.85 mm(Steel-nickel Alloy) |
| Maximum Detection Distance | Vertical 20-2000mm |
| Detection Sound Alert | 16 types of alarm tones (adjustable) / 0-100 levels of volume adjustable (Maximum volume 80 dB) |
| Detection Visual Indicator | 2 sets of LEDs (red) are evenly distributed on the left and right door panels LED (Steady red= metal contraband detected) |
| Throughput | > 40 persons per minute |
| Self-diagnosis Program | Yes |
| Detection Mode | Automatic Detection Mode / Infrared Detection Mode(default) |
| Number of IR Groups | 2 |
| Detected Contrabands | Ferrous and non-ferrous metal weapons |
| Enclosure Material | Flame Retardant ABS Polymer, Medium Density Fiberboard, PVC |
| Power Supply | AC100V to 240V (DC12V/3A) |
| Input Voltage | DC12V, POE (optional) |
| Operating Current | 1.2A |
| Operating Power | 14W |
| Operating Time (Estimated) | 24/7 operation capability (continuous operation) |
| Operating Frequency | 5.7KHz ~ 9.6KHz |
| Operating Temperature | -20°C ~ 55°C |
| Storage Temperature | -25°C ~ 60°C |
| Operating Humidity | < 95% RH (non-condensing) |
| Ingress Protection Rating | N/A (waterproof and dustproof) / N/A (vandal resistant) |
| Application Environment | Indoor |
| Dimensions (L*W*H) | 2226 * 845 * 580 (mm) |
| Lane Size (L*W*H) | 2000 * 710 * 498 (mm) |
| Dimensions of Product with Packaging (L*W*H) | 2280 * 347 * 660 (mm) |
