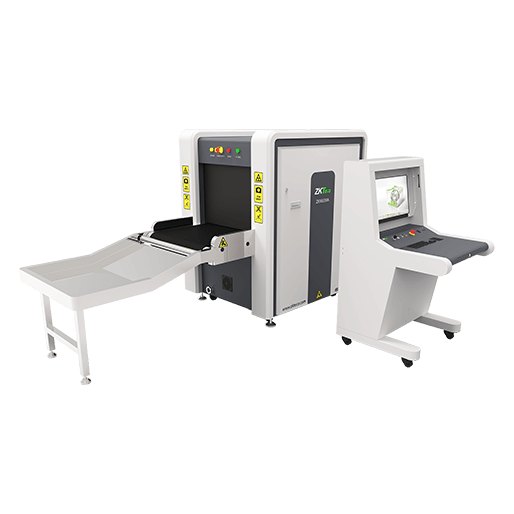

ZKTeco ZKX6550A X-Ray Inspection System
ZKTeco ZKX6550A X-Ray Inspection System من منتجات جهاز كشف المعادن. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
ZKX6550A X-ray Inspection System features a tunnel opening of 650 mm (W) x500 mm (H) and is designed for scanning briefcases, carry-on luggage, and small cargo packages, its equipped with a movable console to enhance work efficiency and operator comfort, allowing it to be placed in hotels, shopping malls, transportation hubs, and similar locations. The ZKX6550A X-ray Inspection System uses reliable, high-quality X-ra
- Tunnel Size: 650mm * 500mm (W x H)
- Conveyor Speed: 0.20 m/sec
- Conveyor Load (Max. Load): 120kg (Adequate distribution)
- Conveyor Height: 650mm
- Detector: Single-energy Detector
| الموديل | ZKX6550A |
|---|
Key Features
- Tunnel Size: 650mm * 500mm (W x H)
- Conveyor Speed: 0.20 m/sec
- Conveyor Load (Max. Load): 120kg (Adequate distribution)
- Conveyor Height: 650mm
- Detector: Single-energy Detector
- View: Single-view
Best Fit Applications
Government buildings, airports, malls, hotels, events, factories, schools and checkpoints.
Technical Specifications
| Model | ZKX6550A |
|---|---|
| Tunnel Size | 650mm * 500mm (W x H) |
| Conveyor Speed | 0.20 m/sec |
| Conveyor Load (Max. Load) | 120kg (Adequate distribution) |
| Conveyor Height | 650mm |
| Detector | Single-energy Detector |
| View | Single-view |
| Supported Software | ZKBio SIS |
| Communication Interface | RJ45 (TCP/IP) |
| Dimensions (L * W * H) | 2120mm * 980mm *1381mm |
| Console Dimensions (L * W * H) | 747mm * 706mm * 1279mm |
| Package Dimensions (L * W * H) | 2395mm * 1195mm * 1680mm |
| Console Package Dimensions (L * W * H) | 890mm * 840mm * 1502mm |
| Gross Weight (with Package) | 640kg+140kg (Console) |
| Net Weight | 520kg+100kg (Console) |
| Film Safety | ASA/ISO1600 |
| Anode Voltage | 80 kV |
| Tube Current | 0.6 mA |
| Wire Resolution | 36AWG |
| Steel Penetration | 8mm |
| Spatial Resolution | HorizontalΦ1.6mm/VerticalΦ1.3mm |
| Penetration Resolution | 32AWG |
| Generator Cooling | Sealed Oil Bath with Forced Air |
| Beam Direction | Vertically Upward |
| X-ray Converter | L-shaped Detector Line |
| Operating System | Windows 10 |
| Processor | N100 |
| RAM | 8 GB |
| Hard Drive | 128GB SSD + 2TB HDD |
| Max Storage | Up to 200,000 Scanned Images |
