كود المنتج:
ZKX5030A

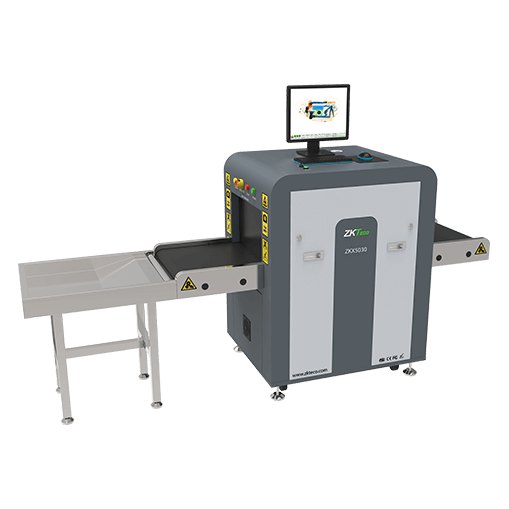

ZKTeco ZKX5030A X-Ray Inspection System
ZKTeco ZKX5030A X-Ray Inspection System من منتجات جهاز كشف المعادن. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
ZKX5030A X-ray Inspection System features a tunnel opening of 500 mm (W) x 300 mm (H) and is designed for scanning briefcases, carry-on luggage, and small cargo packages. Its compact design and small footprint make it easy to relocate and pass through narrow doorways.
- Tunnel Size: 500mm * 300mm
- Conveyor Speed: 0.20m/sec
- Conveyor Load: 120kg (Adequate distribution) (Max. Load)
- Conveyor Height: 650mm
- Detector: Single-energy Detector
عام
| الموديل | ZKX5030A |
|---|
Key Features
- Tunnel Size: 500mm * 300mm
- Conveyor Speed: 0.20m/sec
- Conveyor Load: 120kg (Adequate distribution) (Max. Load)
- Conveyor Height: 650mm
- Detector: Single-energy Detector
- View: Single-view
Best Fit Applications
Government buildings, airports, malls, hotels, events, factories, schools and checkpoints.
Technical Specifications
| Model | ZKX5030A |
|---|---|
| Tunnel Size | 500mm * 300mm |
| Conveyor Speed | 0.20m/sec |
| Conveyor Load | 120kg (Adequate distribution) (Max. Load) |
| Conveyor Height | 650mm |
| Detector | Single-energy Detector |
| View | Single-view |
| Supported Software | ZKBio SIS |
| Communication Interface | RJ45 (TCP/IP) |
| Dimensions (L*W*H) | 1701mm * 796mm * 1150mm |
| Package Dimensions (L*W*H) | 2000mm * 1000mm * 1500mm |
| Net Weight | 340kg |
| Film Safety | ASA/ISO1600 |
| Anode Voltage | 80 kV |
| Tube Current | 0.6 mA |
| Wire Resolution | 36AWG |
| Steel Penetration | 8mm |
| Spatial Resolution | HorizontalΦ1.3mm / VerticalΦ1.0mm |
| Penetration Resolution | 30AWG |
| Generator Cool | Sealed Oil Bath with Forced Air |
| Beam Direction | Vertically Upward |
| X-ray converter type | L-shaped Detector Line |
| Operating System | Windows 10 |
| Processor | N100 |
| RAM | 8 GB |
| Hard Drive | 128GB SSD + 2TB HDD |
| Max. Storage | Up to 200,000 Scanned Images |
| Monitor | 21.5"Color LED Screen (1920*1080P) |
| System Power | 220 VAC +/- 10% 50/60Hz / 110 VAC +/- 10% 50/60Hz |
| Power Consumption | < 300W |
