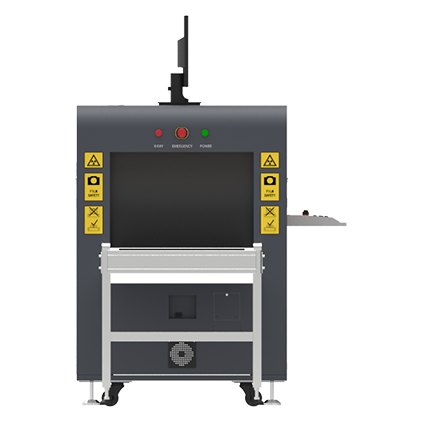

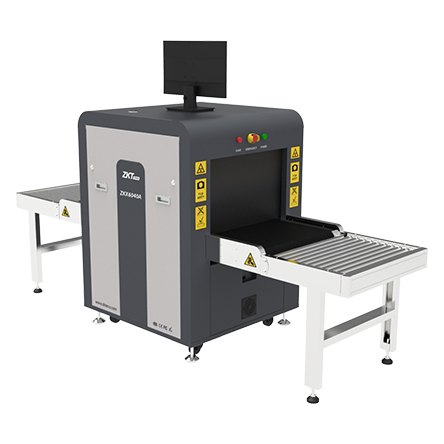

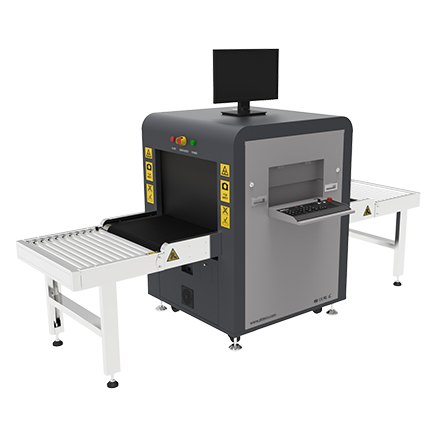

ZKTeco ZKX6040A X-Ray Inspection System
ZKTeco ZKX6040A X-Ray Inspection System من منتجات جهاز كشف المعادن. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
ZKX6040A X-ray Inspection System features a tunnel opening of 600 mm (W) x 400 mm (H) and is designed for scanning briefcases, carry-on luggage, and small cargo packages, its compact design and foldable keyboard make it highly mobile, allowing it to be placed in hotels, shopping malls, transportation hubs, and similar locations. The ZKX6040A X-ray Inspection System uses reliable, high-quality X-ray generators and det
- Tunnel Size: 600mm * 400mm (W x H)
- Conveyor Speed: 0.30 m/sec
- Conveyor Load: 120kg (Adequate distribution) (Max. Load)
- Conveyor Height: 680 mm
- Detector: Single-energy Detector
| الموديل | ZKX6040A |
|---|
Key Features
- Tunnel Size: 600mm * 400mm (W x H)
- Conveyor Speed: 0.30 m/sec
- Conveyor Load: 120kg (Adequate distribution) (Max. Load)
- Conveyor Height: 680 mm
- Detector: Single-energy Detector
- View: Single-view
Best Fit Applications
Government buildings, airports, malls, hotels, events, factories, schools and checkpoints.
Technical Specifications
| Model | ZKX6040A |
|---|---|
| Tunnel Size | 600mm * 400mm (W x H) |
| Conveyor Speed | 0.30 m/sec |
| Conveyor Load | 120kg (Adequate distribution) (Max. Load) |
| Conveyor Height | 680 mm |
| Detector | Single-energy Detector |
| View | Single-view |
| Supported Software | ZKBio SIS |
| Communication Interface | RJ45(TCP/IP) |
| Dimensions (L*W*H) | 1701mm * 910mm * 1305mm |
| Package Dimensions (L*W*H) | 2110mm * 1140mm * 1540mm |
| Net Weight | 380kg |
| Film Safety | ASA/ISO1600 |
| Anode Voltage | 80 kV |
| Tube Current | 0.6 mA |
| Wire Resolution | 36AWG |
| Steel Penetration | 8mm |
| Spatial Resolution | HorizontalΦ1.3mm/VerticalΦ1.3mm |
| Penetration Resolution | 30AWG |
| Generator Cooling | Sealed Oil Bath with Forced Air |
| Beam Direction | Vertically Upward |
| X-ray converter type | L-shaped Detector Line |
| Operating System | Windows 10 |
| Processor | N100 |
| RAM | 8 GB |
| Hard Drive | 128GB SSD + 2TB HDD |
| Max. Storage | Up to 200,000 Scanned Images |
| Monitor | 21.5"Color LED Screen (1920*1080P) |
| System Power | 220 VAC +/- 10% 50/60Hz / 110 VAC +/- 10% 50/60Hz |
| Power Consumption | < 300W |
