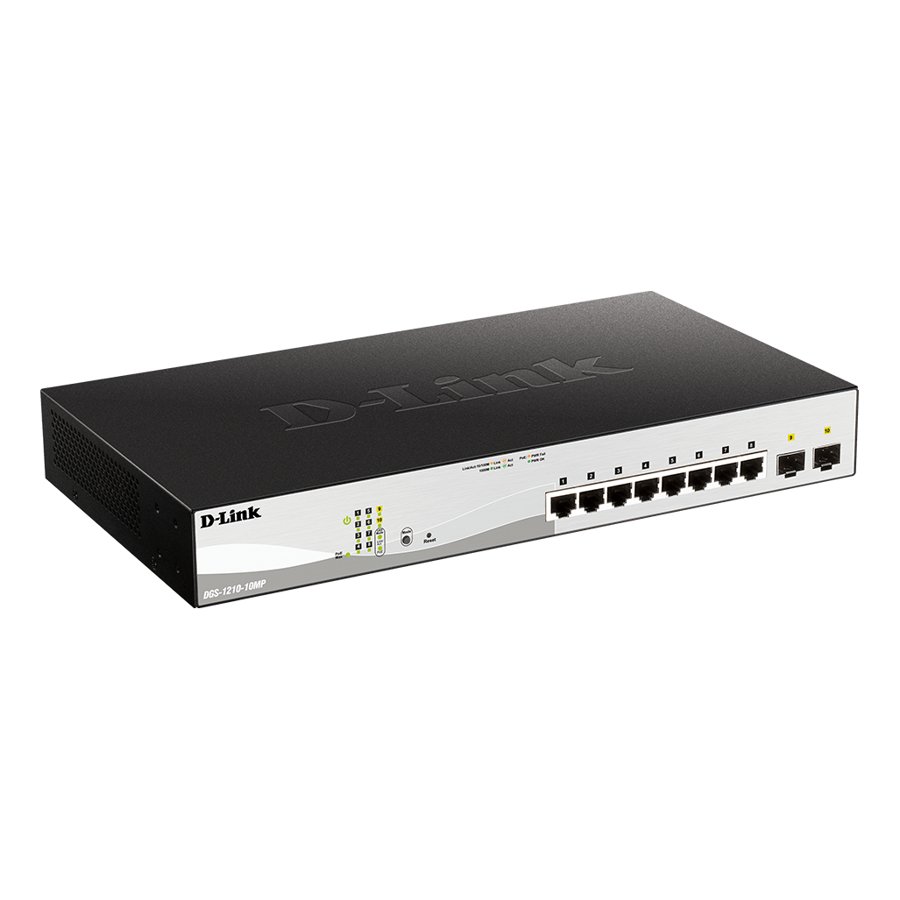

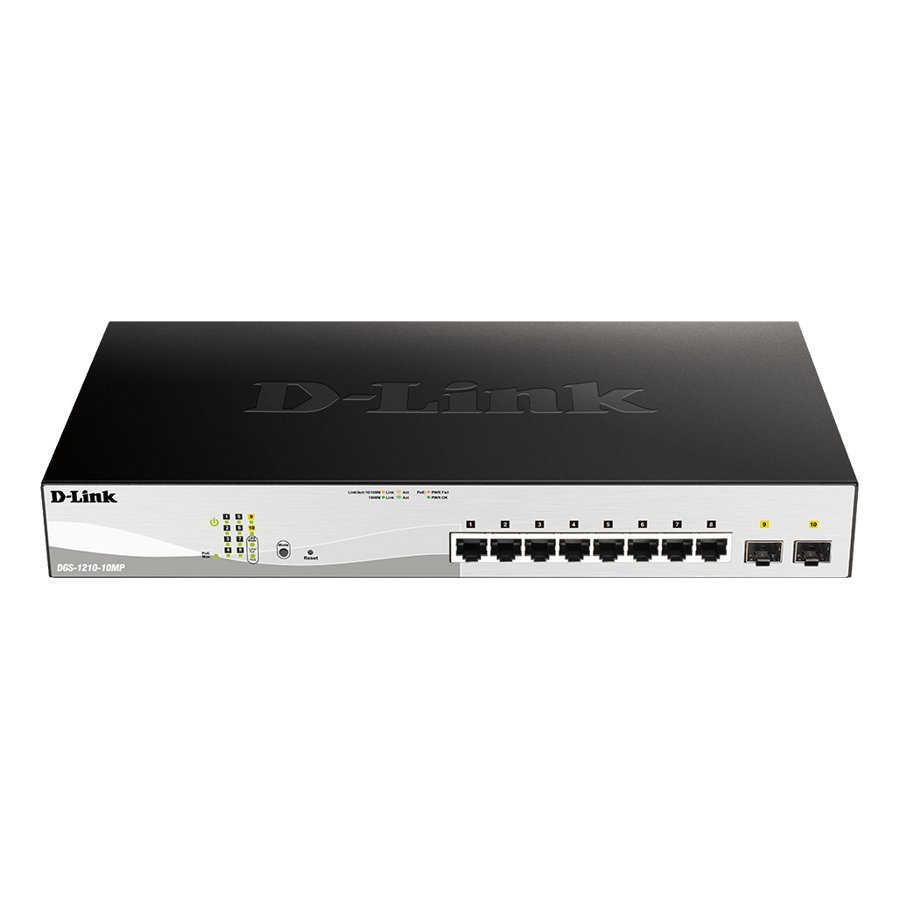

D-Link DGS-1210-10MP 10-Port Gigabit Smart Managed PoE Switch
D-Link DGS-1210-10MP 10-Port Gigabit Smart Managed PoE Switch من منتجات سويتش شبكات. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
A D-Link network switch for offices, CCTV / PoE projects and business networks.
- 10-Port Gigabit Smart Managed PoE Switch
- Interfaces: 8 x 10/100/1000BASE-T PoE ports 2 x SFP ports
- Switch Capacity: 20 Gbps
- Max. Packet Forwarding Rate: 14.88 Mpps
- Dimensions: 330 x 180 x 44 mm
عام
| الموديل | DGS-1210-10MP |
|---|
Key Features
- 10-Port Gigabit Smart Managed PoE Switch
- Interfaces: 8 x 10/100/1000BASE-T PoE ports 2 x SFP ports
- Switch Capacity: 20 Gbps
- Max. Packet Forwarding Rate: 14.88 Mpps
- Dimensions: 330 x 180 x 44 mm
Best Fit Applications
Offices, CCTV projects, shops, hotels and business networks.
Technical Specifications
| Model | DGS-1210-10MP |
|---|---|
| Interfaces | 8 x 10/100/1000BASE-T PoE ports 2 x SFP ports |
| Switch Capacity | 20 Gbps |
| Max. Packet Forwarding Rate | 14.88 Mpps |
| Dimensions | 330 x 180 x 44 mm |
| Weight | 1.77 kg |
| Temperature | Operating: -5 to 50° C (23 to 122° F) Storage -20 - 70°C |
| Standby Power Consumption | 4.3 W/100V 5.2 W/240V |
| Humidity | Operating: 0% - 95% RH Storage: 0% - 95% RH |
| Maximum Heat Dissipation | 519.51 BTU/hr (100 V) 507.23 BTU/hr (240 V) |
| MTBF | 1,274,005 hours |
| Power Input | 100 to 240 V AC |
| CPU Speed | 500MHz |
| DRAM Size | DDR3 128MB |
| Flash Memory Size | 32 MB |
| Packet Buffer Size | 4.1Mbits |
| FAN | Fanless |
| PoE Budget | 130 W |
| Operating Altitude | 1500 m |
| Max Power Consumption | 152.3 W/100 V, 148.7 W/240 V (PoE on) 8.5 W/100 V, 9.4 W/240 V (PoE off) |
| Acoustic | 0 dB |
