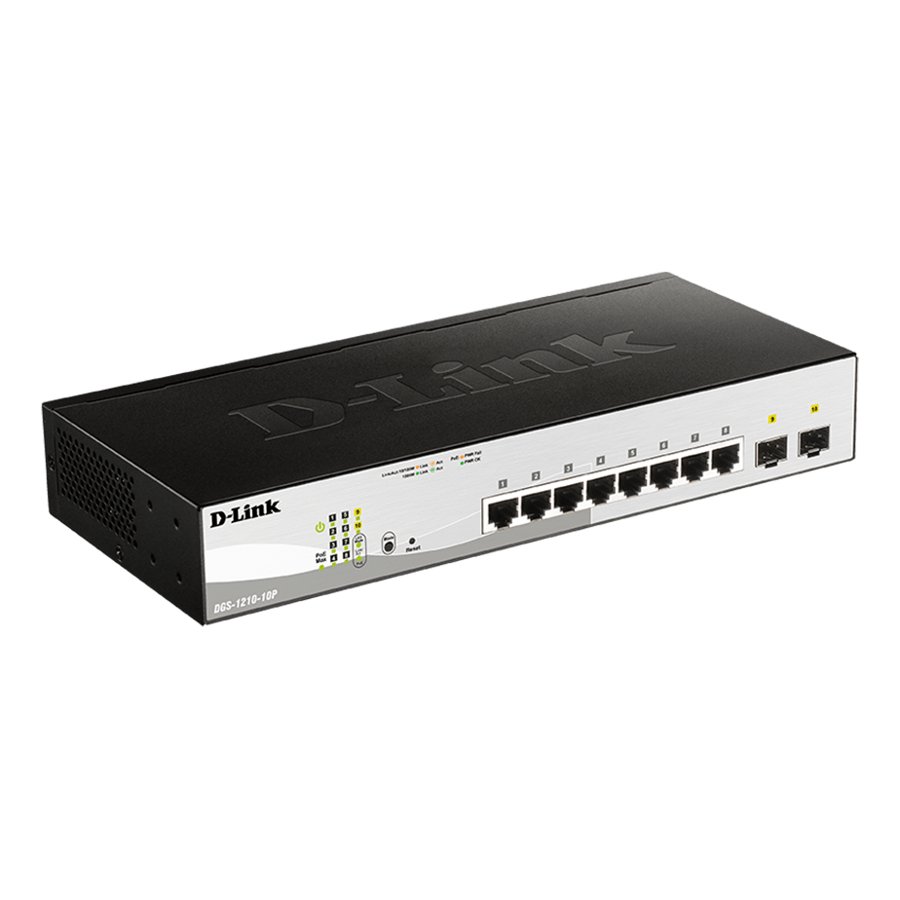

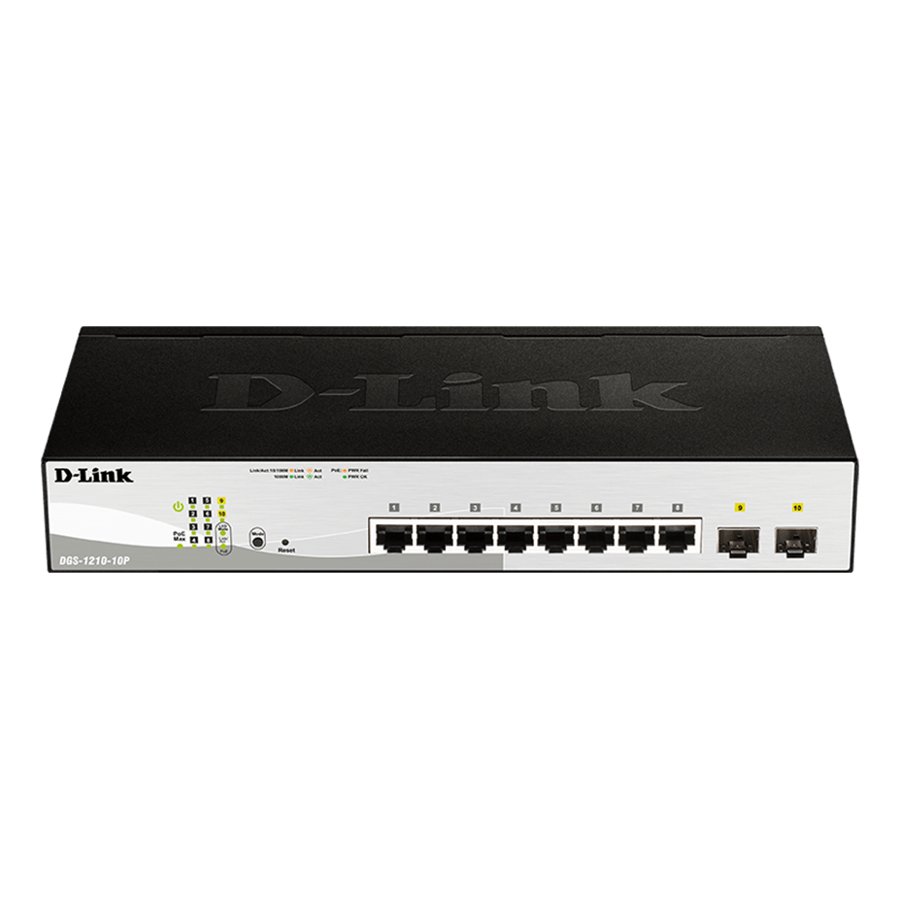

D-Link DGS-1210-10P 10-Port Gigabit Smart Managed PoE Switch
D-Link DGS-1210-10P 10-Port Gigabit Smart Managed PoE Switch من منتجات سويتش شبكات. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
A D-Link network switch for offices, CCTV / PoE projects and business networks.
- 10-Port Gigabit Smart Managed PoE Switch
- Interfaces: 8 x 10/100/1000BASE-T PoE ports 2 x SFP ports
- Switch Capacity: 20 Gbps
- Max. Packet Forwarding Rate: 14.88 Mpps
- Dimensions: 280 x 126 x 44 mm
عام
| الموديل | DGS-1210-10P |
|---|
Key Features
- 10-Port Gigabit Smart Managed PoE Switch
- Interfaces: 8 x 10/100/1000BASE-T PoE ports 2 x SFP ports
- Switch Capacity: 20 Gbps
- Max. Packet Forwarding Rate: 14.88 Mpps
- Dimensions: 280 x 126 x 44 mm
Best Fit Applications
Offices, CCTV projects, shops, hotels and business networks.
Technical Specifications
| Model | DGS-1210-10P |
|---|---|
| Interfaces | 8 x 10/100/1000BASE-T PoE ports 2 x SFP ports |
| Switch Capacity | 20 Gbps |
| Max. Packet Forwarding Rate | 14.88 Mpps |
| Dimensions | 280 x 126 x 44 mm |
| Weight | 0.95 kg |
| Temperature | Operating: -5 to 50° C (23 to 122° F) Storage: -20 - 70 ˚C |
| Operating Altitude | 1500 m |
| Max Power Consumption | 89.1 W/100 V, 80.6 W/240 V(PoE on) 7.6 W/100 V, 7.5 W/240 V(PoE off) |
| Standby Power Consumption | 2.5 W/100V 2.5 W/240V |
| Humidity | Operating: 0% - 95% RH Storage: 0% - 95% RH |
| Maximum Heat Dissipation | 279.59 BTU/hr (100V) 275.04 BTU/hr (240V) |
| MTBF | 729,258 hours |
| Power Input | 100 to 240 V AC |
| CPU Speed | 500MHz |
| DRAM Size | DDR3 128MB |
| Flash Memory Size | 32 MB |
| Packet Buffer Size | 4.1Mbits |
| FAN | Fanless |
| Acoustic | 0 dB |
| PoE Budget | 65 W |
