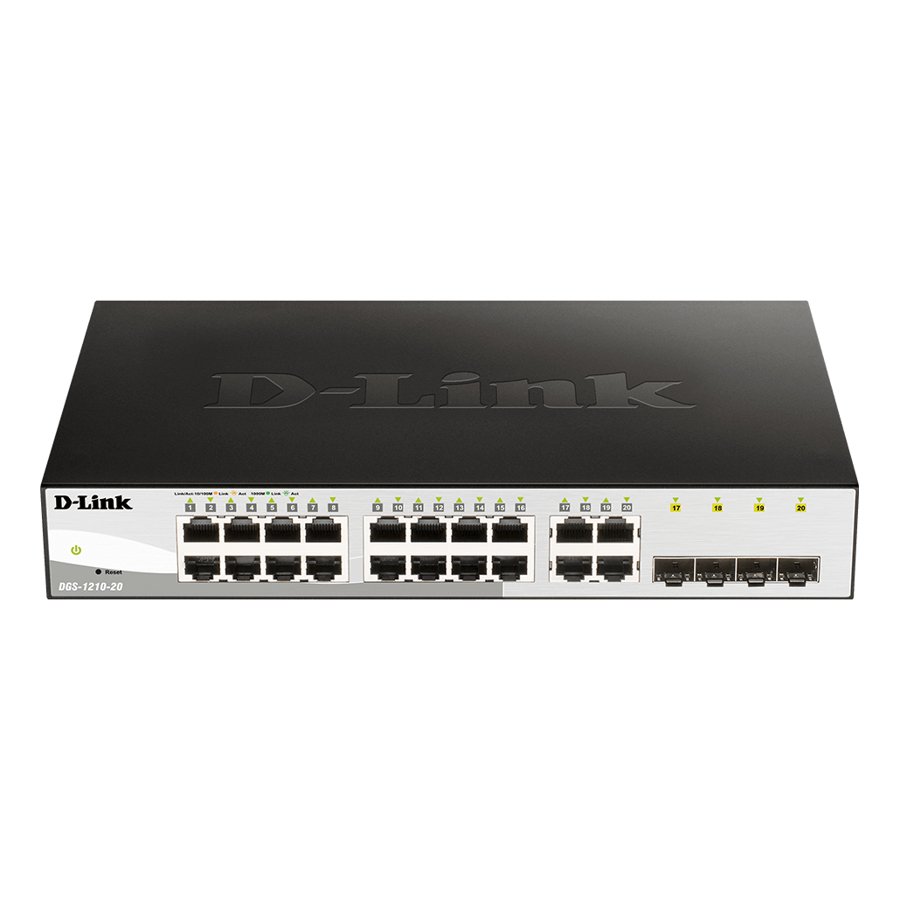

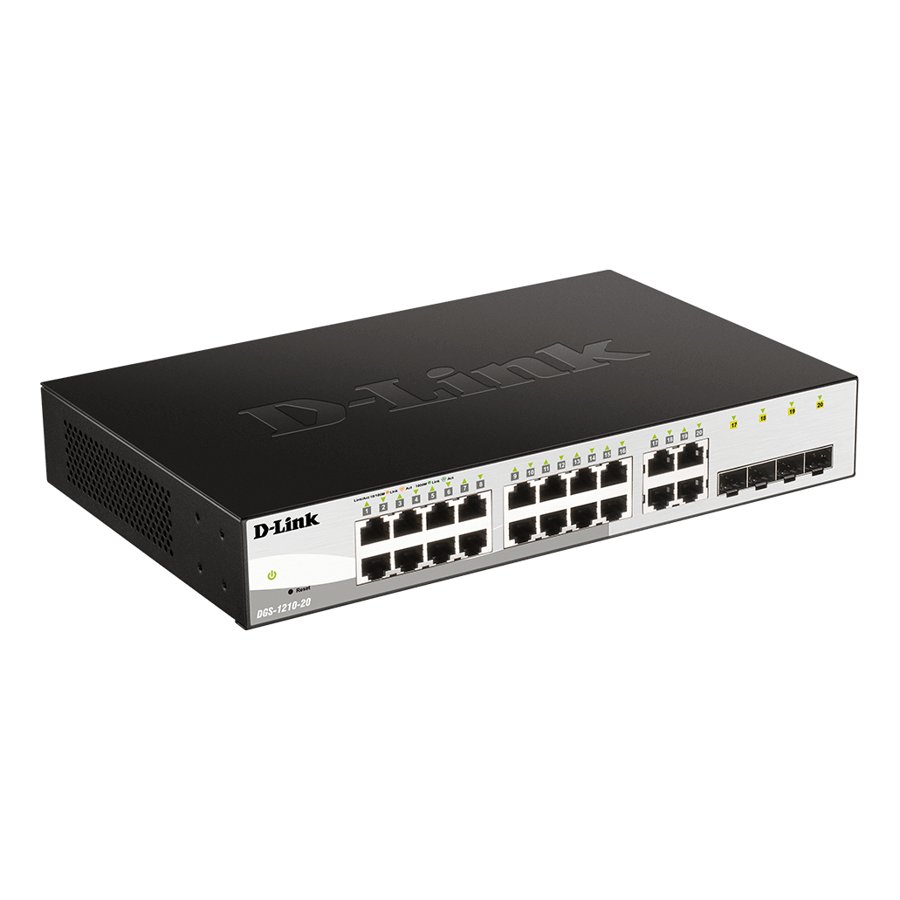

D-Link DGS-1210-20 20-Port Gigabit Smart Managed Switch
D-Link DGS-1210-20 20-Port Gigabit Smart Managed Switch من منتجات سويتش شبكات. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
A D-Link network switch for offices, CCTV / PoE projects and business networks.
- 20-Port Gigabit Smart Managed Switch
- Interfaces: 16 x 10/100/1000BASE-T ports 4 x Combo 10/100/1000BASE-T/SFP ports
- Switch Capacity: 40 Gbps
- Max. Packet Forwarding Rate: 29.8 Mpps
- Power Input: 100 to 240 V AC
عام
| الموديل | DGS-1210-20 |
|---|
Key Features
- 20-Port Gigabit Smart Managed Switch
- Interfaces: 16 x 10/100/1000BASE-T ports 4 x Combo 10/100/1000BASE-T/SFP ports
- Switch Capacity: 40 Gbps
- Max. Packet Forwarding Rate: 29.8 Mpps
- Power Input: 100 to 240 V AC
Best Fit Applications
Offices, CCTV projects, shops, hotels and business networks.
Technical Specifications
| Model | DGS-1210-20 |
|---|---|
| Interfaces | 16 x 10/100/1000BASE-T ports 4 x Combo 10/100/1000BASE-T/SFP ports |
| Switch Capacity | 40 Gbps |
| Max. Packet Forwarding Rate | 29.8 Mpps |
| Power Input | 100 to 240 V AC |
| Dimensions | 280mm x 180 mm x 44mm |
| Weight | 1.75 kg |
| Temperature | Operating: -5 to 50° C (23 to 122° F) Storage -20 - 70°C |
| Humidity | Operating: 0% - 95% RH Storage: 0% - 95% RH |
| Operating Altitude | 1500 m |
| Max Power Consumption | 13.08 W/100 V 13.02 W/240 V |
| Maximum Heat Dissipation | 44.62 BTU/hr (100V) 44.41 BTU/hr (240V) |
| Acoustic | 0 dB |
| MTBF | 1,087,100 hours |
| CPU Speed | 500MHz |
| Flash Memory Size | 32 MB |
| DRAM Size | DDR3 128MB |
| Packet Buffer Size | 4.1Mbits |
| FAN | Fanless |
| Standby Power Consumption | 5.47 W/100V 5.56 W/240V |
