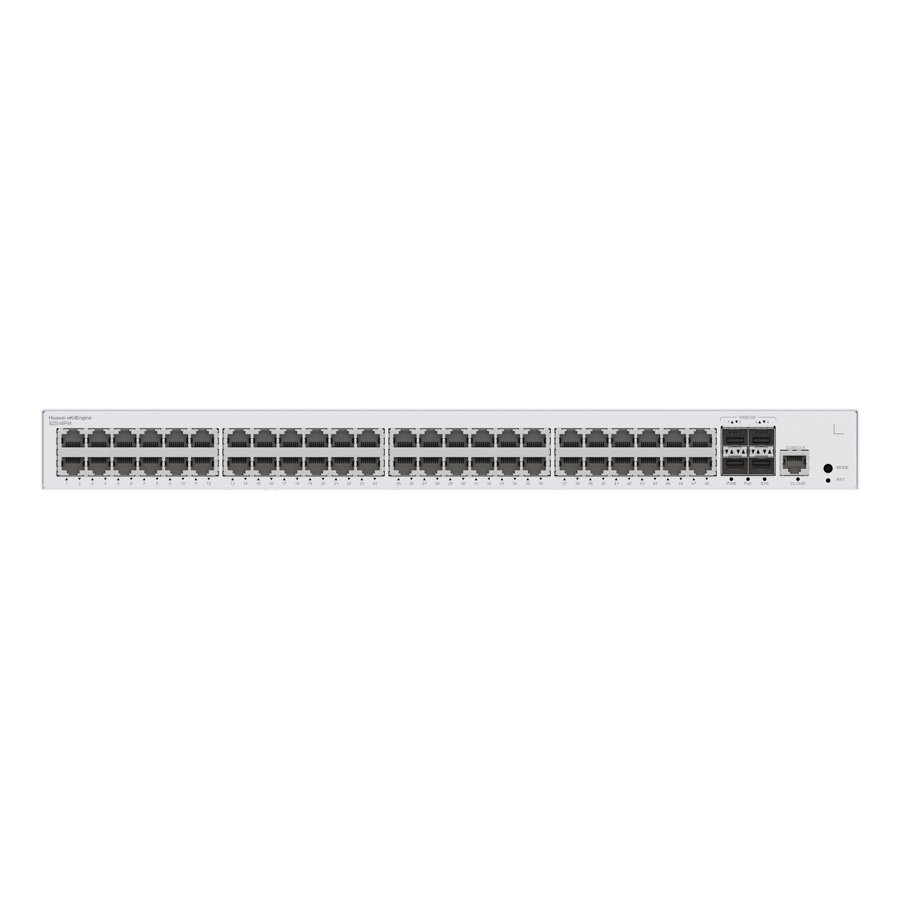

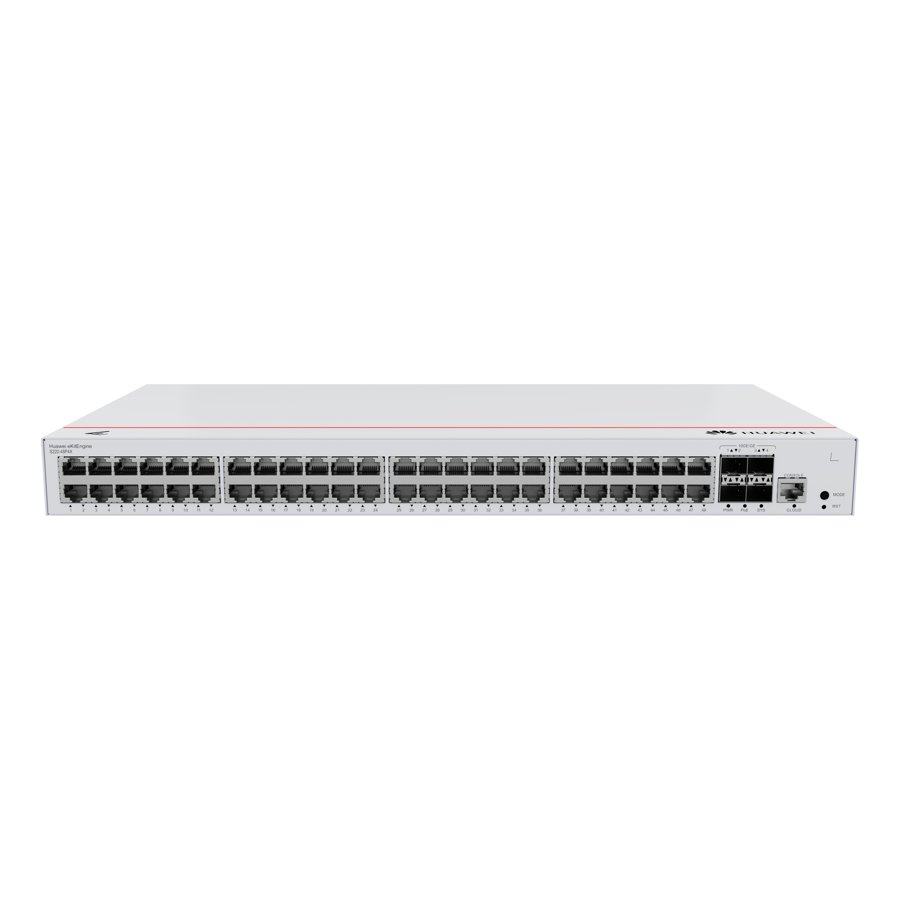

Huawei eKitEngine S220-48P4X Smart Managed Switch, 48 x GE, 4 x 10GE SFP+, PoE+
Huawei eKitEngine S220-48P4X Smart Managed Switch, 48 x GE, 4 x 10GE SFP+, PoE+ من منتجات سويتش شبكات. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
A Huawei eKit enterprise switch for reliable wired networks in offices, CCTV and Wi-Fi projects, hotels and campuses.
- 48 x 10/100/1000BASE-T ports, 4 x 10GE SFP+ ports
- 380W PoE+
- built-in AC power
- Packet forwarding rate: 131 Mpps
- Switching capacity: 176 Gbit/s
عام
| الموديل | S220-48P4X |
|---|
Key Features
- 48 x 10/100/1000BASE-T ports, 4 x 10GE SFP+ ports
- 380W PoE+
- built-in AC power
- Packet forwarding rate: 131 Mpps
- Switching capacity: 176 Gbit/s
Best Fit Applications
Access and aggregation layers for offices, CCTV projects, hotels and campuses.
Technical Specifications
| Model | S220-48P4X |
|---|---|
| Part Number | 98012378 |
| Switching capacity | 176 Gbit/s |
| Packet forwarding rate | 131 Mpps |
| GE RJ45 | 48 (PoE+) (1G/100M/10M) |
| 10G SFP+ | 4 (10G/1G) |
| PoE | Supported |
| Maximum PoE power consumption [W] | 380 |
| Certification | EMC certification Safety certification Manufacturing certification |
| Chassis material | Metal |
| Static power consumption [W] | 34.04 |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x… |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.) |
| Installation type | Rack mounting, Desk mounting, Wall mounting |
| Weight without packaging [kg(lb)] | 3.24 (7.14) |
| Weight with packaging [kg(lb)] | 4.29 kg (9.46 lb) |
| Typical power consumption [W] | 49.44 |
| Maximum power consumption [W] | - Without PoE: 64.7 W - Full PoE load: 462.80 W (PoE: 380 W) |
| Number of fans modules | 2 |
| Long-term operating temperature [°C(°F)] | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Power supply mode | AC built-in |
| Input voltage range [V] | - AC input: 90 V AC to 290 V AC; 45 Hz to 65 Hz - High-voltage DC input: 190 V DC to 290 V DC |
| Power supply surge protection [kV] | Differential mode: ±6 kV; common mode: ±6 kV |
| Types of fans | Built-in |
| Heat dissipation mode | Air cooling for heat dissipation, intelligent fan speed adjustment |
| Airflow direction | Air intake from left and air exhaust from right |
