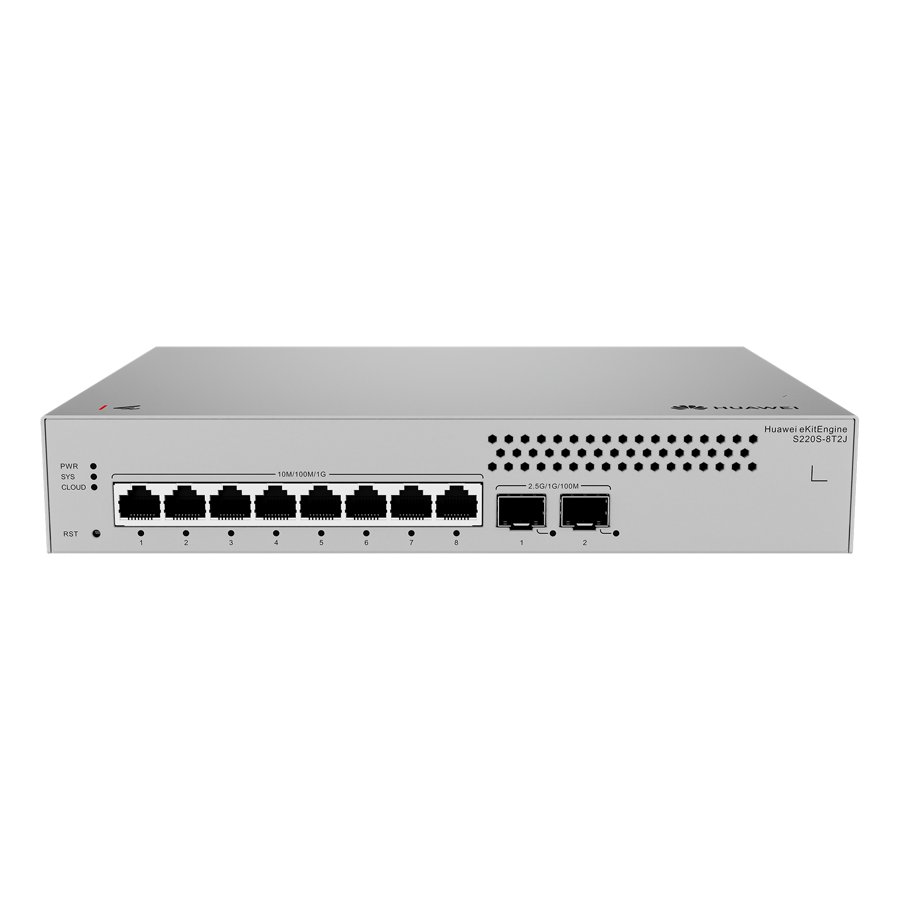

Huawei eKitEngine S220S-8T2J Smart Managed Switch, 8*GE, 2*2.5GE SFP, built-in AC power, Fanless
Huawei eKitEngine S220S-8T2J Smart Managed Switch, 8*GE, 2*2.5GE SFP, built-in AC power, Fanless من منتجات سويتش شبكات. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
A Huawei eKit enterprise switch for reliable wired networks in offices, CCTV and Wi-Fi projects, hotels and campuses.
- S220S-8T2J (8*10/100/1000BASE-T ports, 2*2.5GE SFP ports, built-in AC power, Fanless)
عام
| الموديل | S220S-8T2J |
|---|
Key Features
- S220S-8T2J (8*10/100/1000BASE-T ports, 2*2.5GE SFP ports, built-in AC power, Fanless)
Best Fit Applications
Access and aggregation layers for offices, CCTV projects, hotels and campuses.
Technical Specifications
| Model | S220S-8T2J |
|---|---|
| Part Number | 98012453-001 |
| Switching capacity | 26 Gbit/s |
| Packet forwarding rate | 19 Mpps |
| GE RJ45 | 8 (1G/100M/10M) |
| 2.5G SFP | 2 (2.5G/1G/100M) |
| Certification | EMC certification Safety certification Manufacturing certification |
| Chassis material | Metal |
| Static power consumption [W] | 5.18 |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 250 mm x 180 mm (1.72 in. x 9.84 in. x 7.09 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 250… |
| Dimensions with packaging (H x W x D) [mm(in.)] | 113.0 mm x 310.0 mm x 240.0 mm (4.45 in. x 12.20 in. x 9.45 in.) |
| Installation type | Rack mounting, Desk mounting, Wall mounting |
| Weight without packaging [kg(lb)] | 1.34 (2.95) |
| Weight with packaging [kg(lb)] | 2.07 kg (4.56 lb) |
| Typical power consumption [W] | 10.31 |
| Maximum power consumption [W] | 10.94 |
| Long-term operating temperature [°C(°F)] | –5°C to +40°C (23°F to 104°F) at an altitude of 0-1800 m (0-5905.44 ft.) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Power supply mode | AC built-in |
| Input voltage range [V] | AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz |
| Power supply surge protection [kV] | Differential mode: ±6 kV; common mode: ±6 kV |
| Heat dissipation mode | Natural heat dissipation |
