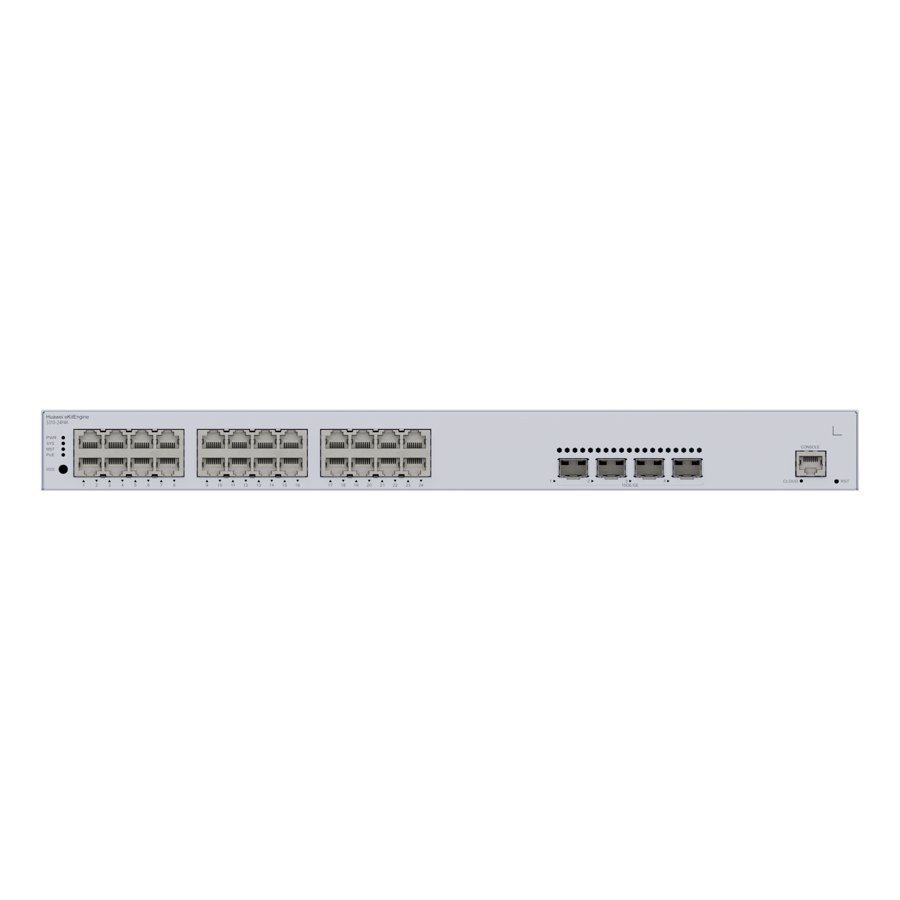

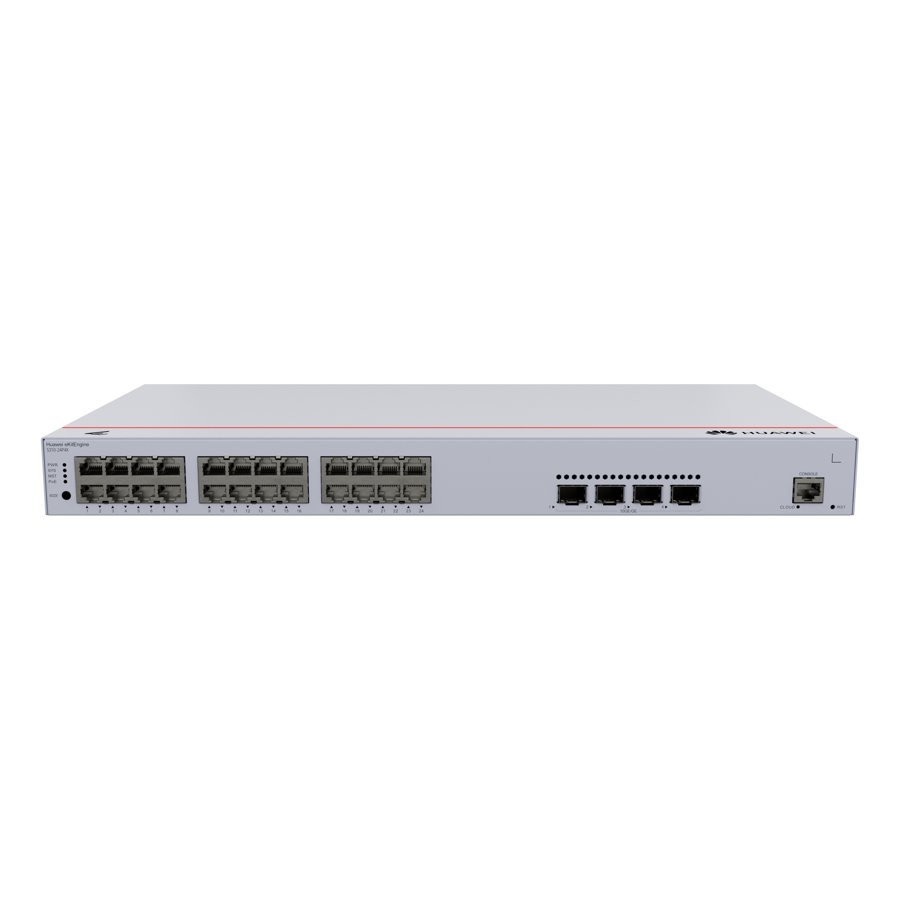

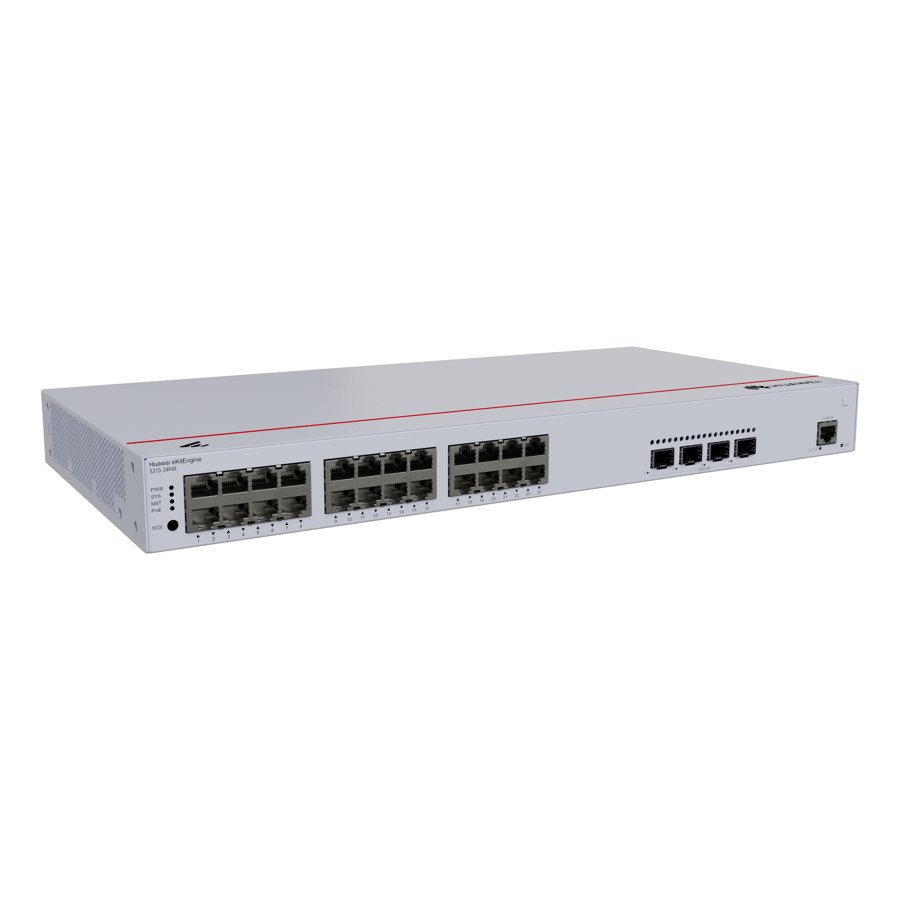

Huawei eKitEngine S310-24P4X Managed PoE+ Switch, 24 GE PoE+ + 4 10GE SFP+, 400 W
Huawei eKitEngine S310-24P4X Managed PoE+ Switch, 24 GE PoE+ + 4 10GE SFP+, 400 W من منتجات سويتش شبكات. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
A Huawei eKit managed access switch: 24 Gigabit PoE+ ports with a 400 W PoE budget and 4 x 10GE SFP+ uplinks, iStack up to 4 units, for CCTV, Wi-Fi and office networks.
- 24 x GE RJ45 PoE+
- 4 x 10GE SFP+ uplinks
- 400 W PoE budget
- 128 Gbit/s switching, 96 Mpps
- iStack up to 4 switches
عام
| الموديل | S310-24P4X |
|---|
Key Features
- 24 x GE RJ45 PoE+
- 4 x 10GE SFP+ uplinks
- 400 W PoE budget
- 128 Gbit/s switching, 96 Mpps
- iStack up to 4 switches
- Built-in AC power, 1U
Best Fit Applications
Access layer for offices, CCTV projects, hotels, schools and Wi-Fi deployments.
Technical Specifications
| Part Number | 98012382 |
|---|---|
| GE RJ45 | 24 PoE+ (1G/100M/10M) |
| 10G SFP+ | 4 (10G/1G) |
| PoE Budget | 400 W |
| Switching Capacity | 128 Gbit/s |
| Packet Forwarding Rate | 96 Mpps |
| Stacking | iStack, up to 4 switches |
| Power Supply | Built-in AC, 90-290 V AC; HVDC 190-290 V |
| Typical / Max Power | 37.12 W / 485.91 W at full PoE |
| Fans | 2 built-in, intelligent speed |
| Surge Protection | ±6 kV |
| Operating Temperature | -5°C to +50°C |
| Installation | Rack, desk, wall |
| Dimensions (H x W x D) | 43.6 x 442 x 220 mm (1U) |
| Weight | 2.92 kg |

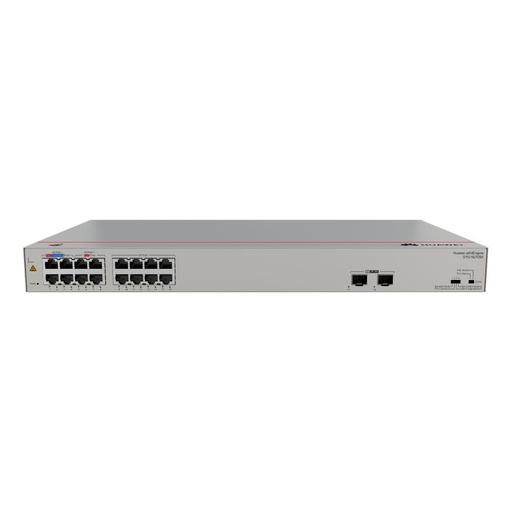

![[S110-16LP2SR] Huawei eKitEngine S110-16LP2SR Unmanaged Switch, 16 x GE, 2 x GE SFP, PoE+](/web/image/product.template/2739/image_512)

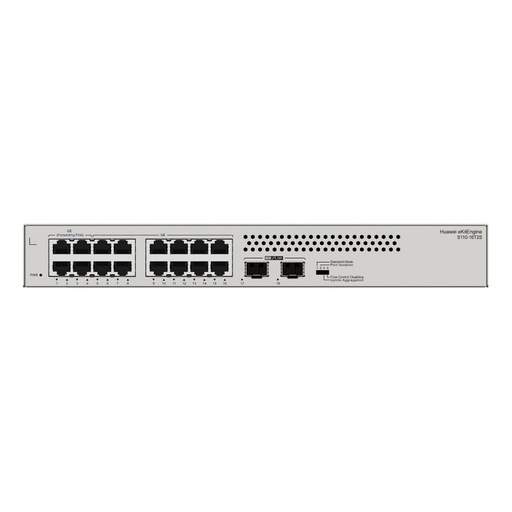

![[S110-16T2S] Huawei eKitEngine S110-16T2S Unmanaged Switch, 16 x GE, 2 x GE SFP](/web/image/product.template/2738/image_512)

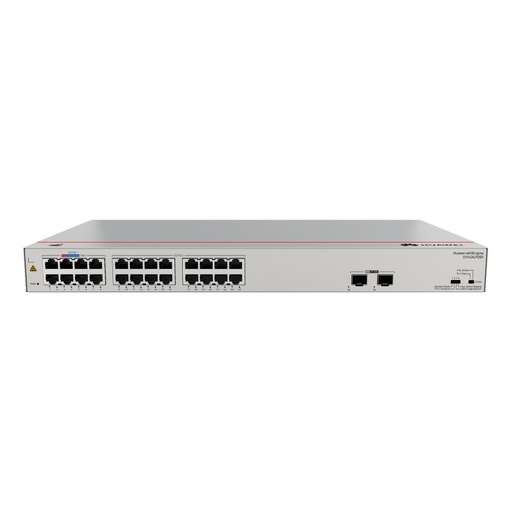

![[S110-24LP2SR] Huawei eKitEngine S110-24LP2SR Unmanaged Switch, 24 x GE, 2 x GE SFP, PoE+](/web/image/product.template/2741/image_512)

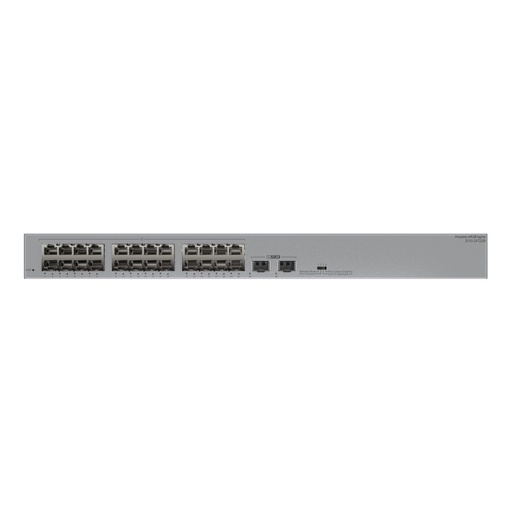

![[S110-24T2SR] Huawei eKitEngine S110-24T2SR Unmanaged Switch, 24 x GE, 2 x GE SFP](/web/image/product.template/2740/image_512)

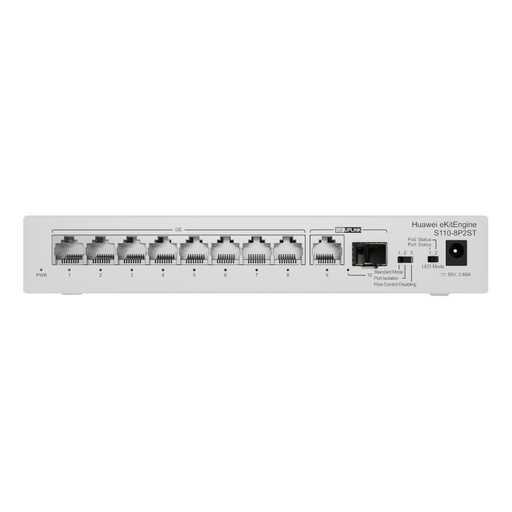

![[S110-8P2ST] Huawei eKitEngine S110-8P2ST Unmanaged Switch, 8 x GE, 1 x GE SFP, 1 x GE, PoE+](/web/image/product.template/2737/image_512)

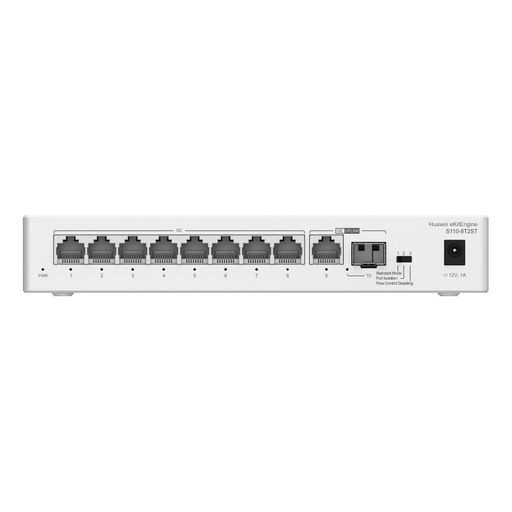

![[S110-8T2ST] Huawei eKitEngine S110-8T2ST Unmanaged Switch, 8 x GE, 1 x GE SFP, 1 x GE](/web/image/product.template/2736/image_512)
![[S210I-8P4SX] Huawei eKitEngine S210I-8P4SX Industrial Managed Switch, 8*GE, 2*GE SFP, 2*10GE SFP+, PoE+](/web/image/product.template/2743/image_512)

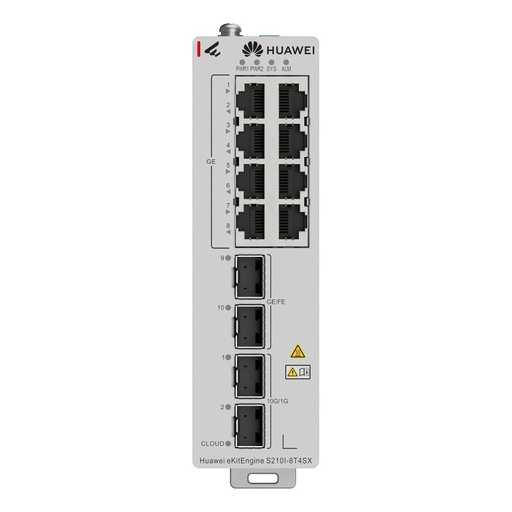

![[S210I-8T4SX] Huawei eKitEngine S210I-8T4SX Industrial Managed Switch, 8*GE, 2*GE SFP, 2*10GE SFP+](/web/image/product.template/2742/image_512)
