كود المنتج:
X100

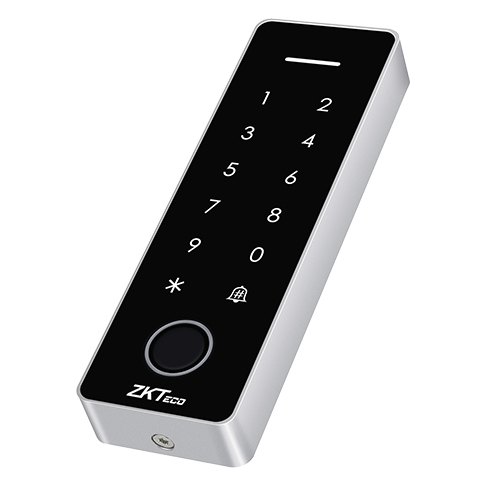

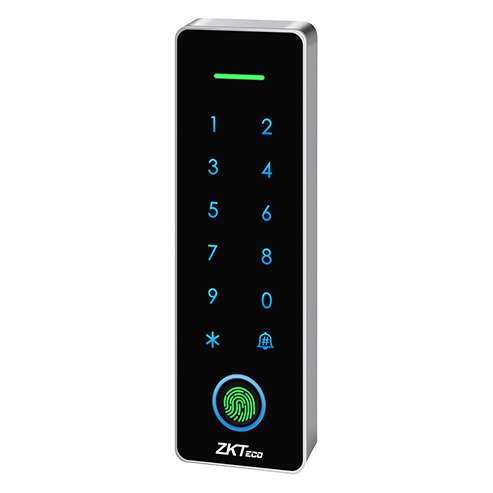

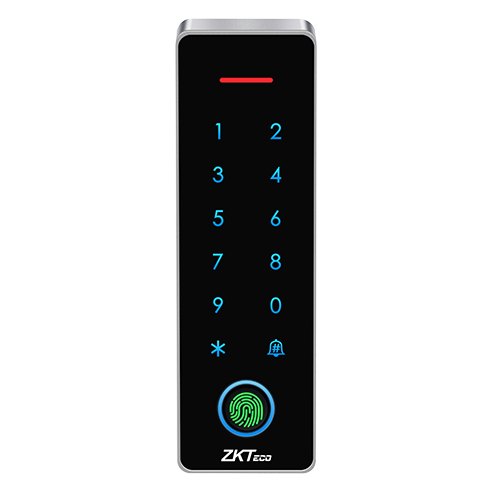

ZKTeco X100 IP66 Standalone Fingerprint Access Control
ZKTeco X100 IP66 Standalone Fingerprint Access Control من منتجات جهاز تحكم في الدخول. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
A ZKTeco access control product for secure door entry with biometric / card authentication and ZKTeco software support.
- Authentication Method: Fingerprint / Card / PIN Code (Physical Touch Keypad)
- User Capacity: 10,500 (1:N) (Standard)
- Card Capacity: 10,000 (1:N) (Standard)
- Fingerprint Template Capacity: 500 (1:N) (Standard)
- Max. User Password Length: Support 4 to 10 Digit number (Factory Default: 4 digits)
عام
| الموديل | X100 |
|---|
Key Features
- Authentication Method: Fingerprint / Card / PIN Code (Physical Touch Keypad)
- User Capacity: 10,500 (1:N) (Standard)
- Card Capacity: 10,000 (1:N) (Standard)
- Fingerprint Template Capacity: 500 (1:N) (Standard)
- Max. User Password Length: Support 4 to 10 Digit number (Factory Default: 4 digits)
- Biometric Verification Speed: Less than 0.3 sec (Fingerprint)
Best Fit Applications
Offices, companies, factories, schools, hospitals, residential buildings and server rooms.
Technical Specifications
| Model | X100 |
|---|---|
| Authentication Method | Fingerprint / Card / PIN Code (Physical Touch Keypad) |
| User Capacity | 10,500 (1:N) (Standard) |
| Card Capacity | 10,000 (1:N) (Standard) |
| Fingerprint Template Capacity | 500 (1:N) (Standard) |
| Max. User Password Length | Support 4 to 10 Digit number (Factory Default: 4 digits) |
| Biometric Verification Speed | Less than 0.3 sec (Fingerprint) |
| False Acceptance Rate (FAR) % | FAR ≤ 0.0001% |
| False Rejection Rate (FRR) % | FRR ≤ 0.01% |
| Card Type | ID Card @125 kHz (Standard) / IC Card @13.56 MHz (Optional) |
| Communication | Wiegand (26-44bits Input / Output)*1 / Electric Lock*1, Door Sensor*1, Exit Button*1, Doorbell*1 |
| Standard Functions | Access Control, Buzzer, Multiple Verification Methods, / Orange: Programming / Green: Verification successful / Red: Standby, Verification Fail 3 Beeps / Operation Error: 3 Beeps; No Indicator |
| Power Supply | DC 12V 0.15A |
| Operating Temperature | -25°C to 60°C |
| Operating Humidity | 10% to 90% RH (Non-condensing) |
| Dimensions | 140mm * 45mm * 15mm (L*W*H) |
| Net Weight | 0.105 Kg |
| Installation | Wall-mount |
| Housing Material | ABS |
| Ingress Protection Rating | IP66 (waterproof and dustproof ) |
