كود المنتج:
Saturn-F1200

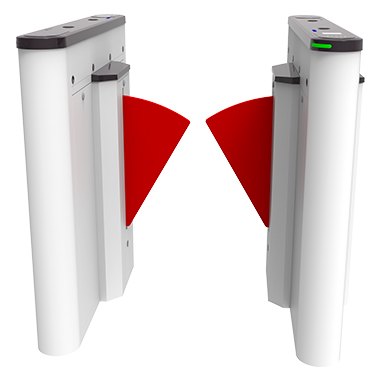

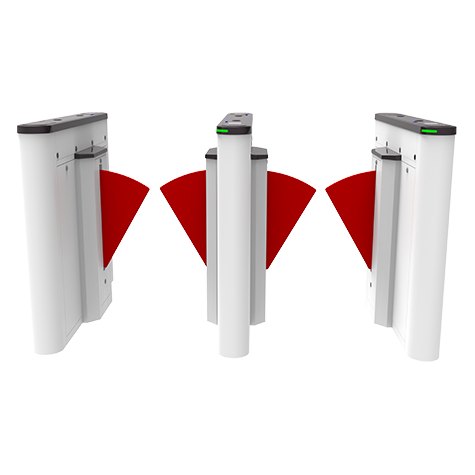

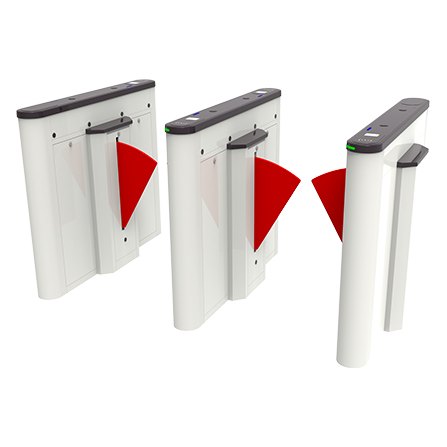

ZKTeco Saturn-F1200 Flap Barrier Turnstile (additional lane)
ZKTeco Saturn-F1200 Flap Barrier Turnstile (additional lane) من منتجات بوابة مرور أفراد. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
A ZKTeco pedestrian turnstile for fast, controlled entry with card, QR, fingerprint or face authentication.
- Audio Indicator: Speaker
- Lane Type: Dual flap barriers for additional lane (with Saturn-F1000)
- Lane Width: 550 mm
- Lane Height: 1020 mm
- Barrier Movement Type: Retractable flap barrier (Polycarbonate)
عام
| الموديل | Saturn-F1200 |
|---|
Key Features
- Audio Indicator: Speaker
- Lane Type: Dual flap barriers for additional lane (with Saturn-F1000)
- Lane Width: 550 mm
- Lane Height: 1020 mm
- Barrier Movement Type: Retractable flap barrier (Polycarbonate)
- Motor: DC brushless motor
Best Fit Applications
Office buildings, metro stations, universities, gyms, factories and lobbies.
Technical Specifications
| Model | Saturn-F1200 |
|---|---|
| Audio Indicator | Speaker |
| Visual Indicator | LED Indicators / Steady blue = Standby, Steady green = Normal use / Steady red = Barrier close |
| Lane Type | Dual flap barriers for additional lane (with Saturn-F1000) |
| Lane Width | 550 mm |
| Lane Height | 1020 mm |
| Barrier Movement Type | Retractable flap barrier (Polycarbonate) |
| Motor | DC brushless motor |
| Movement Speed | Less than 1s per movement (open / close timing) |
| Cabinet Lid Material | Cold-rolled SPCC Steel (GB700) |
| Lid Material | Polycarbonate+2.5D tempered glass |
| IR Sensors | 5 pairs |
| Motherboard Function | System configuration, access mode con guration, anti-pinch configuration, anti-tailgate configuration etc. |
| Motherboard Communication | Fire alarm Port(Relay)*1, RS485 Port*1 |
| Lid Options Authentication Methods | Streamlined under mount options: RFID / QR Code / Top mount options with mounting pole: Facial Recognition / (compatible with ProFace X / SpeedFace V5L / Elite Pass) |
| Chassis Material | Cold-rolled SPCC Steel (GB700 |
| Chassis Colour | White |
| Controller | C3, InBio series or or third-party devices |
| Credential Options | Under mount RFID reader: (support model: ProID Series) / Under mount QR Code Reader: QR500 / ProFaceX/ Elite Pass/ SpeedFace V5L |
| Flow Rate | RFID: 30 passengers per minute / QR Code: 30 passengers per minute / Facial Recognition: 15 passengers per minute |
| Accessibility | Standard lane (550mm): Adult and children |
| Power Supply | 110V / 220VAC @ 50-60 Hz |
| Power Rating | 10VA (Standby), 40VA (Operation) |
| Fire Signal | Input for voltage free contact |
| Noise Level | Less than 60dB |
| MTTR | Less than 60minutes |
| MCBF | 5 million |
| Weight | Gross weight (35kg); Net weight (30kg) |
| Dimensions ( L*W*H ) | 1200 * 306 * 1020mm |
| Dimensions with Packing ( L*W*H ) | 1345 * 360 * 1100mm |
