كود المنتج:
FBL520

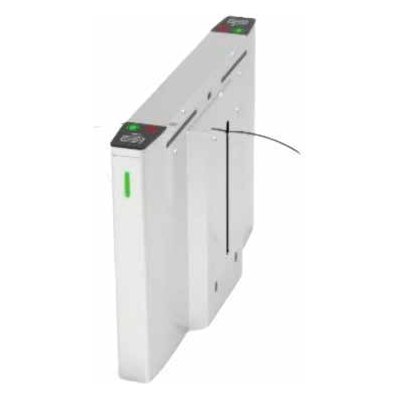

ZKTeco FBL520 Dual Lane Flap Barrier Turnstile (additional lane for FBL500)
ZKTeco FBL520 Dual Lane Flap Barrier Turnstile (additional lane for FBL500) من منتجات بوابة مرور أفراد. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
FBL520 is a dual-lane flap barrier turnstile for high-traffic areas; it joins additional FBL520 units to form multiple lanes and connects to FBL500.
- Power Requirements: AC 100~120V / 200~240V, 50/60Hz
- Working Temperature: -20°C to 70°C
- Working Humidity: 5% to 90% (non-condensing)
- Working Environment: Indoor / Outdoor (if sheltered)
- Max. Speed of Throughput: 30 people per minute
عام
| الموديل | FBL520 |
|---|
Key Features
- Power Requirements: AC 100~120V / 200~240V, 50/60Hz
- Working Temperature: -20°C to 70°C
- Working Humidity: 5% to 90% (non-condensing)
- Working Environment: Indoor / Outdoor (if sheltered)
- Max. Speed of Throughput: 30 people per minute
- Lane Width: 600 mm
Best Fit Applications
Office buildings, metro stations, universities, gyms, factories and lobbies.
Technical Specifications
| Model | FBL520 |
|---|---|
| Power Requirements | AC 100~120V / 200~240V, 50/60Hz |
| Working Temperature | -20°C to 70°C |
| Working Humidity | 5% to 90% (non-condensing) |
| Working Environment | Indoor / Outdoor (if sheltered) |
| Max. Speed of Throughput | 30 people per minute |
| Lane Width | 600 mm |
| Dimension (L*W*H) | 1360 * 280 * 980 mm |
| Cabinet / Lid Material | SUS304 Stainless Steel |
| Barrier Material | Acrylic |
| Barrier Movement | Retracting |
| Emergency Mode | Support (barriers retract on emergency / power outage with battery) |
| MCBF | 2 million |
| Opening Time | 0.8 s |
| Opening Noise | < 30 dB |
