كود المنتج:
Saturn-S2000

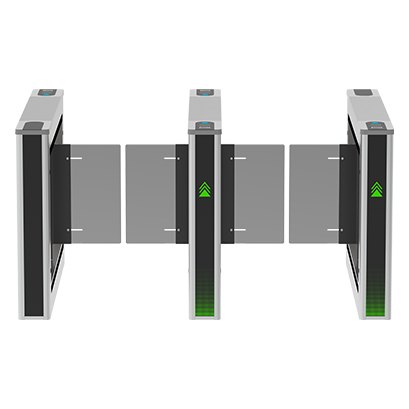

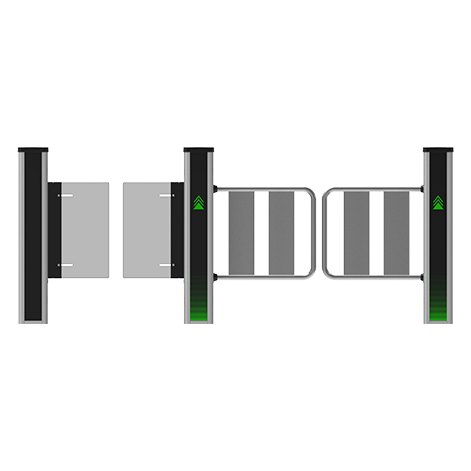

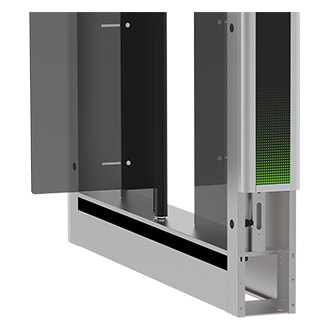

ZKTeco Saturn-S2000 Swing Barrier Turnstile (single lane, master)
ZKTeco Saturn-S2000 Swing Barrier Turnstile (single lane, master) من منتجات بوابة مرور أفراد. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
A ZKTeco pedestrian turnstile for fast, controlled entry with card, QR, fingerprint or face authentication.
- Audio Indicator: Internal speaker
- Lane Type: Single lane
- Barrier Movement Type: Swing
- Motor: DC brushless motor
- Movement Speed: Average 1s per movement (Adjustable open/close timing)
عام
| الموديل | Saturn-S2000 |
|---|
Key Features
- Audio Indicator: Internal speaker
- Lane Type: Single lane
- Barrier Movement Type: Swing
- Motor: DC brushless motor
- Movement Speed: Average 1s per movement (Adjustable open/close timing)
- Clutch: Equipped
Best Fit Applications
Office buildings, metro stations, universities, gyms, factories and lobbies.
Technical Specifications
| Model | Saturn-S2000 |
|---|---|
| Audio Indicator | Internal speaker |
| Visual Indicator | Blue=Door closed/stand by / Green=Door opening / Red=Door closing/alarm / Green=Lane available / Red=Lane unavailable |
| Lane Type | Single lane |
| Lane Width | 600~900mm (Optional) (Acrylic) / Maximum 1200mm (Optional) (Stainless steel) (For two-wheeled motorcycle access) |
| Barrier Movement Type | Swing |
| Motor | DC brushless motor |
| Movement Speed | Average 1s per movement (Adjustable open/close timing) |
| Clutch | Equipped |
| Movement Accuracy | Middle |
| Lid Material | Stainless steel & Polycarbonate |
| Lid Options Authentication Methods | Streamlined under mount options: QR Code / RFID / Surface mount option: Facial Authentication |
| Chassis Material | Stainless steel (SUS304) (Chassis Body) / Aluminum Alloy (Gate Column) |
| Chassis Colour | Gray (Standard) |
| Barrier Material | Light gray transparent acrylic (305*555*10mm) (standard) /Light gray transparent acrylic (380*555*10mm) (optional) When the lane width is 900-1200mm, stainless steel barriers are required. |
| IR Sensors | 12 pairs (standard) ;18 pairs (Optional) |
| Motherboard Function | System configuration, access control |
| Motherboard Communication | Fire alarm port (relay)*1, RS485 port*1 |
| Controller | Compatible with C3 / InBio Series or 3rd-party controller |
| Credential Options | Under mount RFID reader: (support model: Pro ID Series, KR Series) / Under mount fingerprint reader: FR1200 / FR1500S |
| Flow Rate | Facial Authentication: 15 passengers per minute / QR Code: 30 passengers per minute / RFID: 35 passengers per minute |
| Accessibility | Adult, children (with care), Disability (with care) |
| Power Supply | 110V / 220V ±10% AC @50Hz/60Hz |
| Power Rating | 20VA (Standby) / 40VA (Operation) |
| Fire Signal | Input for voltage free contact |
| Noise Level | Less than 60dB |
| MTTR | Less than 60 minutes |
| MCBF | 5 million |
| Weight | 100Kg (Net weight); 140Kg (Gross weight) |
| Dimension (L*W*H) | 1500*180*1020mm |
