كود المنتج:
Saturn-S1200

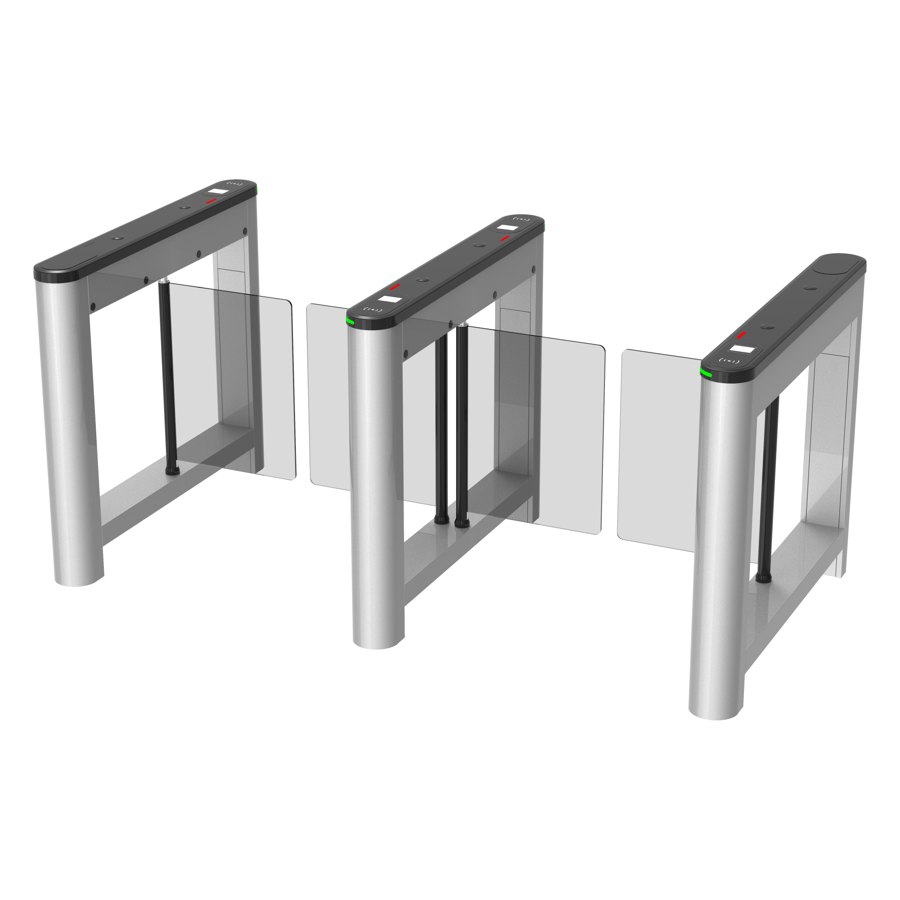

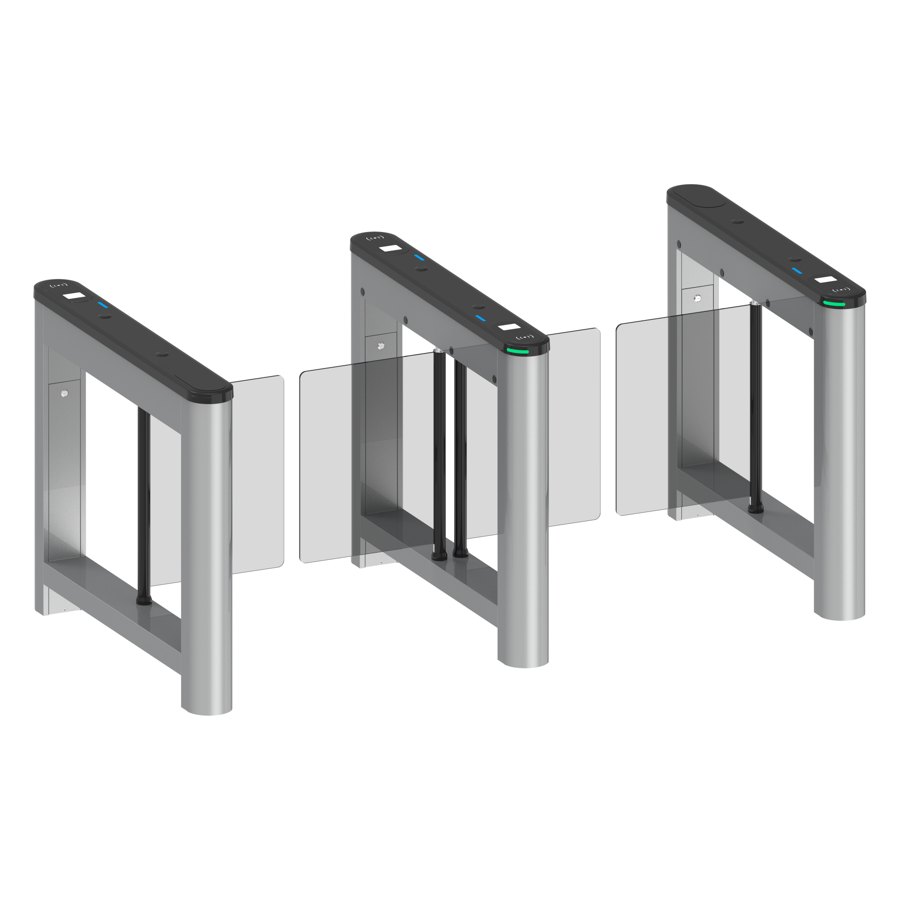

ZKTeco Saturn-S1200 Swing Barrier Turnstile (dual swing, additional lane)
ZKTeco Saturn-S1200 Swing Barrier Turnstile (dual swing, additional lane) من منتجات بوابة مرور أفراد. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
A ZKTeco pedestrian turnstile for fast, controlled entry with card, QR, fingerprint or face authentication.
- Audio Indicator: Internal speaker
- Lane Type: Dual Swing (for additional lane)
- Lane Width: 650mm (Standard) / 900mm (Optional)
- Barrier Movement Type: Swing
- Motor: DC brushless motor
عام
| الموديل | Saturn-S1200 |
|---|
Key Features
- Audio Indicator: Internal speaker
- Lane Type: Dual Swing (for additional lane)
- Lane Width: 650mm (Standard) / 900mm (Optional)
- Barrier Movement Type: Swing
- Motor: DC brushless motor
- Movement Speed: Average 1s per movement (Adjustable open/close timing)
Best Fit Applications
Office buildings, metro stations, universities, gyms, factories and lobbies.
Technical Specifications
| Model | Saturn-S1200 |
|---|---|
| Audio Indicator | Internal speaker |
| Visual Indicator | Blue = Door closed / stand by / Green = Door opening / Red = Door closing / alarm / Green = Lane available / Red = Lane unavailable |
| Lane Type | Dual Swing (for additional lane) |
| Lane Width | 650mm (Standard) / 900mm (Optional) |
| Barrier Movement Type | Swing |
| Motor | DC brushless motor |
| Movement Speed | Average 1s per movement (Adjustable open/close timing) |
| Lid Material | Polycarbonate+2.5D tempered glass |
| Lid Options Authentication Methods | Streamlined under mount options: QR Code / RFID / Surface mount option: Facial Authentication |
| Chassis Material | Cold-rolled SPCC Steel (GB700) / Polycarbonate (Side Lid) |
| Chassis Colour | Pearl White(PWH), Space Gray(SGY), Carbon Black(CBK), Bay Blue(BBLE), Mist Brown(MBW) |
| Barrier Material | Clear acrylic (635*300mm)(standard) / Tempered glass (635*425mm)(optional) |
| IR Sensors | 4 pairs |
| Motherboard Function | System configuration, access control |
| Motherboard Communication | Fire alarm port (relay)*1, RS485 port*1 |
| Controller | Not equipped, allowing optional from C3 / InBio Series series or customization |
| Credential Options | Under mount RFID reader: (support model: Pro ID Series, KR Series) / Under mount fingerprint reader: FR1200 / FR1500S |
| Flow Rate | Facial Authentication: 15 passengers per minute / QR Code: 30 passengers per minute / RFID: 35 passengers per minute |
| Accessibility | Adult, Children (with care), Disability (with care) |
| Power Supply | 110V / 220V ±10% AC @50Hz/60Hz |
| Power Rating | 10VA(Standby) / 40VA(Operation) |
| Fire Signal | Input for voltage free contact |
| Noise Level | Less than 60dB |
| MTTR | Less than 60 minutes |
| MCBF | 3 million |
| Weight | 30kg |
| Dimension (L*W*H) | 1200 * 150 * 1020 mm |
| Dimensions with Packing ( L*W*H ) | Carton (standard): 1265*220*1070mm (1 box) / Wooden box (optional): 1300*260*1224mm (1 box) |
| Operating Temperature | -30 °C to 70 °C |
