Product Code:
DH-IPC-PT2449C1-S-PV-PRO

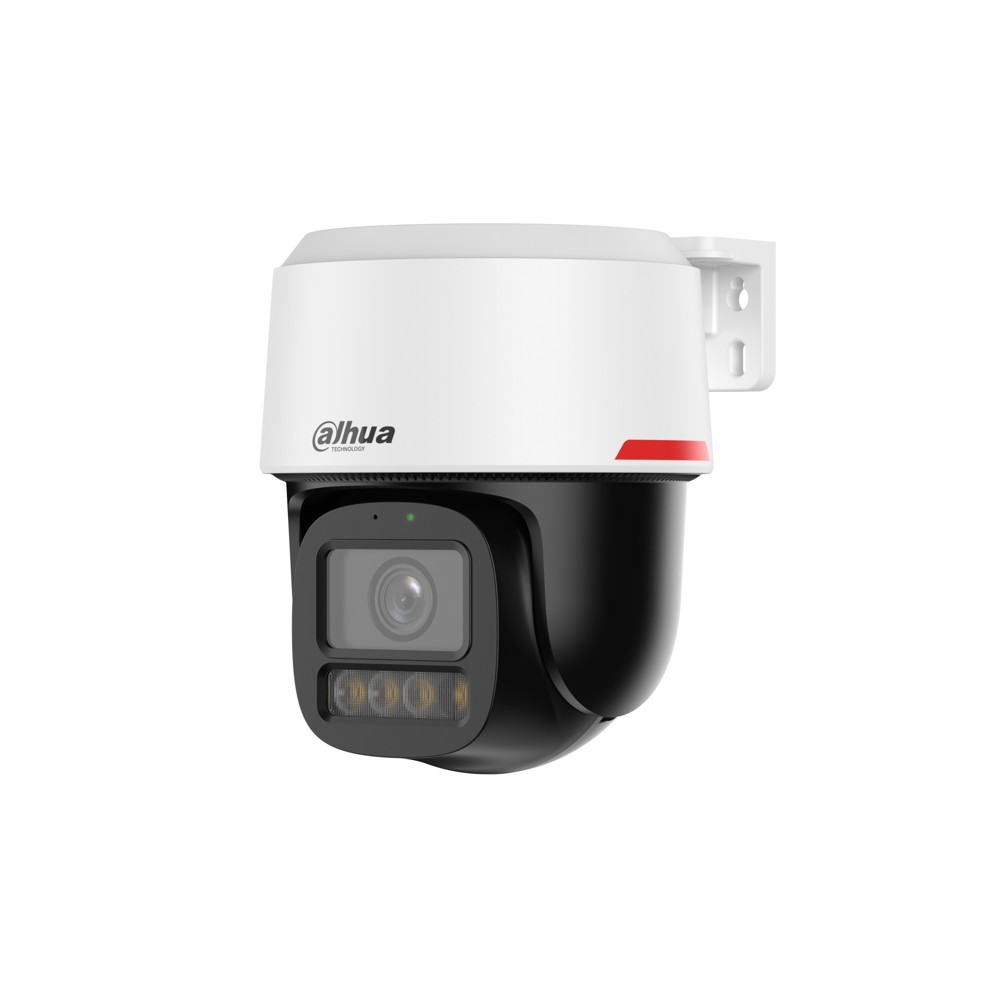

Dahua DH-IPC-PT2449C1-S-PV-PRO 4MP WizColor Active Deterrence WizSense Network PT Camera
Dahua DH-IPC-PT2449C1-S-PV-PRO 4MP WizColor Active Deterrence WizSense Network PT Camera is a PTZ Camera product. Review its technical specifications and product data to select the right solution from Do Link Egypt.
Dahua DH-IPC-PT2449C1-S-PV-PRO: 4MP WizColor Active Deterrence WizSense Network PT Camera. F1.0 Large Aperture Captures Bright Low-Light Images.
- F1.0 Large Aperture Captures Bright Low-Light Images
- 1/1.8" 4MP CMOS Sensor Delivers High-Resolution
- WizColor Technology Enables 24/7 Full-Color Recording
- Preset Patrol Function Automates Multi-Position Monitoring
- Auto Tracking Lite Provides Intelligent Target Following
General
| Model | DH-IPC-PT2449C1-S-PV-PRO |
|---|
Key Features
- F1.0 Large Aperture Captures Bright Low-Light Images
- 1/1.8" 4MP CMOS Sensor Delivers High-Resolution
- WizColor Technology Enables 24/7 Full-Color Recording
- Preset Patrol Function Automates Multi-Position Monitoring
- Auto Tracking Lite Provides Intelligent Target Following
- Two-Way Talk Supports Real-Time Communication Feature
Best Fit Applications
Parking lots, building perimeters, yards and large outdoor areas.
Technical Specifications
| Brand | Dahua |
|---|---|
| Model | DH-IPC-PT2449C1-S-PV-PRO |
| Type | 4MP WizColor Active Deterrence WizSense Network PT Camera |
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 2688 (H) × 1520 (V) |
| Focal Length | 3.6 mm |
| Max. Aperture | F1.0 |
| Field of View | 3.6 mm: H: 97°; V: 52°; D: 114° |
| Illumination Distance | 3.6 mm: 30 m (98.43 ft) (Warm light) |
| Network Port | RJ-45 (10/100 Base-T) |
| Video Compression | Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1) |
| Storage | Micro SD card (Up to 512 GB); FTP |
| Pan/Tilt Range | Pan: 0° to 345°; Tilt: 0° to 90° |
| Protection | IP66;TVS 2000 V lightning proof; surge protection; voltage transient protection |
| Power Supply | 12 VDC, 1A ± 10% PoE (802.3af) |
| Power Consumption | PoE: Basic: 3.6 W Max: 9.5 W (illuminator + PTZ) |
| Operating Temperature | –30 °C to +55 °C (–22 °F to +131 °F) |
| Product Dimensions | 153.5 mm × Φ129.3 mm (6.04" × Φ5.09") |
| Net Weight | 0.8kg (1.76 lb) |
