DVRs

Hikvision 16 CH 1080P Lite Mini 1U H.265 DVR Audio Via Coaxial Cable

Model DS-7116HGHI-K1
  1. All Products
  2. All Products
  3. Hikvision 16 CH 1080P Lite Mini 1U H.265 DVR Audio Via Coaxial Cable
End User
Product Code: DS-7116HGHI-K1
Hikvision

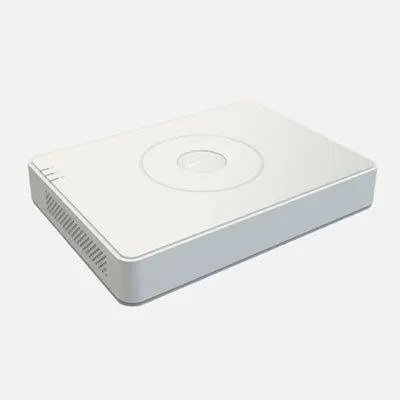

Hikvision 16 CH 1080P Lite Mini 1U H.265 DVR Audio Via Coaxial Cable

Hikvision 16 CH 1080P Lite Mini 1U H.265 DVR Audio Via Coaxial Cable (DS-7116HGHI-K1) is a Digital Video Recorder product. Review its technical specifications and product data to select the right solution from Do Link Egypt.

https://dolinkegypt.com/web/image/product.template/446/image_1920?unique=ab53d55
DS-7116HGHI-K1

  • Deep learning based human and vehicle targets classification of Motion Detection 2.0
  • H.265 Pro+/H.265 Pro/H.265 video compression
  • HDTVI/AHD/CVI/CVBS/IP video input
  • Audio via coaxial cable
  • Up to 18-ch IP camera inputs (up to 5 MP)
  • Up to 1080p Lite@15 fps encoding capability
  • Max. 1200 m for 720p HDTVI signal

This combination does not exist.

  • DVRs
  • 1-Year Warranty From purchase date
  • Technical Support Before and after sale
  • Fast Delivery All over Egypt
  • Secure Payment Cash on delivery or in branch
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

General
Model DS-7116HGHI-K1

Technical Specifications

ModelDS-7116HGHI-K1
Motion Detection 2.0
Human/Vehicle AnalysisDeep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights / Quick search by object or event type is supported
Video and Audio
IP Video Input2-ch (up to 18-ch) Up to 5 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input1080p25, 1080p30, 720p25, 720p30
AHD Input1080p25, 1080p30, 720p25, 720p30
HDCVI Input1080p25, 1080p30, 720p25, 720p30
CVBS InputPAL/NTSC
HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output ModeHDMI/VGA simultaneous output
Audio Input1-ch RCA (2.0 Vp-p, 1 KΩ), and 16-ch via coaxial cable
Audio Output1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous Playback16-ch
Recording
Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding ResolutionFor 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF For 720p stream access: 720p/WD1/4CIF/VGA/CIF For standard definition stream access: WD1/4CIF/VGA/CIF
Frame RateMain stream: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: For 1080p and 720p stream access CIF/QVGA@15 fps For SD stream access:
Video Bitrate32 Kbps to 4 Mbps
Dual-streamSupport
Stream TypeVideo, Video & Audio
Audio CompressionG.711u
Audio Bitrate64 Kbps
Network
Total Bandwidth96 Mbps
Remote Connection128
Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, UPnP™, HTTPS, ONVIF
Network Interface1, RJ45 10M/100M self-adaptive Ethernet interface
Auxiliary Interface
SATA1, SATA interface
CapacityUp to 10 TB capacity for each disk
USB Interface2 × USB 2.0
General
Power Supply12 VDC, 1.6 A
Consumption≤ 7 W (without HDD)
Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity10% to 90%
Dimension (W × D × H)285 × 210 × 45 mm (11.2 × 8.3 × 1.8 inch)
