Product Code:
DS-2CE10DF0T-PF

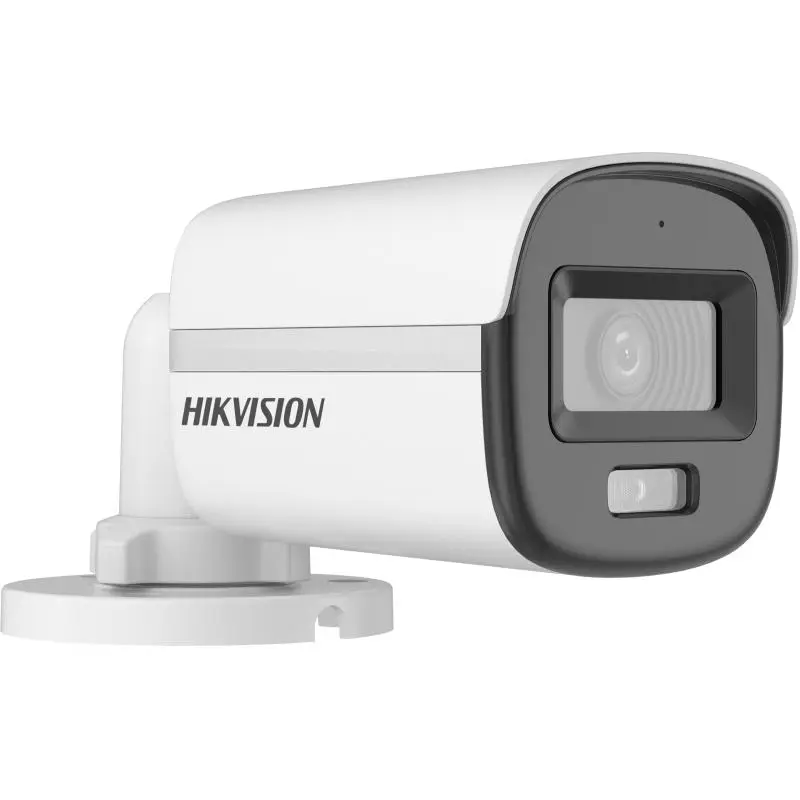

Hikvision 2 MP ColorVu Fixed Mini Bullet Camera 24/7 Color
Hikvision 2 MP ColorVu Fixed Mini Bullet Camera 24/7 Color (DS-2CE10DF0T-PF) is a Analog HD Camera product. Review its technical specifications and product data to select the right solution from Do Link Egypt.
DS-2CE10DF0T-PF
- High quality imaging with 2 MP, 1920 × 1080 resolution
- 24/7 color imaging with F1.0 aperture
- 3D DNR technology delivers clean and sharp images
- 2.8 mm, 3.6 mm, 6 mm fixed focal lens
- Up to 20 m white light distance for bright night imaging
- One port for four switchable signals (TVI/AHD/CVI/CVBS)
- Water and dust resistant (IP67)
HD Cameras
General
| Model | DS-2CE10DF0T-PF |
|---|
Technical Specifications
| Model | DS-2CE10DF0T-PF |
| Camera | |
| Image Sensor | 2 MP CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Min. Illumination | 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Shutter Time | PAL: 1/25 s to 1/50,000 s / NTSC: 1/30 s to 1/50,000 s |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° |
| Signal System | PAL/NTSC |
| Lens | |
| Lens Type | 2.8 mm, 3.6 mm, 6 mm fixed focal lens |
| Focal Length & FOV | 2.8 mm, horizontal FOV: 98°, vertical FOV: 51°, diagonal FOV: 115° 3.6 mm, horizontal FOV: 76°, vertical FOV: 41°, diagonal FOV: 90° 6 mm, horizontal FOV: 50°, vertical FOV: 27°, diagonal FOV: 58° |
| Lens Mount | M12 |
| Illuminator | |
| Supplement Light Type | White Light |
| Supplement Light Range | White Light Distance: Up to 20 m |
| Smart Supplement Light | Yes |
| Image | |
| Image Parameters Switch | STD/HIGH-SAT/HIGHLIGHT |
| Image Settings | Brightness / Mirror / Sharpness / Anti-Banding / AGC |
| Frame Rate | TVI: 1080p@25fps/30fps CVI: 1080p@25fps/30fps AHD: 1080p@25fps/30fps CVBS: PAL/NTSC |
| Day/Night Mode | Color |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image Enhancement | BLC / HLC / Global |
| Noise Reduction | 3D DNR/2D DNR |
| White Balance | Auto/Manual |
| Interface | |
| Video Output | Switchable TVI/AHD/CVI/CVBS |
| Alarm | Solid Light Alarm (White Light) |
| General | |
| Power | 12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera. Max. 2.4 W |
| Material | Plastic |
| Dimension | 161.1 mm × 70 mm × 70 mm (6.34" × 2.76" × 2.76") |
| Operating Condition | -40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing) |
| Communication | HIKVISION-C |
