Product Code:
DS-1LN6-UU
Hikvision
Hikvision (DS-1LN6-UU) is a Network Cable product. Review its technical specifications and product data to select the right solution from Do Link Egypt.
DS-1LN6-UU
- Full diameter 305 m CAT6 network cable
- Core diameter: 0.565mm
- Excellent transmission performance using solid copper
- Quality verified by Fluke test
- Guaranteed long PoE transmission distance
- Great PVC flame resistance.
General
| Model | DS-1LN6-UU |
|---|
Technical Specifications
| Model | DS-1LN6-UU |
| General | |
| Core Color | 1 White- Blue /Blue 2 White-Orange /Orange,3 White-Green /Green 4 White- Brown /Brown, |
| Packing | Wooden Tray & Carton |
| Carton Dimension | Per request |
| Packing length | 305±1.5m |
| Rip-cord | Yes |
| Drain wire | No |
| Sheath Physical Properties | Before Aging Tensile Strength (Mpa) ≥13.5, Elongation(%) ≥150,Aging Period (℃×hrs) 100℃×24h×10d,After Aging Tensile Strength(Mpa) ≥12.5, Elongation(%) ≥125,Cold bend(-20±2℃×4h) 8×Cable O.D.，No visible cracks, |
| Electrical Characteristics (20℃) | 1.0-250.0MHz Impedance ((Ω) 100±15,1.0-250.0MHz Delay Skew (ns/100m) ≤45,DC Resistance (Ω/100m) max 9.38,DC Conductor Resistance Unbalance (%) max 5.0, |
| Conductor | |
| Material | Solid-Bare Copper,Content 99.95%, |
| Nom.O.D.(mm) | 0.565±0.005 |
| Insulation | |
| Material | HDPE |
| Diameter | 1.02±0.05mm |
| Sheath | |
| Thickness | 0.55±0.05 mm |
| External O.D. | 6.2±0.4 mm |
| Surface | Clean,Frap,Satiation |
| Material | PVC(complies RoHS),CM |
| Color | Orange RAL2003 |
| Surface Printing | |
| Letter height | 3.0±0.3mm |
| Color | Black |
| Print error & Space | ≤±0.5%，1m |
![[NC-1LN6UU-CCA] Hikvision NC-1LN6UU-CCA CAT6 U-UTP 305M](/web/image/product.template/1018/image_512)
![[DS-1LN6OUSPE] Hikvision DS-1LN6OUSPE CAT6 U/UTP Outdoor Network Cable (Solid Copper, 0.55mm)](/web/image/product.template/5894/image_512)

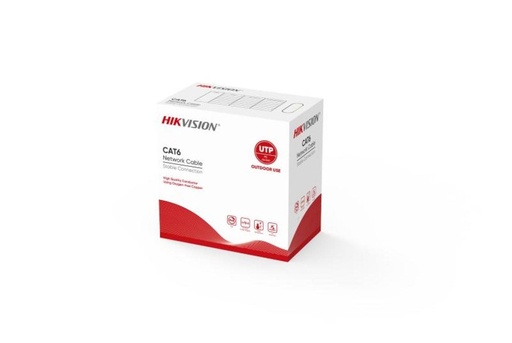

![[DS-1LN6OUTPE] Hikvision DS-1LN6OUTPE CAT6 outdoor U/UTP Network Cable (Solid Copper, 0.51mm)](/web/image/product.template/5891/image_512)

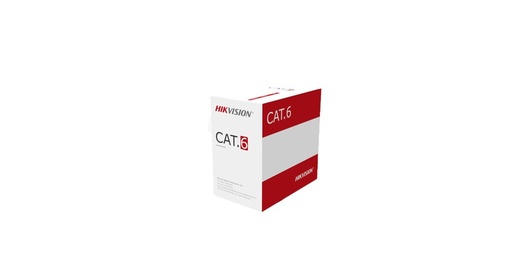

![[DS-1LN6U-W/CCA] Hikvision DS-1LN6U-W/CCA 305 m CAT6 UTP Network Cable (CCA,0.565 mm)](/web/image/product.template/5890/image_512)
![[DS-1LN6UEL5] Hikvision DS-1LN6UEL5 U/UTP LSZH Cat 6 CPR-eca](/web/image/product.template/5892/image_512)

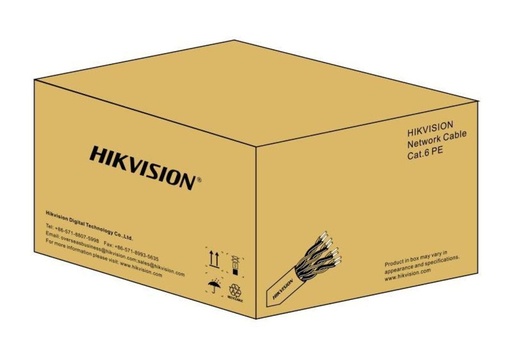

![[DS-1LN6USL5] Hikvision DS-1LN6USL5 U/UTP LSZH Cat 6 CPR-eca](/web/image/product.template/5893/image_512)

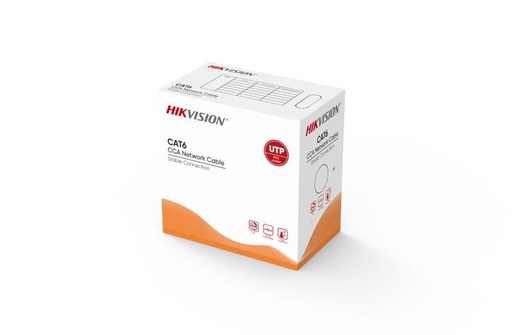

![[DS-1LN6UU/CCA] Hikvision DS-1LN6UU/CCA CAT6 U/UTP Network Cable (CCA, 0.57mm)](/web/image/product.template/5889/image_512)
