Product Code:
DS-3T0506HP-E/HS

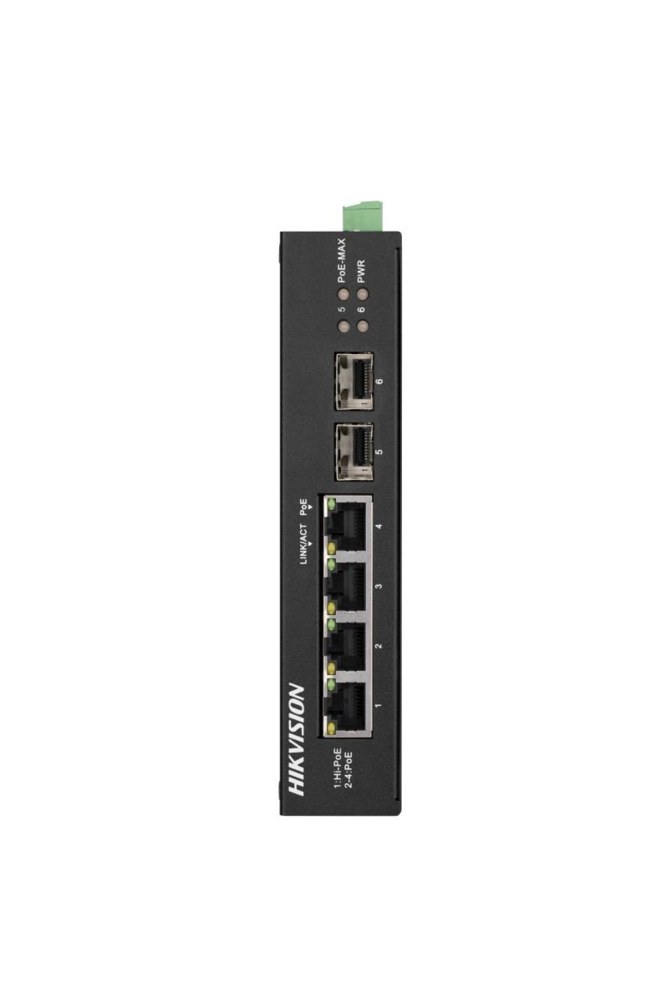

Hikvision DS-3T0506HP-E/HS 4 Port Gigabit Unmanaged Harsh POE Switch
Hikvision DS-3T0506HP-E/HS 4 Port Gigabit Unmanaged Harsh POE Switch is a Network Switch product. Review its technical specifications and product data to select the right solution from Do Link Egypt.
سويتش PoE غير مُدار بـ 4 منافذ جيجابت للبيئات القاسية DS-3T0506HP-E/HS من Hikvision. 3 منافذ جيجابت PoE ومنفذ جيجابت Hi-PoE ومنفذا ألياف جيجابت SFP.
- 3 منافذ جيجابت PoE ومنفذ جيجابت Hi-PoE ومنفذا ألياف جيجابت SFP
- معيار IEEE 802.3at/af/bt لمنفذ Hi-PoE (بحد أقصى 60 واط)
- معيار IEEE 802.3at/af لمنافذ PoE (بحد أقصى 30 واط)
- معايير IEEE 802.3 و IEEE 802.3u و IEEE 802.3x و IEEE 802.3z و IEEE 802.3ab
- حماية من الصواعق بقدرة 6 kV لمنافذ PoE
General
| Model | DS-3T0506HP-E/HS |
|---|
Key Features
- 3 × gigabit PoE port, 1 × gigabit Hi-PoE port, 2 × gigabit SFP fiber optical port.
- IEEE 802.3at/af/bt standard for Hi-PoE port (Max. 60 W PoE output).
- IEEE 802.3at/af standard for PoE ports (Max. 30 W PoE output).
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab standard.
- 6 kV surge protection for PoE ports.
- Up to 300 m long-range transmission.
Best Fit Applications
CCTV systems and office / home networks.
Technical Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-3T0506HP-E/HS |
| Type | 4 Port Gigabit Unmanaged Harsh POE Switch |
| Category | Network Switches |
