Product Code:
DS-QAZ1MP7G1/EU

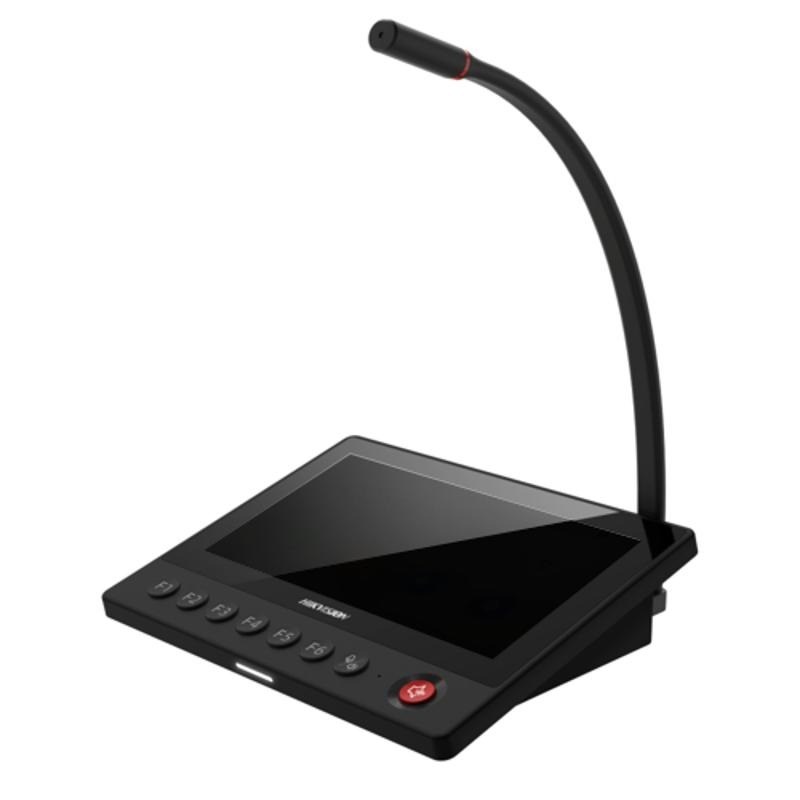

Hikvision DS-QAZ1MP7G1/EU 7-inch paging microphone
Hikvision DS-QAZ1MP7G1/EU 7-inch paging microphone is a Microphone product. Review its technical specifications and product data to select the right solution from Do Link Egypt.
ميكروفون نداء بشاشة 7 بوصة DS-QAZ1MP7G1/EU من Hikvision. شاشة لمس IPS ملونة مقاس 7 بوصة بدقة 1024 × 600.
- شاشة لمس IPS ملونة مقاس 7 بوصة بدقة 1024 × 600
- يدعم البث المباشر والتحدث وتشغيل ملفات مكتبة الوسائط على مناطق أو أجهزة محددة
- يمكن اختيار جهاز واحد أو أكثر، وتعيين مفاتيح اختصار للبث حتى 6 اختصارات (F1 إلى F6)
- دخل صوت لميكروفون بعنق مرن عبر قناة واحدة، ودخل صوت 3.5 مم رباعي الأطراف عبر قناة واحدة
- خرج صوت لسماعة محلية عبر قناة واحدة، وخرج صوت 3.5 مم عبر قناة واحدة
General
| Model | DS-QAZ1MP7G1/EU |
|---|
Key Features
- 7-inch color IPS touch screen, resolution: 1024 × 600
- Support real-time broadcasting, speaking, or playing media library files on specified partitions or terminals
- One or more terminals can be selected, and shortcut keys can be set to broadcast, up to 6 shortcut options (F1 to F6) can be defined
- 1-channel gooseneck microphone audio input, 1-channel 4-segment 3.5 mm audio input
- 1-channel local speaker audio output, 1-channel 3.5 mm audio output
- Support logging in through an account and password
Best Fit Applications
Public address and background music in malls, schools, mosques, hotels and offices.
Technical Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-QAZ1MP7G1/EU |
| Type | 7-inch paging microphone |
| Category | Sound System |
